MS3106A16 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLUG MALE 2P SILV SLDR CUP

Part	Qualification	Mounting Type	Fastening Type	Backshell Material	Plating	Shell Material	Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Shell Finish	Insert Material	Number of Positions	Orientation	Connector Type	Shell Size - Insert Length	Shell Size - Insert Width	Primary Material	Termination	Shielding	Color	Applications	Features	Shell Size - Insert
Amphenol Aerospace Operations MS3106A16-11P	MIL-DTL-5015	Free Hanging (In-Line)	Threaded	Aluminum Alloy	Olive Drab Chromate over Cadmium	Aluminum Alloy	Copper Alloy	125 °C	-55 °C	Silver	Cadmium Olive Drab Chromate	Neoprene	2	N (Normal)	Male Pins Plug	16 mm	11 mm	Metal	Solder Cup	Unshielded	Olive Drab	Marine Military	Backshell Coupling Nut
Amphenol Aerospace Operations MS3106A16-12P
Amphenol Aerospace Operations MS3106A16-7S

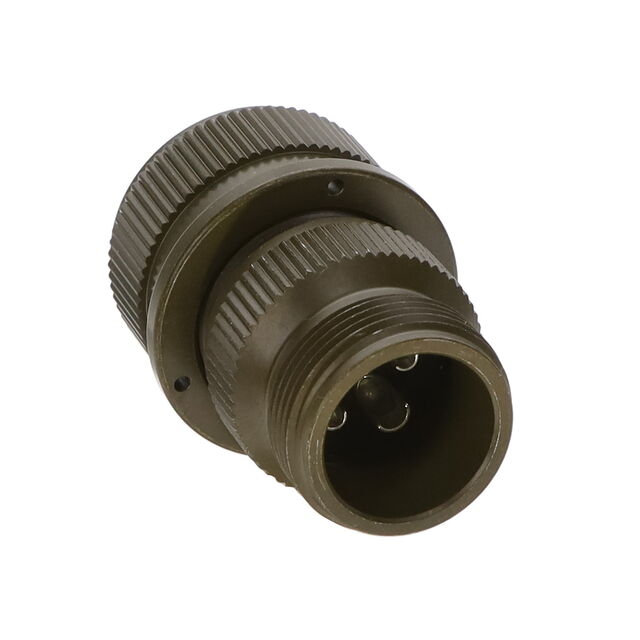

Amphenol Aerospace Operations MS3106A16-9P	MIL-DTL-5015	Free Hanging (In-Line)	Threaded	Aluminum Alloy	Olive Drab Chromate over Cadmium	Aluminum Alloy	Copper Alloy	125 °C	-55 °C	Silver	Cadmium Olive Drab Chromate	Neoprene	4	N (Normal)	Male Pins Plug	16 mm	9 mm	Metal	Solder Cup	Unshielded	Olive Drab	Marine Military	Backshell Coupling Nut

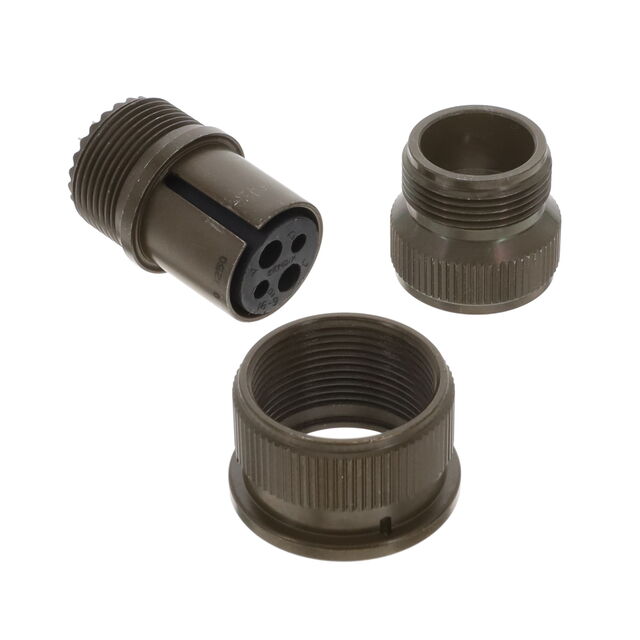

Amphenol Aerospace Operations MS3106A16-9S	MIL-DTL-5015	Free Hanging (In-Line)	Threaded	Aluminum Alloy	Olive Drab Chromate over Cadmium	Aluminum Alloy	Copper Alloy	125 °C	-55 °C	Silver	Cadmium Olive Drab Chromate	Neoprene	4	N (Normal)	Female Sockets Plug	16 mm	9 mm	Metal	Solder Cup	Unshielded	Olive Drab	Marine Military	Backshell Coupling Nut
Amphenol Aerospace Operations MS3106A16-13S
Amphenol Aerospace Operations MS3106A16S-1SW-RES
Amphenol Aerospace Operations MS3106A16S-5SY	MIL-DTL-5015	Free Hanging (In-Line)	Threaded	Aluminum Alloy	Olive Drab Chromate over Cadmium	Aluminum Alloy	Copper Alloy	125 °C	-55 °C	Silver	Cadmium Olive Drab Chromate	Neoprene	3	Y	Female Sockets Plug			Metal	Solder Cup	Unshielded	Olive Drab	Marine Military	Backshell Coupling Nut	16S-5
Amphenol Aerospace Operations MS3106A16S-4P-RES
Amphenol Aerospace Operations MS3106A16-10S	MIL-DTL-5015	Free Hanging (In-Line)	Threaded	Aluminum Alloy	Olive Drab Chromate over Cadmium	Aluminum Alloy	Copper Alloy	125 °C	-55 °C	Silver	Cadmium Olive Drab Chromate	Neoprene	3	N (Normal)	Female Sockets Plug	16 mm	10 mm	Metal	Solder Cup	Unshielded	Olive Drab	Marine Military	Backshell Coupling Nut
