JWS Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

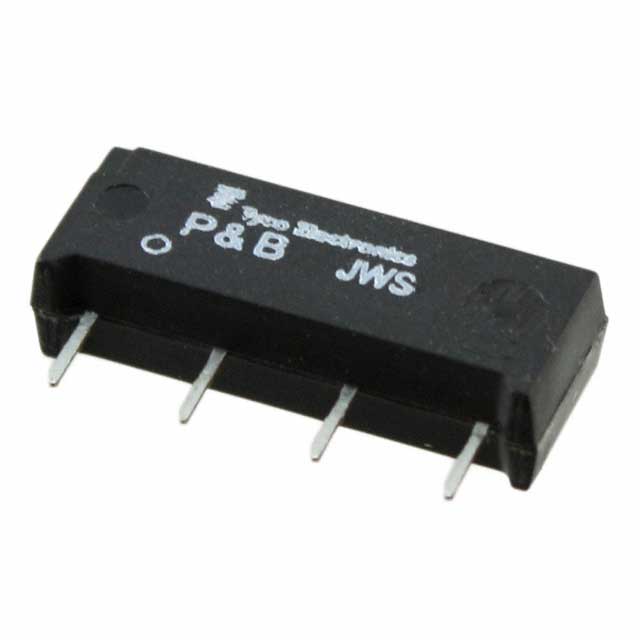

RELAY REED SPST 500MA 12V
| Part | Coil Resistance | Mounting Type | Operate Time | Release Time | Contact Form | Coil Voltage | Must Release Voltage | Switching Voltage [Max] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Contact Material | Coil Current | Must Operate Voltage | Termination Style | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1.85 kOhms | Through Hole | 1.5 ms | 0.5 ms | SPST-NO (1 Form A) | 12 VDC | 1 VDC | 100 VDC | Diode | 85 °C | -35 °C | Non Latching | Ruthenium (Ru) | 6.5 mA | 9.6 VDC | PC Pin | 0.5 A |
