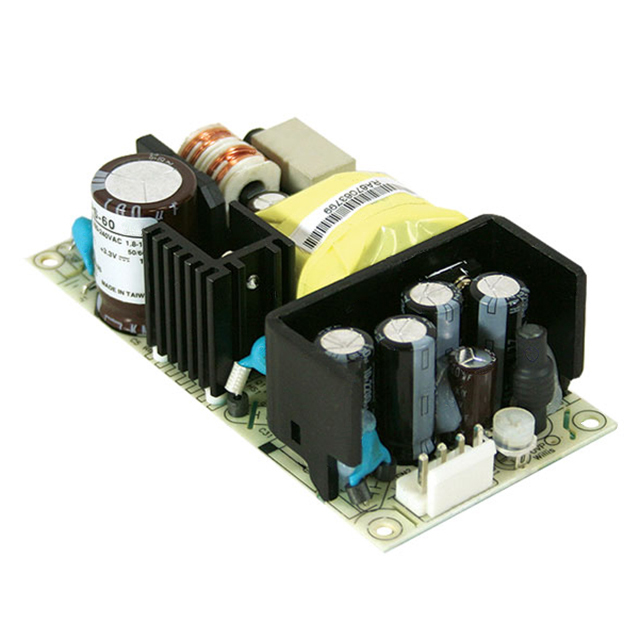

RPS-60 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 24V 60W
| Part | Minimum Load Required | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Mounting Type | Voltage - Output 1 | Applications | Number of Outputs | Power (Watts) | Efficiency | Current - Output 1 | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Isolation | Features | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 70 °C | -20 °C | CB CE cURus TUV | Chassis Mount | 24 V | ITE (Commercial) Medical | 1 | 60 W | 87 % | 2.5 A | Open Frame | 50.8 mm | 4 " | 101.6 mm | 29 mm | 2 in | 1.14 in | 4000 V | Adjustable Output Universal Input | 264 VAC 370 VDC | 90 VAC 127 VDC | |
MEAN WELL USA Inc. | 70 °C | -20 °C | CB CE cURus TUV | Chassis Mount | 5 V | ITE (Commercial) Medical | 1 | 50 W | 79 % | 10 A | Open Frame | 50.8 mm | 4 " | 101.6 mm | 29 mm | 2 in | 1.14 in | 4000 V | Adjustable Output Universal Input | 264 VAC 370 VDC | 90 VAC 127 VDC | |
MEAN WELL USA Inc. | 70 °C | -20 °C | CB CE cURus TUV | Chassis Mount | 12 V | ITE (Commercial) Medical | 1 | 60 W | 84 % | 5 A | Open Frame | 50.8 mm | 4 " | 101.6 mm | 29 mm | 2 in | 1.14 in | 4000 V | Adjustable Output Universal Input | 264 VAC 370 VDC | 90 VAC 127 VDC | |
MEAN WELL USA Inc. | 70 °C | -20 °C | CB CE cURus TUV | Chassis Mount | 3.3 V | ITE (Commercial) Medical | 1 | 33 W | 74 % | 10 A | Open Frame | 50.8 mm | 4 " | 101.6 mm | 29 mm | 2 in | 1.14 in | 4000 V | Adjustable Output Universal Input | 264 VAC 370 VDC | 90 VAC 127 VDC | |
MEAN WELL USA Inc. | 70 °C | -20 °C | CB CE cURus TUV | Chassis Mount | 15 V | ITE (Commercial) Medical | 1 | 60 W | 85 % | 4 A | Open Frame | 50.8 mm | 4 " | 101.6 mm | 29 mm | 2 in | 1.14 in | 4000 V | Adjustable Output Universal Input | 264 VAC 370 VDC | 90 VAC 127 VDC |
