M80-5T2 Series

Catalog

4+4 POS. MALE SIGNAL+POWER VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mated Stacking Heights	Insulation Color	Contact Material	Contact Finish - Mating	Fastening Type	Contact Finish - Post	Connector Type	Style	Number of Positions Loaded	Material Flammability Rating	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Type	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Shape	Termination	Mounting Type	Features	Insulation Height	Insulation Height	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Voltage Rating	Insulation Material	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Rows [custom]	Mated Stacking Heights [z]

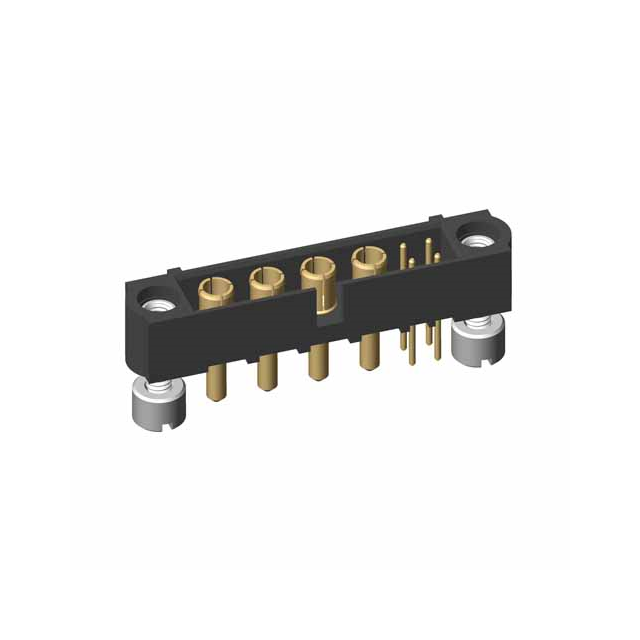

Harwin Inc. M80-5T20405M3-04-332-00-000	29.5 µin	0.75 µm	7.3 mm	Black	Copper Alloy Phosphor Bronze	Gold	Threaded	Gold	Header	Board to Cable/Wire	All	UL94 V-0	Shrouded - 4 Wall	-55 C	125 °C	2.2 A 20 A	Male Pin Power	4.5 mm	0.177 in	8	Circular	Solder	Through Hole	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.6 mm	0.22 in	29.5 µin	0.75 µm	800 VAC	Polyphenylene Sulfide (PPS) Glass Filled

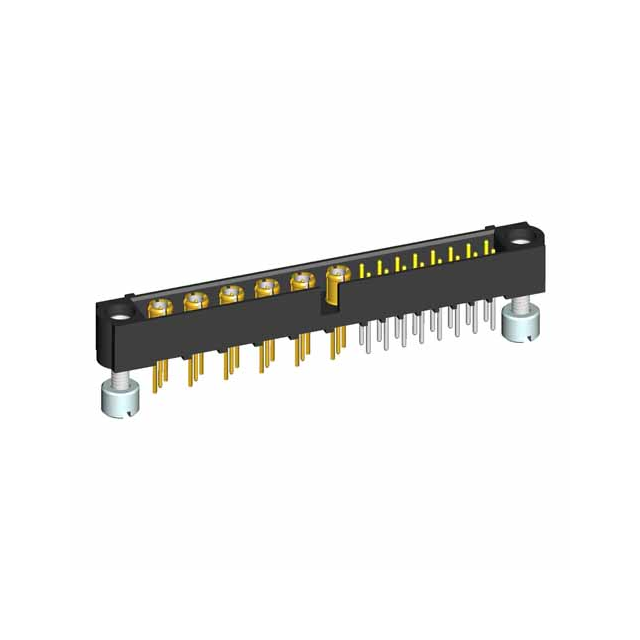

Harwin Inc. M80-5T21642M3-06-312-00-000			7.3 mm 9.75 mm	Black		Gold	Threaded		Header	Board to Cable/Wire	All	UL94 V-0	Shrouded - 4 Wall	-55 C	125 °C		Male Pin	4.4 mm	0.173 in	22	Circular	Solder	Through Hole	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.6 mm	0.22 in				Polyphenylene Sulfide (PPS) Glass Filled	0.079 "	2 mm	2 mm	0.079 in	2
Harwin Inc. M80-5T21005MF	29.5 µin	0.75 µm		Black	Phosphor Bronze	Gold	Threaded	Gold	Header	Board to Board Cable	All	UL94 V-0	Shrouded - 4 Wall	-55 C	125 °C	2.2 A	Male Pin	4.4 mm	0.173 in	10	Circular	Solder	Through Hole	Keying Slot Mating Flange Mounting Flange Mounting Hardware Shielded	5.6 mm	0.22 in	29.5 µin	0.75 µm	800 VAC	Polyphenylene Sulfide (PPS) Glass Filled	0.079 "	2 mm	2 mm	0.079 in	2	7.3 mm 7.8 mm
