5413 Series

Catalog

TAPE FILM AMBER 5/8"X36YDS

Part	Shelf Life Start	Shelf Life	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Backing, Carrier	Width	Width	Width	Adhesive	Usage	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Color	Temperature Range [Max]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Min]	Length	Length	Length	Thickness	Thickness	Thickness	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Tape Type	Width [x]	Width [x]
3M Electronic Specialty 5413 AMBER, 5/8 IN X 36 YD	Date of Manufacture	36 Months	70 °F	21 °C	Polyimide	16 mm	0.63 in	0.625 "	Silicone Thermosetting	High Temperature Masking	1 mils	0.025 mm	0.001 "	Amber	260 °C	260 °C	-73 °C	-100 °F	32.9 m	108 ft	36 yd	0.0027 in	0.069 mm	2.7 mils	1.7 mils	0.0017 in	0.043 mm	Film
3M Electronic Specialty 5413 AMBER, 3 IN X 36 YD	Date of Manufacture	36 Months	70 °F	21 °C	Polyimide				Silicone Thermosetting	High Temperature Masking	1 mils	0.025 mm	0.001 "	Amber	260 °C	260 °C	-73 °C	-100 °F	32.9 m	108 ft	36 yd	0.0027 in	0.069 mm	2.7 mils	1.7 mils	0.0017 in	0.043 mm	Film	3 in	76.2 mm

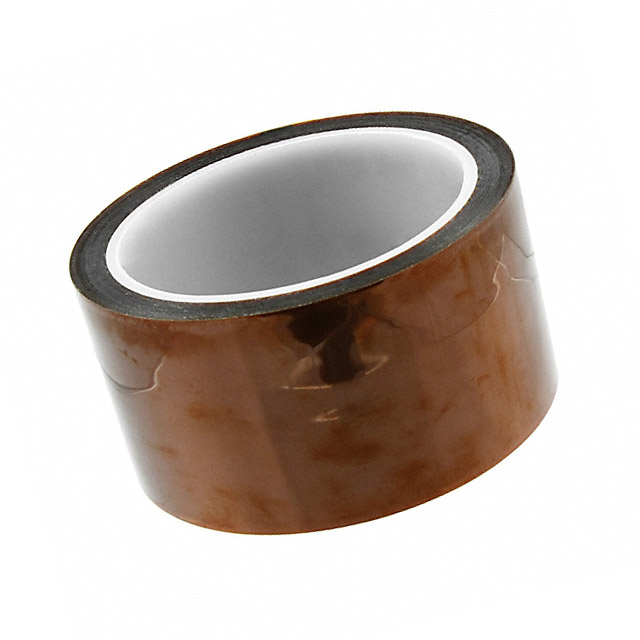

3M Electronic Specialty 5413 AMBER 2 IN X 36 YD	Date of Manufacture	36 Months	70 °F	21 °C	Polyimide				Silicone Thermosetting	High Temperature Masking	1 mils	0.025 mm	0.001 "	Amber	260 °C	260 °C	-73 °C	-100 °F	32.9 m	108 ft	36 yd	0.0027 in	0.069 mm	2.7 mils	1.7 mils	0.0017 in	0.043 mm	Film	2 in	50.8 mm
3M Electronic Specialty 5413-1.75"X36YD	Date of Manufacture	36 Months	69.8 °F	21 °C	Polyimide	44.45 mm	1.75 "		Silicone		1 mils	0.025 mm	0.001 "	Amber	260 °C	260 °C	-73 °C	-99 °F	32.9 m	108 ft	36 yd	0.0027 in	0.069 mm	2.7 mils	1.7 mils	0.0017 in	0.043 mm	Film
3M Electronic Specialty 5413 AMBER, 3/8 IN X 36 Y	Date of Manufacture	36 Months	70 °F	21 °C	Polyimide	9.65 mm	0.38 in		Silicone Thermosetting	High Temperature Masking	1 mils	0.025 mm	0.001 "	Amber	260 °C	260 °C	-73 °C	-100 °F	32.9 m	108 ft	36 yd	0.0027 in	0.069 mm	2.7 mils	1.7 mils	0.0017 in	0.043 mm	Film

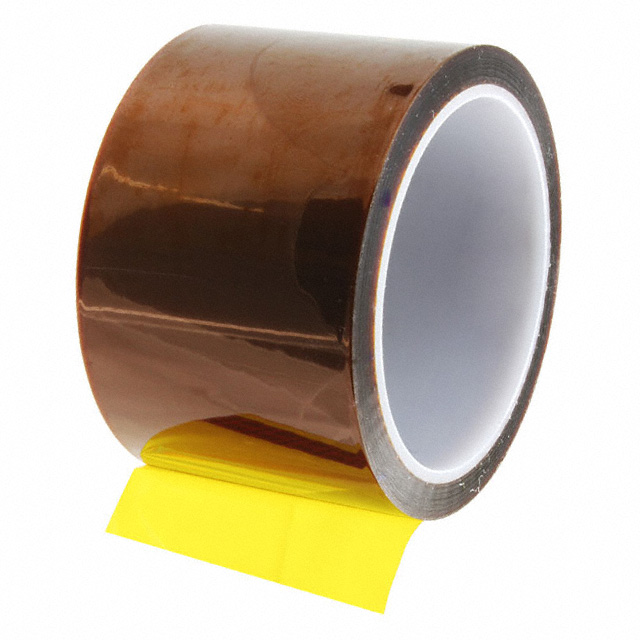

3M Electronic Specialty 5413 AMBER, 2 1/2 IN X 36	Date of Manufacture	36 Months	70 °F	21 °C	Polyimide				Silicone Thermosetting	High Temperature Masking	1 mils	0.025 mm	0.001 "	Amber	260 °C	260 °C	-73 °C	-100 °F	32.9 m	108 ft	36 yd	0.0027 in	0.069 mm	2.7 mils	1.7 mils	0.0017 in	0.043 mm	Film	2.5 in	63.5 mm
3M Electronic Specialty 5413 AMBER, 1/4 IN X 36 Y	Date of Manufacture	36 Months	70 °F	21 °C	Polyimide	6.35 mm	0.25 in	0.25 in	Silicone Thermosetting	High Temperature Masking	1 mils	0.025 mm	0.001 "	Amber	260 °C	260 °C	-73 °C	-100 °F	32.9 m	108 ft	36 yd	0.0027 in	0.069 mm	2.7 mils	1.7 mils	0.0017 in	0.043 mm	Film
3M Electronic Specialty 5413 AMBER, 7/8 IN X 36 Y	Date of Manufacture	36 Months	70 °F	21 °C	Polyimide	22.35 mm	0.88 in	0.875 in	Silicone Thermosetting	High Temperature Masking	1 mils	0.025 mm	0.001 "	Amber	260 °C	260 °C	-73 °C	-100 °F	32.9 m	108 ft	36 yd	0.0027 in	0.069 mm	2.7 mils	1.7 mils	0.0017 in	0.043 mm	Film
3M Electronic Specialty 5413 AMBER, 1 1/4 IN X 36	Date of Manufacture	36 Months	70 °F	21 °C	Polyimide	1.25 in		31.75 mm	Silicone Thermosetting	High Temperature Masking	1 mils	0.025 mm	0.001 "	Amber	260 °C	260 °C	-73 °C	-100 °F	32.9 m	108 ft	36 yd	0.0027 in	0.069 mm	2.7 mils	1.7 mils	0.0017 in	0.043 mm	Film
3M Electronic Specialty 5413 AMBER, 12 IN X 36 YD	Date of Manufacture	36 Months	70 °F	21 °C	Polyimide				Silicone Thermosetting	High Temperature Masking	1 mils	0.025 mm	0.001 "	Amber	260 °C	260 °C	-73 °C	-100 °F	32.9 m	108 ft	36 yd	0.0027 in	0.069 mm	2.7 mils	1.7 mils	0.0017 in	0.043 mm	Film	12 "	304.8 mm
