ECHO2 Series

Manufacturer: Siretta

Catalog

RF ANT 850/868MHZ PCB TRACE CAB

Part	Features	Features	Termination	Antenna Type	VSWR	Mounting Type	Frequency Group	Number of Bands	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Frequency (Center/Band)	Gain

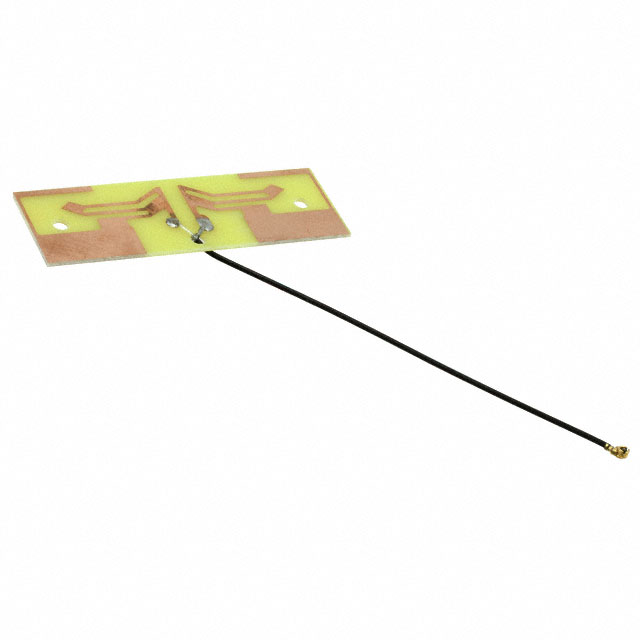

Siretta ECHO2/0.1M/UFL/S/S/1	Cable	100 mm	I-PEX MHF1 U.FL (UMCC)	PCB Trace	1.5	Adhesive	Wide Band	7	0.039 in	1 mm	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 850 MHz 868 MHz 900 MHz	2 dBi
Siretta ECHO2/0.2M/UFL/S/S/1	Cable - 200mm		I-PEX MHF1 U.FL (UMCC)	PCB Trace	1.5	Adhesive	Wide Band	7	0.039 in	1 mm	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 850 MHz 868 MHz 900 MHz	2 dBi
