MOSFET, N-Channel FET, 20V, 1.5 Ω, XDFN3
Key Features

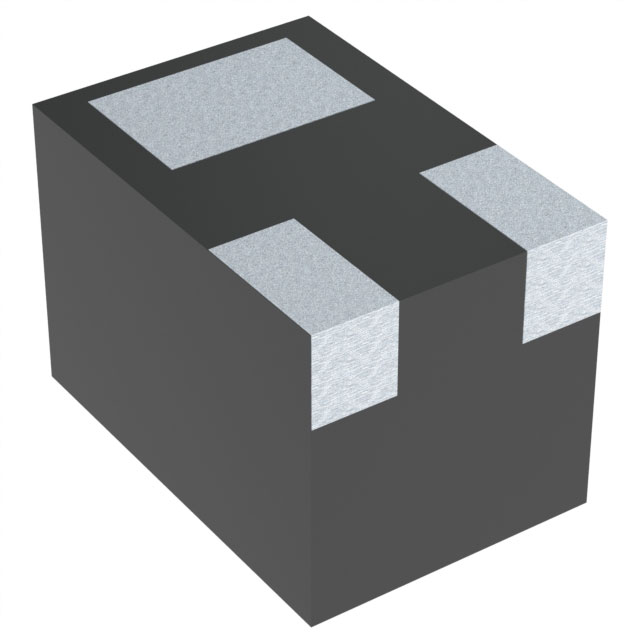

• Low Profile Ultra Small Package, XDFN 0.42x0.62x0.4mm
• Pb-Free, Halogen Free, and BFR Free
Description
AI
N-Channel MOSFET, 20V, 1.5 Ω, XDFN3 0.42x0.62x0.4mm
Beta
⌘K
MOSFET, N-Channel FET, 20V, 1.5 Ω, XDFN3
MOSFET, N-Channel FET, 20V, 1.5 Ω, XDFN3
| Part | Vgs(th) (Max) @ Id | Technology | Mounting Type | Drive Voltage (Max Rds On, Min Rds On) | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Rds On (Max) @ Id, Vgs | Vgs (Max) | Drain to Source Voltage (Vdss) | Package / Case | FET Type | Power Dissipation (Max) [Max] | Current - Continuous Drain (Id) @ 25°C | Input Capacitance (Ciss) (Max) @ Vds |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | 1 V | MOSFET (Metal Oxide) | Surface Mount | 1.5 V 4.5 V | -55 °C | 150 °C | 0.42x0.62 3-XDFN | 1.5 Ohm | 8 V | 20 V | 3-XFDFN | N-Channel | 125 mW | 220 mA | 12.3 pF |
