1SNL Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
DBL80
| Part | Current Rating (Amps) | Line Side Connection Type | Voltage - Rated | Type | Number of Poles | Load Side Connection Type | Line Side Connections Per Pole | Load Side Connections Per Pole | Line Side Wire/Stud Size | Line Side Wire/Stud Size | Load Side Wire/Stud Size | Line Side Wire/Stud Size [Min] | Line Side Wire/Stud Size [Max] | Load Side Wire/Stud Size [Max] | Load Side Wire/Stud Size [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 80 A | Screw Connection | 1000 V | Power Distribution Block | 1 | Screw Connection | 1 | 6 | |||||||
TE Connectivity Raychem Cable Protection | 400 A | Screw Connection | 1000 V | Power Distribution Block | 1 | Screw Connection | 1 | 14 | 250 MCM | 250 kcmil | 250 kcmil | ||||
TE Connectivity Raychem Cable Protection | 115 A | Screw Connection | 1000 V | Power Distribution Block | 1 | Screw Connection | 1 | 7 | |||||||
 TE Connectivity Raychem Cable Protection | 225 A | Screw Connection | 1000 V | Power Distribution Block | 1 | Screw Connection | 1 | 11 | |||||||
TE Connectivity Raychem Cable Protection | 510 A | Screw Connection | 1000 V | Power Distribution Block | 1 | Screw Connection | 1 | 4 | 250 MCM | 250 kcmil | 250 kcmil | ||||
TE Connectivity Raychem Cable Protection | 250 A | Screw Connection | 1000 V | Power Distribution Block | 1 | Screw Connection | 1 | 7 | 6 AWG | 14 AWG | 14 AWG | 6 AWG | |||

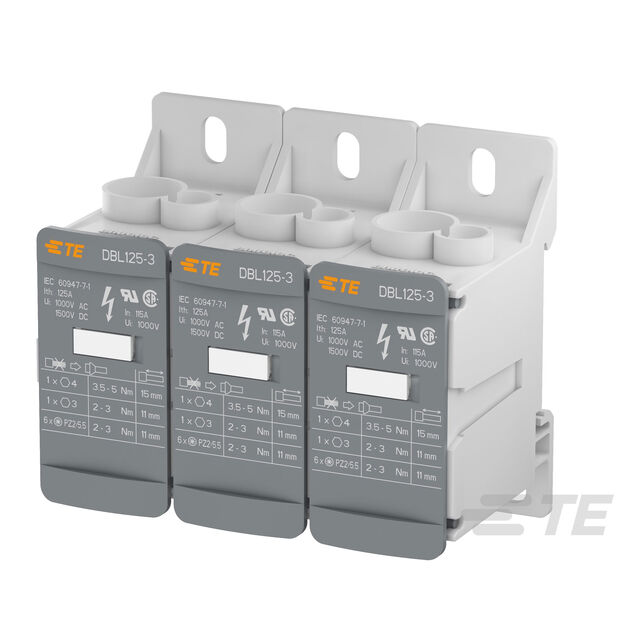

 TE Connectivity Raychem Cable Protection | 115 A | Screw Connection | 1000 V | Power Distribution Block | 3 | Screw Connection | 3 | 8 | |||||||
TE Connectivity Raychem Cable Protection | 175 A | Screw Connection | 1000 V | Power Distribution Block | 1 | Screw Connection | 1 | 12 | 2 aught AWG | 2 aught AWG |
