AXN450 Series

Catalog

CONN HDR 50POS SMD GOLD

Part	Number of Rows [custom]	Features	Mated Stacking Heights	Pitch	Pitch	Connector Type	Number of Positions	Mounting Type	Contact Finish	Height Above Board [z]	Height Above Board [z]
Panasonic Electronic Components AXN450C430S	2	Board Guide	4 mm 4.5 mm 7 mm	0.8 mm	0.031 in	Header Outer Shroud Contacts	50	Surface Mount	Gold	3.7 mm	0.146 in
Panasonic Electronic Components AXN450530S	2	Board Guide	5 mm 5.5 mm 8 mm	0.8 mm	0.031 in	Header Outer Shroud Contacts	50	Surface Mount	Gold	4.72 mm	0.186 in
Panasonic Electronic Components AXN450C330P	2	Board Guide	3 mm 3.5 mm 6 mm	0.8 mm	0.031 in	Header Outer Shroud Contacts	50	Surface Mount	Gold	2.72 mm	0.107 in
Panasonic Electronic Components AXN450C430P	2	Board Guide	4 mm 4.5 mm 7 mm	0.8 mm	0.031 in	Header Outer Shroud Contacts	50	Surface Mount	Gold	3.7 mm	0.146 in
Panasonic Electronic Components AXN450C530P	2	Board Guide	5 mm 5.5 mm 8 mm	0.8 mm	0.031 in	Header Outer Shroud Contacts	50	Surface Mount	Gold	4.72 mm	0.186 in
Panasonic Electronic Components AXN450330P	2	Board Guide	3 mm 3.5 mm 6 mm	0.8 mm	0.031 in	Header Outer Shroud Contacts	50	Surface Mount	Gold	2.72 mm	0.107 in

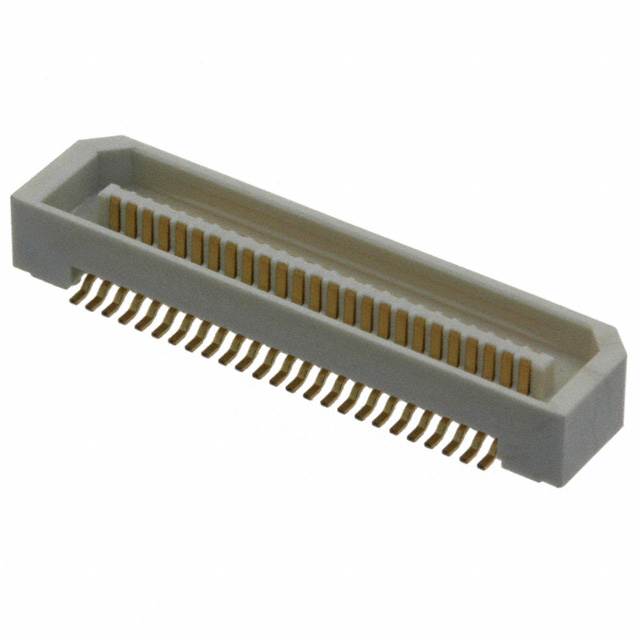

Panasonic Electronic Components AXN450430P	2	Board Guide	4 mm 4.5 mm 7 mm	0.8 mm	0.031 in	Header Outer Shroud Contacts	50	Surface Mount	Gold	3.72 mm	0.147 in
Panasonic Electronic Components AXN450040P	2		13 mm	0.8 mm	0.031 in	Header Outer Shroud Contacts	50	Surface Mount	Gold	10.14 mm	0.399 in
