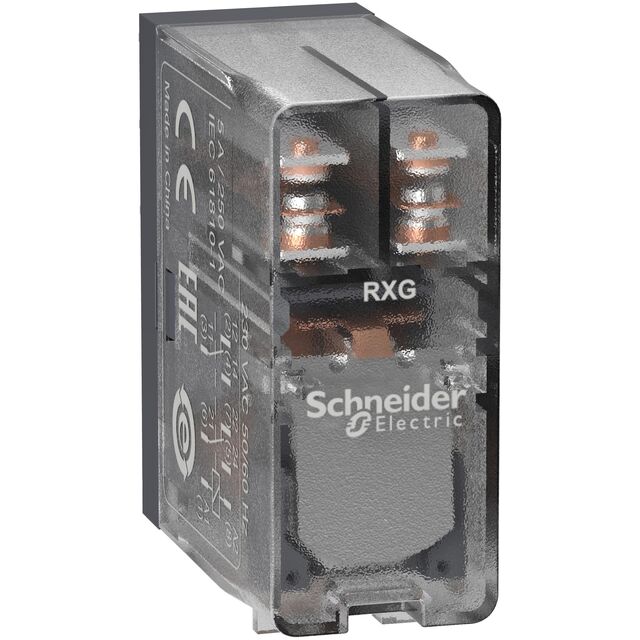

RXG25 Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K
POWER RELAY, DPDT, 24 VDC, 5 A, ZELIO RXG SERIES, SOCKET
| Part | Contact Form | Load - Max Switching | Termination Style | Approval Agency | Relay Type | Contact Rating (Current) | Switching Voltage [Max] | Contact Material | Mounting Type | Coil Type | Coil Voltage | Must Release Voltage | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Release Time | Coil Resistance | Coil Current | Coil Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | DPDT (2 Form C) | 150 W 1250 VA | Plug In | CE CSA DNV-GL EAC UL | General Purpose | 5 A | 30 VDC 250 VAC | Silver Tin Oxide Indium Oxide (AgSnOInO) | Socketable | Non Latching | 24 VDC | 2.4 VDC | 19.2 VDC | 70 °C | -40 C | 20 ms | 20 ms | |||
 SCHNEIDER ELECTRIC | DPDT (2 Form C) | 150 W 1250 VA | Plug In | CE CSA DNV-GL EAC UL | General Purpose | 5 A | 30 VDC 250 VAC | Silver Tin Oxide Indium Oxide (AgSnOInO) | Socketable | Non Latching | 230 VAC | 69 VAC | 184 VAC | 70 °C | -40 C | 20 ms | 20 ms | |||
 SCHNEIDER ELECTRIC | DPDT (2 Form C) | 150 W 1250 VA | Plug In | CE CSA DNV-GL EAC UL | General Purpose | 5 A | 30 VDC 250 VAC | Silver Tin Oxide Indium Oxide (AgSnOInO) | DIN Rail | Non Latching | 220 VAC/DC | 66 VAC | 176 VAC | 70 °C | -40 C | 20 ms | 20 ms | 21 kOhms | 10.5 mA | Class F |
