146225 Series

Catalog

CONN HEADER VERT 3POS 2.54MM

Part	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Termination	Contact Length - Mating [x]	Contact Length - Mating	Mounting Type	Number of Rows	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Voltage Rating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Style	Shrouding	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Type	Number of Positions Loaded	Insulation Material	Contact Shape

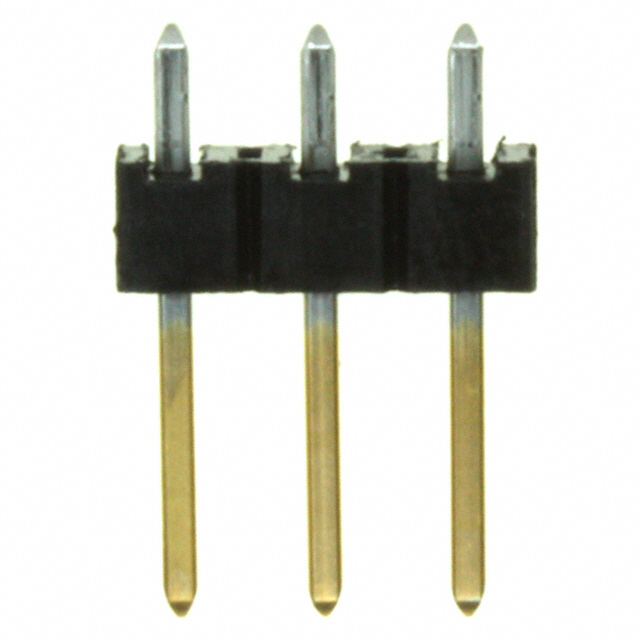

TE Connectivity Raychem Cable Protection 146225-3	0.41 in	10.41 mm	Tin-Lead	Solder	0.23 in	5.84 mm	Through Hole	1	Gold	2.54 µm	100 µin	Push-Pull	30 VAC	0.09 "	2.29 mm	UL94 V-0	Board to Board Cable	Unshrouded	Breakaway Header	0.1 in	2.54 mm	0.09 in	2.29 mm	3 A	Black	0.127 µm	5 µin	-65 ░C	105 ░C	Copper Alloy	Male Pin	All	Thermoplastic	Square
