08K243 Series
Manufacturer: Rosenberger
Beta
⌘K

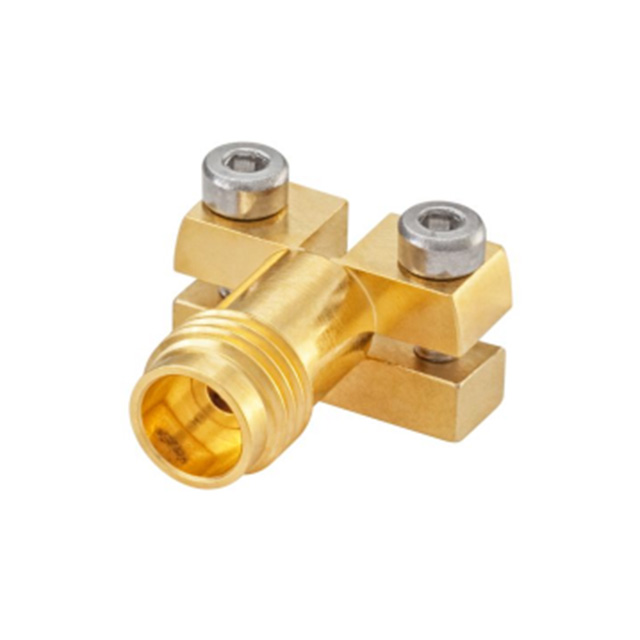

CONN RPC1.85 JCK ST 50OHM EDGEMT
| Part | Center Contact Plating | Body Material | Body Finish | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Includes | Voltage Rating | Center Contact Material | Number of Ports | Frequency - Max [Max] | Connector Style | Mounting Type | Fastening Type | Housing Color | Shield Termination | Contact Termination | Features | Impedance | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Gold | Brass | Gold | 500 | -55 C | 125 °C | Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE) | 1 Connector 2 Screws | 150 VDC | Beryllium Copper | 1 | 70 GHz | 1.85 mm | Board Edge End Launch | Threaded | Gold | Screw | Solder | Mounting Hardware | 50 Ohms | Female Socket Jack |
