951222 Series

Catalog

CONN HEADER SMD R/A 22POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Fastening Type	Insulation Color	Contact Shape	Connector Type	Material Flammability Rating	Number of Rows [custom]	Contact Finish - Post	Mounting Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Number of Positions	Contact Type	Termination	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Features	Contact Length - Post [custom]	Contact Length - Post
3M Electronic Specialty 951222-4620-AR-PR	39.4 çin	1 çm	Thermoplastic	Push-Pull	Black	Square	Header	UL94 V-0	2	Tin	Right Angle Surface Mount	All	0.079 "	2 mm	4 mm	0.157 in	Flash	105 ░C	-25 °C	Copper Alloy	22	Male Pin	Solder	Gold	4.45 mm	0.175 in	Unshrouded	2 mm	0.079 in	Pick and Place
3M Electronic Specialty 951222-2520-AR-PT	39.4 çin	1 çm	Thermoplastic	Push-Pull	Black	Square	Header	UL94 V-0	2	Tin	Surface Mount	All	0.079 "	2 mm	1.52 mm	0.06 in	Flash	105 ░C	-25 °C	Copper Alloy	22	Male Pin	Solder	Gold	4 mm	0.157 in	Unshrouded	2 mm	0.079 in	Pick and Place
3M Electronic Specialty 951222-7622-AR	39.4 çin	1 çm	Thermoplastic	Push-Pull	Black	Square	Header	UL94 V-0	2	Tin	Right Angle Through Hole	All	0.079 "	2 mm	4 mm	0.157 in	Flash	125 °C	-55 C	Copper Alloy	22	Male Pin	Solder	Gold	4.4 mm	0.173 in	Unshrouded	2 mm	0.079 in		0.11 in	2.79 mm

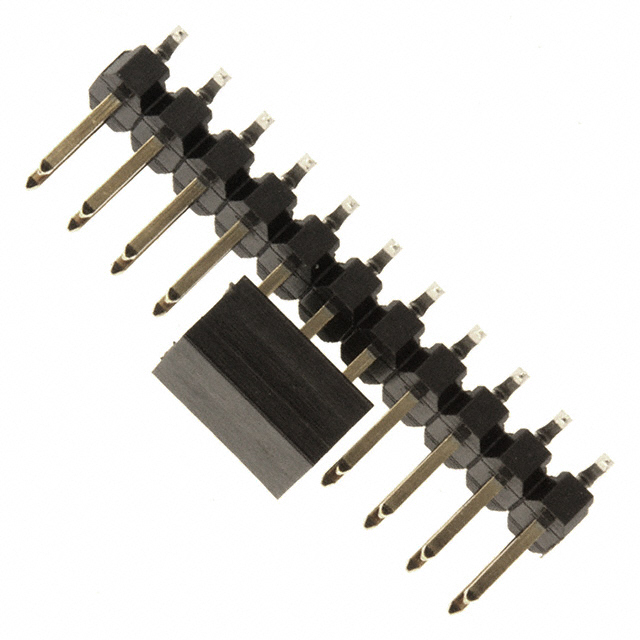

3M Electronic Specialty 951222-2520-AR-PR	39.4 çin	1 çm	Thermoplastic	Push-Pull	Black	Square	Header	UL94 V-0	2	Tin	Surface Mount	All	0.079 "	2 mm	1.52 mm	0.06 in	Flash	105 ░C	-25 °C	Copper Alloy	22	Male Pin	Solder	Gold	4 mm	0.157 in	Unshrouded	2 mm	0.079 in	Pick and Place
3M Electronic Specialty 951222-2520-AR-TP	39.4 çin	1 çm	Thermoplastic	Push-Pull	Black	Square	Header	UL94 V-0	2	Tin	Surface Mount	All	0.079 "	2 mm	1.52 mm	0.06 in	Flash	105 ░C	-25 °C	Copper Alloy	22	Male Pin	Solder	Gold	4 mm	0.157 in	Unshrouded	2 mm	0.079 in
