858-005 Series
Manufacturer: NorComp Inc.
Beta
⌘K

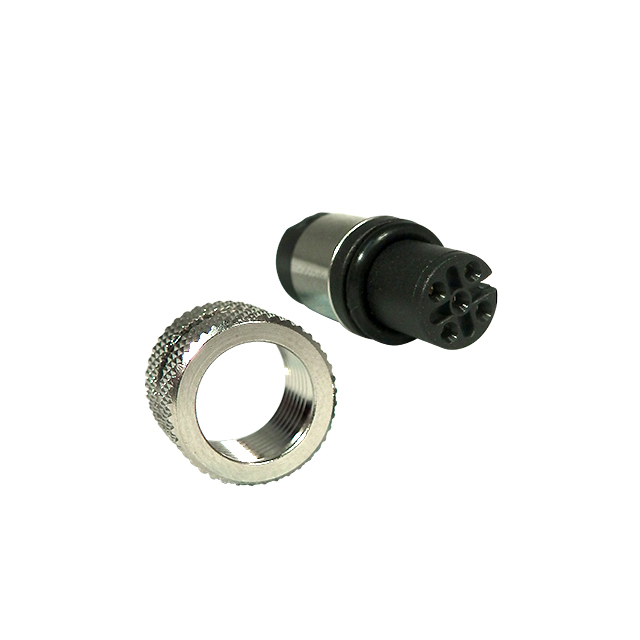

SENSOR CONNECTOR, CABLE KIT, VULCON SERIES, M12, FEMALE, 5 POSITIONS, CRIMP SOCKET
| Part | Contact Finish Thickness - Mating | Current Rating (Amps) | Material Flammability Rating | Number of Positions | Fastening Type | Primary Material | Features | Applications | Orientation | Shell Material | Connector Type | Shell Size - Insert | Contact Finish - Mating | Mounting Type | Ingress Protection | Contact Material | Color | Backshell Material, Plating | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Insert Material | Cable Opening | Cable Opening | Shielding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Flash | 4 A | UL94 V-0 | 5 | Threaded | Metal | Backshell Coupling Nut Strain Relief | Industrial Medical | A | Aluminum Alloy | Plug Female Sockets | M12-5 | Gold | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Brass | Silver | Aluminum Alloy Nickel | Nickel | 85 °C | -40 C | 60 VDC | Polybutylene Terephthalate (PBT) | |||||
 NorComp Inc. | Flash | 4 A | UL94 V-0 | 5 | Threaded | Metal | Industrial Medical | A | Brass | Receptacle Male Pins | M12-5 | Gold | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Brass | Silver | Nickel | 85 °C | -40 C | 60 VDC | Polybutylene Terephthalate (PBT) | 0.394 in | 10 mm | Shielded | ||||
 NorComp Inc. | 4 A | UL94 V-0 | 5 | Threaded | Metal | Industrial Medical | A | Brass | Receptacle Male Pins | M12-5 | Gold | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Brass | Silver | Nickel | 85 °C | -40 C | 60 VDC | Polybutylene Terephthalate (PBT) | 0.394 in | 10 mm | Shielded | 0.25 µm | 10 µin | |||
 NorComp Inc. | Flash | 4 A | UL94 V-0 | 5 | Threaded | Metal | Backshell Strain Relief | Industrial Medical | A | Aluminum Alloy | Receptacle Male Pins | M12-5 | Gold | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Brass | Silver | Aluminum Alloy Nickel | Nickel | 85 °C | -40 C | 60 VDC | Polybutylene Terephthalate (PBT) | |||||
 NorComp Inc. | 4 A | UL94 V-0 | 5 | Threaded | Metal | Backshell Strain Relief | Industrial Medical | A | Aluminum Alloy | Receptacle Male Pins | M12-5 | Gold | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Brass | Silver | Aluminum Alloy Nickel | Nickel | 85 °C | -40 C | 60 VDC | Polybutylene Terephthalate (PBT) | 0.25 µm | 10 µin |
