TC02 Series

Catalog

TERM BLK 2POS SIDE ENTRY 5MM PCB

Part	Mating Orientation	Current	Torque - Screw	Torque - Screw	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Screw Material - Plating	Housing Material	Clamp Material - Plating	Number of Levels	Positions Per Level	Wire Termination	Voltage	Color	Screw Thread	Features	Pitch [x]	Pitch [x]

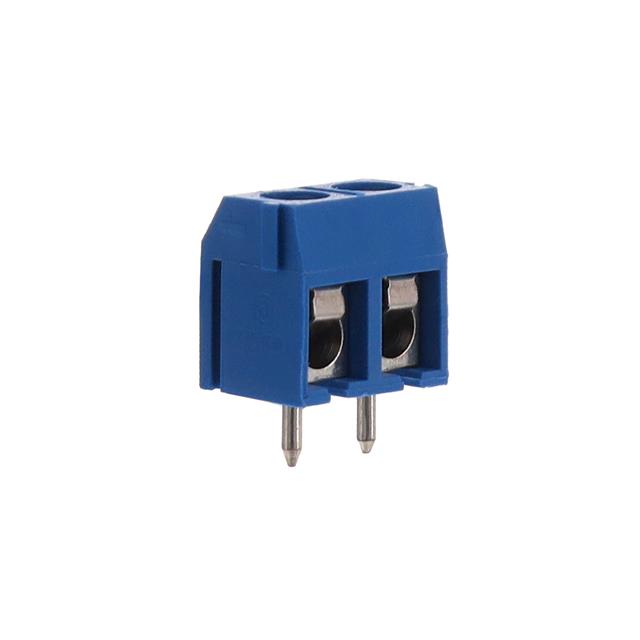

Amphenol Anytek TC0203620000G	Horizontal with Board	15 A	0.3 Nm	2.6 Lb-In	-40 °C	115 °C	14 AWG	22 AWG	Through Hole	Steel Zinc Plated	Thermoplastic	Stainless Steel	1	2	Screw - Leaf Spring Wire Guard	300 V	Blue	M2.6	Interlocking (Side)	5 mm	0.197 in

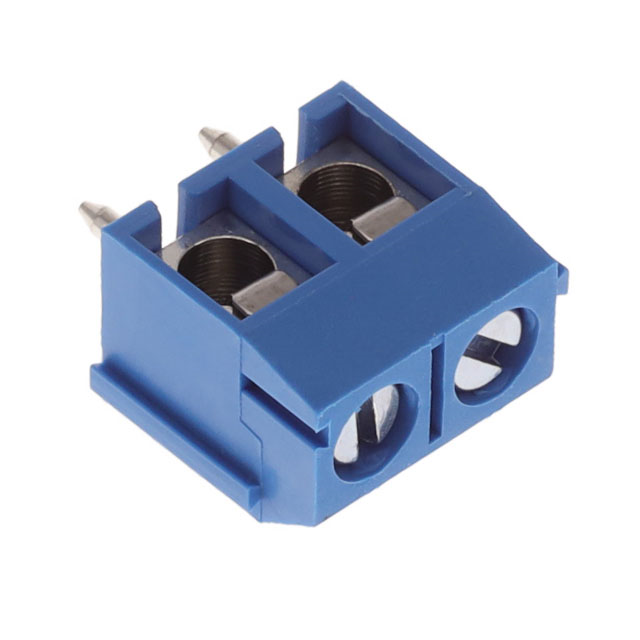

Amphenol Anytek TC0223620000G	Horizontal with Board	15 A	0.3 Nm	2.6 Lb-In	-40 °C	115 °C	14 AWG	22 AWG	Through Hole	Steel Zinc Plated	Thermoplastic	Stainless Steel	1	2	Screw - Leaf Spring Wire Guard	300 V	Blue	M2.6	Interlocking (Side)	5.08 mm	0.2 in
