2187308 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

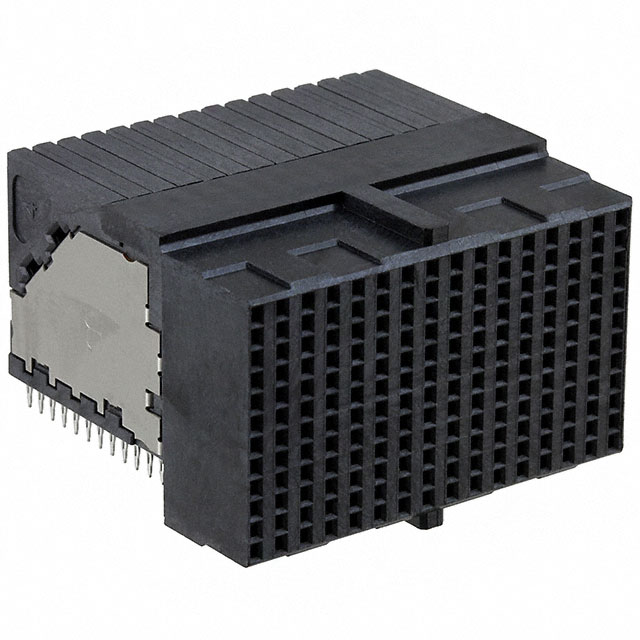

CONN BACKPLANE RCP 192 POS 1.9MM PRESS FIT RA THRU-HOLE
| Part | Number of Columns | Material Flammability Rating | Number of Positions | Number of Rows | Number of Positions Loaded | Connector Type | Termination | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Color | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 16 | UL94 V-0 | 192 | 12 | All | Receptacle Female Sockets | Press-Fit | Gold | -65 ░C | 90 °C | Board Edge Right Angle Through Hole | Black | 250 VDC | 0.76 Ám | 30 Áin | 0.075 in | 1.9 mm | 0.5 A |
