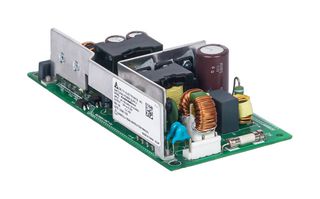

PJ-24V150 Series
Manufacturer: Delta Electronics
Beta
⌘K
AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 1 OUTPUT, 150 W, 85V AC TO 264V AC, ADJUSTABLE, FIXED
| Part | Current - Output 1 | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Output 1 | Features | Applications | Power (Watts) | Type | Number of Outputs | Voltage - Isolation | Approval Agency | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 6.3 A | 91 % | 70 °C | -10 °C | Chassis Mount | 24 V | Adjustable Output PFC Universal Input | ITE (Commercial) | 150 W | Open Frame Conformal Coated | 1 | 3000 V | CB CE cURus TUV | 6.3 in | 160 mm | 37 mm | 1.46 in | 2.95 " | 75 mm |

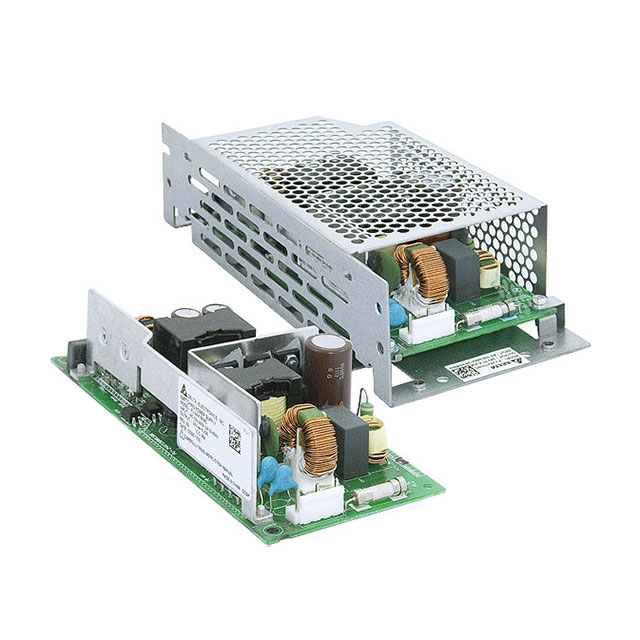

 Delta Electronics | 6.3 A | 91 % | 70 °C | -10 °C | Chassis Mount | 24 V | Adjustable Output PFC Remote On/Off Universal Input | ITE (Commercial) | 150 W | Enclosed | 1 | 3000 V | CB CE cURus TUV | 7.4 in | 188 mm | 47 mm | 1.85 in | 3.35 in | 85 mm |

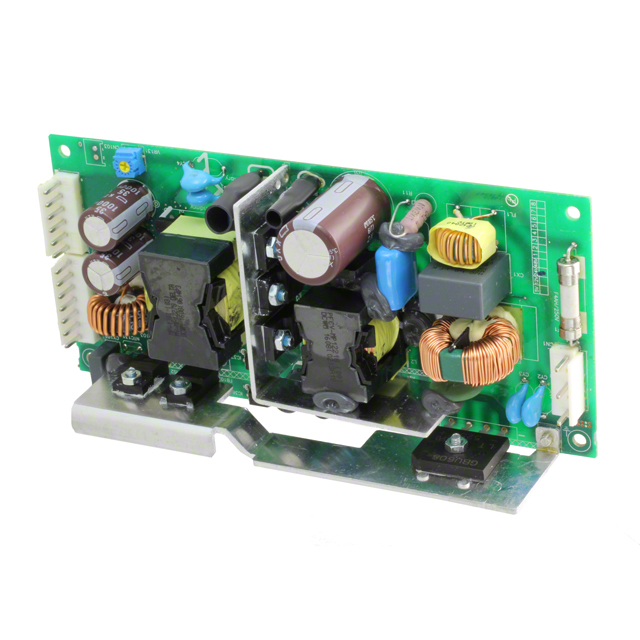

Delta Electronics | 6.3 A | 91 % | 70 °C | -10 °C | Chassis Mount | 24 V | Adjustable Output PFC Remote On/Off Universal Input | ITE (Commercial) | 150 W | Open Frame | 1 | 3000 V | CB CE cURus TUV | 6.3 in | 160 mm | 37 mm | 1.46 in | 2.95 " | 75 mm |
