3FTH9 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Mechanical Life	Switch Travel	Actuator Material	Outline [x]	Outline [y]	Illumination Voltage (Nominal)	Operating Force	Actuator Height off PCB, Vertical [z]	Features	Switch Function	Circuit	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Orientation	Actuator Type	Illumination	Illumination Type, Color	Ingress Protection	Contact Rating @ Voltage

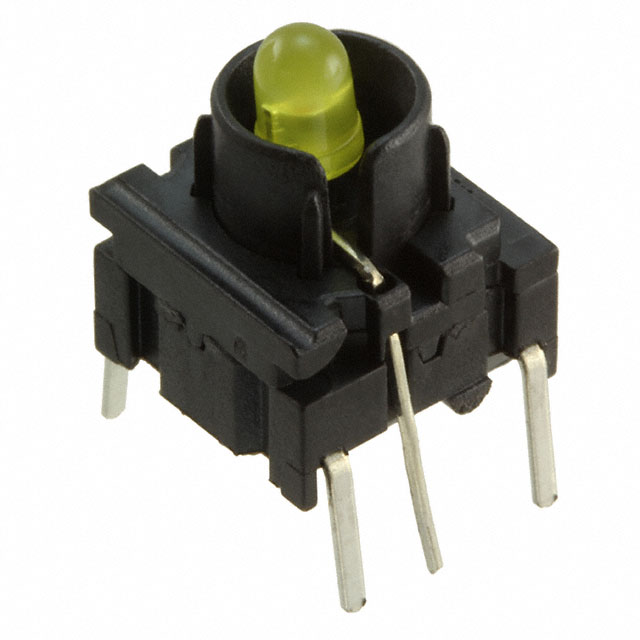

MEC Switches 3FTH940	10000000 Cycles	1 mm	Polybutylene Terephthalate (PBT)	10.1 mm	10.1 mm	2.1 VDC	300 gf	10.4 mm	Sealed - Flux Protection	Off-Mom	SPST-NO	Through Hole	160 °C	-40 C	PC Pin	Top Actuated	Plunger for Cap	Illuminated	LED Yellow	IP67 - Dust Tight Waterproof	0.05 A 24 VDC
MEC Switches 3FTH924	10000000 Cycles	1 mm	Polybutylene Terephthalate (PBT)	10.1 mm	10.1 mm	2 VDC	300 gf	10.4 mm	Sealed - Flux Protection	Off-Mom	SPST-NO	Through Hole	160 °C	-40 C	PC Pin	Top Actuated	Plunger for Cap	Illuminated	Green LED	IP67 - Dust Tight Waterproof	0.05 A 24 VDC
MEC Switches 3FTH945	10000000 Cycles	1 mm	Polybutylene Terephthalate (PBT)	10.1 mm	10.1 mm	2.3 VDC	300 gf	10.4 mm	Sealed - Flux Protection	Off-Mom	SPST-NO	Through Hole	160 °C	-40 C	PC Pin	Top Actuated	Plunger for Cap	Illuminated	LED Yellow	IP67 - Dust Tight Waterproof	0.05 A 24 VDC
MEC Switches 3FTH987	10000000 Cycles	1 mm	Polybutylene Terephthalate (PBT)	10.1 mm	10.1 mm	2 VDC	300 gf	10.4 mm	Sealed - Flux Protection	Off-Mom	SPST-NO	Through Hole	160 °C	-40 C	PC Pin	Top Actuated	Plunger for Cap	Illuminated	LED Red	IP67 - Dust Tight Waterproof	0.05 A 24 VDC
MEC Switches 3FTH98020	10000000 Cycles	1 mm	Polybutylene Terephthalate (PBT)	10.1 mm	10.1 mm	2 VDC 2.1 VDC	300 gf	10.4 mm	Sealed - Flux Protection	Off-Mom	SPST-NO	Through Hole	160 °C	-40 C	PC Pin	Top Actuated	Plunger for Cap	Illuminated	Green/Red LED	IP67 - Dust Tight Waterproof	0.05 A 24 VDC

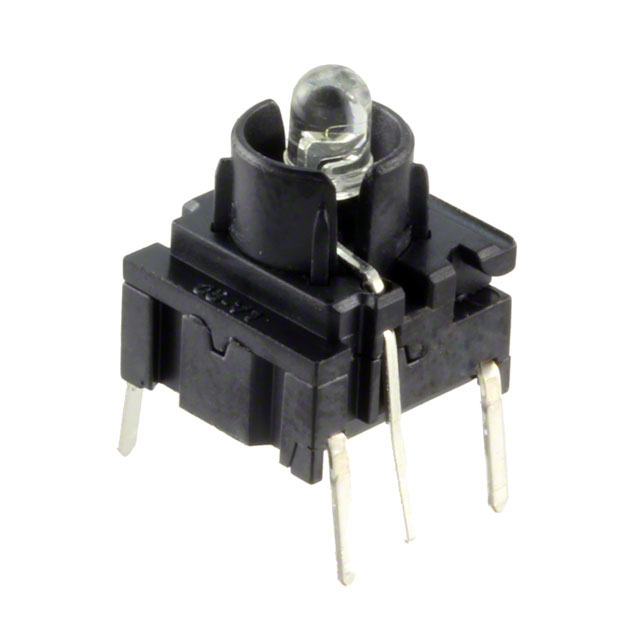

MEC Switches 3FTH946	10000000 Cycles	1 mm	Polybutylene Terephthalate (PBT)	10.1 mm	10.1 mm	2 VDC	300 gf	10.4 mm	Sealed - Flux Protection	Off-Mom	SPST-NO	Through Hole	160 °C	-40 C	PC Pin	Top Actuated	Plunger for Cap	Illuminated	LED Yellow	IP67 - Dust Tight Waterproof	0.05 A 24 VDC

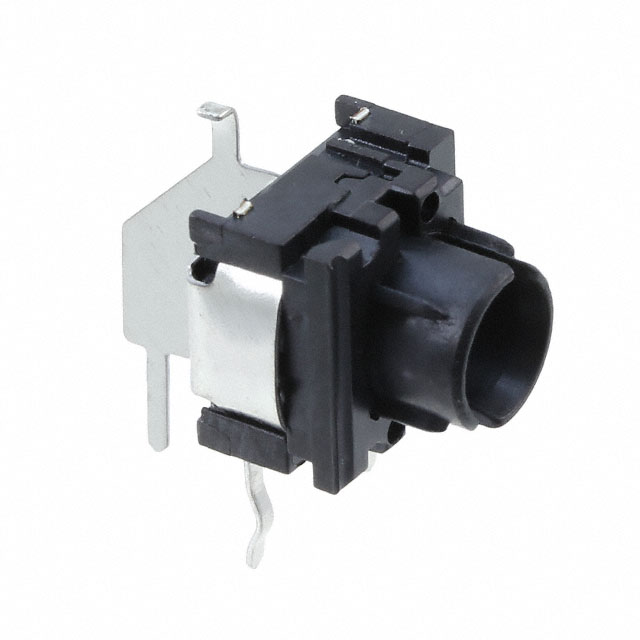

MEC Switches 3FTH9RAS	10000000 Cycles	1 mm	Polybutylene Terephthalate (PBT)	10.1 mm	10.1 mm		300 gf		Sealed - Flux Protection	Off-Mom	SPST-NO	Right Angle Through Hole	160 °C	-40 C	PC Pin	Side Actuated	Plunger for Cap	Non-Illuminated		IP67 - Dust Tight Waterproof	0.05 A 24 VDC

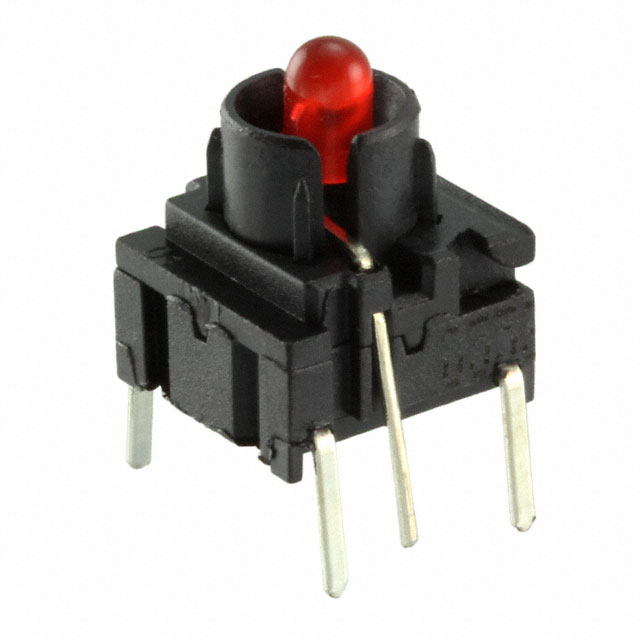

MEC Switches 3FTH980	10000000 Cycles	1 mm	Polybutylene Terephthalate (PBT)	10.1 mm	10.1 mm	2 VDC	300 gf	10.4 mm	Sealed - Flux Protection	Off-Mom	SPST-NO	Through Hole	160 °C	-40 C	PC Pin	Top Actuated	Plunger for Cap	Illuminated	LED Red	IP67 - Dust Tight Waterproof	0.05 A 24 VDC
MEC Switches 3FTH900	10000000 Cycles	1 mm	Polybutylene Terephthalate (PBT)	10.1 mm	10.1 mm	2.1 VDC	300 gf	10.4 mm	Sealed - Flux Protection	Off-Mom	SPST-NO	Through Hole	160 °C	-40 C	PC Pin	Top Actuated	Plunger for Cap	Illuminated	Blue LED	IP67 - Dust Tight Waterproof	0.05 A 24 VDC

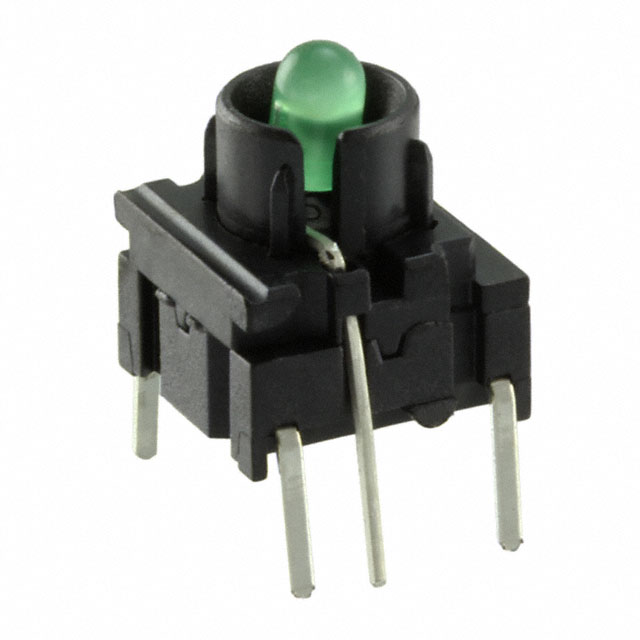

MEC Switches 3FTH920	10000000 Cycles	1 mm	Polybutylene Terephthalate (PBT)	10.1 mm	10.1 mm	2.1 VDC	300 gf	10.4 mm	Sealed - Flux Protection	Off-Mom	SPST-NO	Through Hole	160 °C	-40 C	PC Pin	Top Actuated	Plunger for Cap	Illuminated	Green LED	IP67 - Dust Tight Waterproof	0.05 A 24 VDC
