L135 Series

Manufacturer: Lumileds

Catalog

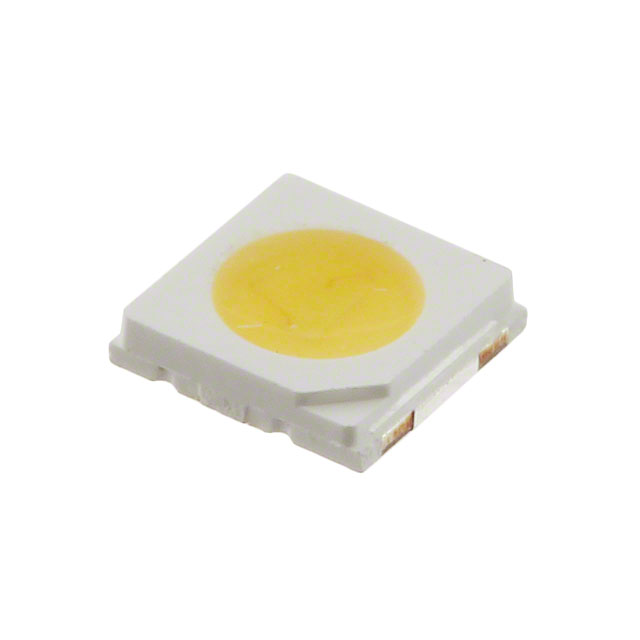

LED LUXEON WARM WHT 3500K 1414

Part	Thermal Resistance of Package	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Color	Viewing Angle	Supplier Device Package	Package / Case	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Current - Max [Max]	Lumens/Watt @ Current - Test	Flux @ 25°C, Current - Test	Wavelength	Temperature - Test	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]
Lumileds L135-3590CA35000P1	14 °C/W	90	2.8 V	Surface Mount	0.035 in	0.9 mm	Warm White	115 °	1414	1414 (3535 Metric)	100 mA	3.4 mm	0.138 in	3.5 mm	0.134 in	3500 K	300 mA
Lumileds L135-2770CA35000P1	14 °C/W	70	2.8 V	Surface Mount	0.035 in	0.9 mm	Warm White	115 °	1414	1414 (3535 Metric)	100 mA	3.4 mm	0.138 in	3.5 mm	0.134 in	2700 K	300 mA
Lumileds L135-5770SA35000P1	14 °C/W	70	2.8 V	Surface Mount	0.035 in	0.9 mm	Cool White	115 °	1414	1414 (3535 Metric)	100 mA	3.4 mm	0.138 in	3.5 mm	0.134 in	5700 K	300 mA	197 lm/W	55 lm
Lumileds L135-5090CA35000P1	14 °C/W	90	2.8 V	Surface Mount	0.035 in	0.9 mm	Cool White	115 °	1414	1414 (3535 Metric)	100 mA	3.4 mm	0.138 in	3.5 mm	0.134 in	5000 K	300 mA
Lumileds L135-6590CA35000P1	14 °C/W	90	2.8 V	Surface Mount	0.035 in	0.9 mm	Cool White	115 °	1414	1414 (3535 Metric)	100 mA	3.4 mm	0.138 in	3.5 mm	0.134 in	6500 K	300 mA
Lumileds L135-6580SA35000P1	14 °C/W	80	2.8 V	Surface Mount	0.035 in	0.9 mm	Cool White	115 °	1414	1414 (3535 Metric)	100 mA	3.4 mm	0.138 in	3.5 mm	0.134 in	6500 K	300 mA	190 lm/W	53 lm

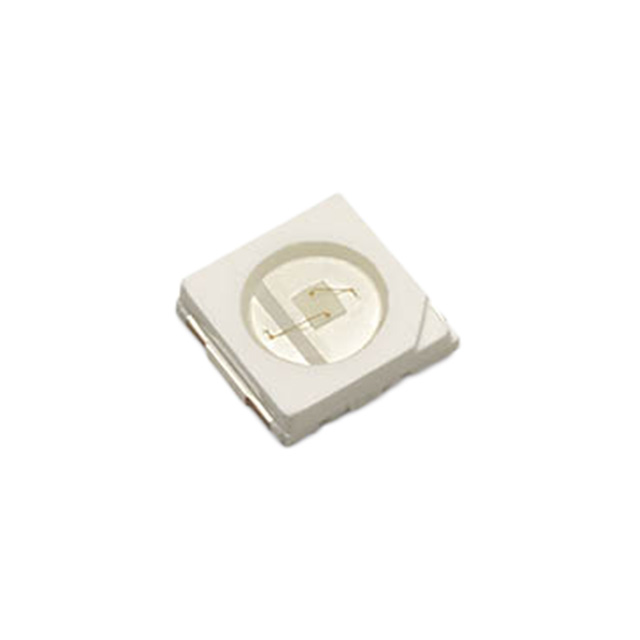

Lumileds L135-U450003500000			3.05 V	Surface Mount	0.035 in	0.9 mm	Blue	115 °	3535	1414 (3535 Metric)	100 mA	3.4 mm	0.138 in	3.5 mm	0.134 in		200 mA			448 nm	25 °C	143 mW	130 mW	155 mW
Lumileds L135-6590SA35000P1	14 °C/W	90	2.8 V	Surface Mount	0.035 in	0.9 mm	Cool White	115 °	1414	1414 (3535 Metric)	100 mA	3.4 mm	0.138 in	3.5 mm	0.134 in	6500 K	300 mA	161 lm/W	45 lm
Lumileds L135-6580CA35000P1	14 °C/W	80	2.8 V	Surface Mount	0.035 in	0.9 mm	Cool White	115 °	1414	1414 (3535 Metric)	100 mA	3.4 mm	0.138 in	3.5 mm	0.134 in	6500 K	300 mA	186 lm/W	52 lm
Lumileds L135-A589003500000	25 °C/W		3.05 V	Surface Mount	0.035 in	0.9 mm	Amber	115 °	3535	1414 (3535 Metric)	100 mA	3.4 mm	0.138 in	3.5 mm	0.134 in		200 mA				25 °C
