FA5S040H Series

Catalog

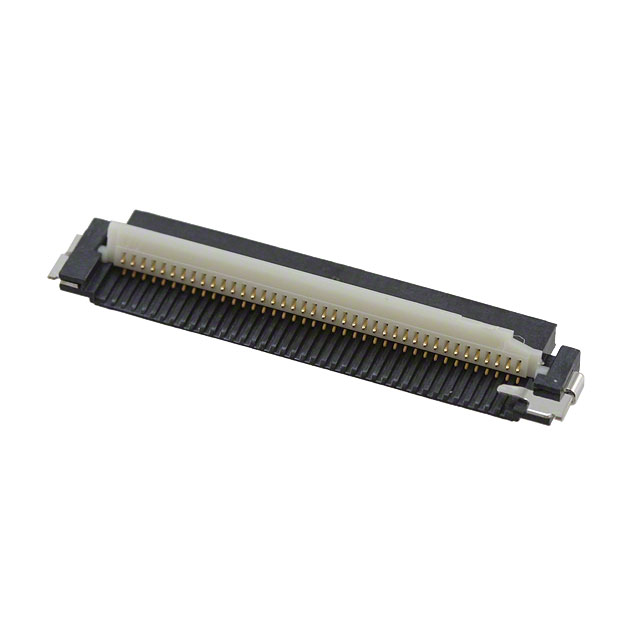

CONN FPC BOTTOM 40POS 0.5MM R/A

Part	Actuator Color	Housing Color	Mating Cycles	Current Rating (Amps)	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Housing Material	Number of Positions	Material Flammability Rating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector/Contact Type	Cable End Type	Flat Flex Type	Termination	Locking Feature	Actuator Material	Features	Pitch	Pitch	Contact Finish	FFC, FCB Thickness	Mounting Type
JAE Electronics FA5S040HP1	White	Black	20	0.8 A	1.45 mm	0.057 in	50 V	Glass Filled Liquid Crystal Polymer (LCP)	40	UL94 V-0	Copper Alloy	85 °C	-40 C	Contacts Bottom	Tapered	FPC	Solder	Flip Lock	Glass Filled Nylon Polyamide (PA)	Solder Retention Zero Insertion Force (ZIF)	0.02 "	0.5 mm	Gold	0.3 mm	Right Angle Surface Mount
JAE Electronics FA5S040HP1R3000	White	Black	20	0.8 A	1.45 mm	0.057 in	50 V	Glass Filled Liquid Crystal Polymer (LCP)	40	UL94 V-0	Copper Alloy	85 °C	-40 C	Contacts Bottom	Tapered	FPC	Solder	Flip Lock	Glass Filled Nylon Polyamide (PA)	Solder Retention Zero Insertion Force (ZIF)	0.02 "	0.5 mm	Gold	0.3 mm	Right Angle Surface Mount
