NST1602CL Series

Bipolar Transistor 160V, 1.5A NPN Low VCE(sat) Single

Catalog

Bipolar Transistor 160V, 1.5A NPN Low VCE(sat) Single

Part	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector (Ic) (Max) [Max]	Transistor Type	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Operating Temperature	Package / Case	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Frequency - Transition	Supplier Device Package	Mounting Type

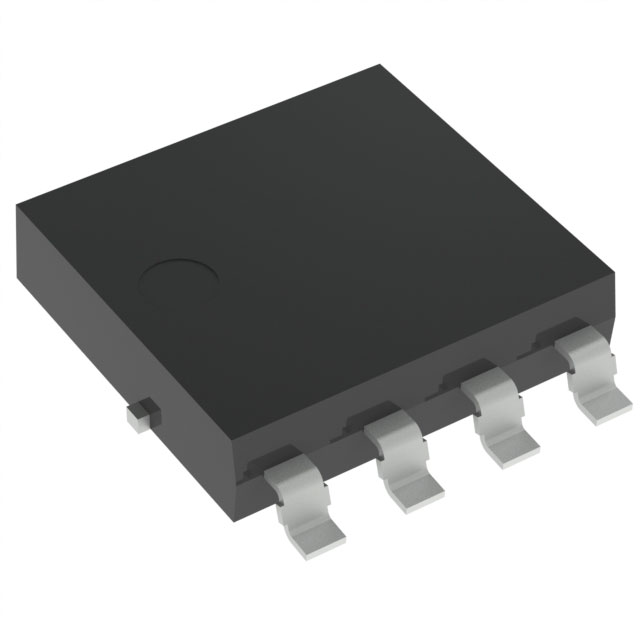

ON Semiconductor NST1602CLTWG	140	1.5 A	NPN	100 nA	800 mW	175 °C	8-LFPAK56 SOT-1205	140 mV	160 V	100 MHz	8-LFPAK	Surface Mount

Catalog

Bipolar Transistor 160V, 1.5A NPN Low VCE(sat) Single

Key Features

• Large current capacity

• Low collector-to-emitter saturation voltage

• High speed switching

• High allowable power consumption

Description

This device is bipolar junction transistor featuring high current, low saturation voltage, and high speed switching. Suitable for automotive applications, AEC-Q101 qualified, PAP capable.
