223794 Series
Micro-Fit+ Plug Housing, Single Row, 2 Circuits, UL 94V-0, Free Hanging, Glow-Wire Capable, Black
Manufacturer: Molex
Catalog
Micro-Fit+ Plug Housing, Single Row, 2 Circuits, UL 94V-0, Free Hanging, Glow-Wire Capable, Black
Beta
⌘K
Micro-Fit+ Plug Housing, Single Row, 2 Circuits, UL 94V-0, Free Hanging, Glow-Wire Capable, Black
Micro-Fit+ Plug Housing, Single Row, 2 Circuits, UL 94V-0, Free Hanging, Glow-Wire Capable, Black
Micro-Fit+ Plug Housing, Single Row, 2 Circuits, UL 94V-0, Free Hanging, Glow-Wire Capable, Black
| Part | Fastening Type | Number of Rows | Connector Type | Number of Positions | Pitch [x] | Pitch [x] | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Termination | Mounting Type | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

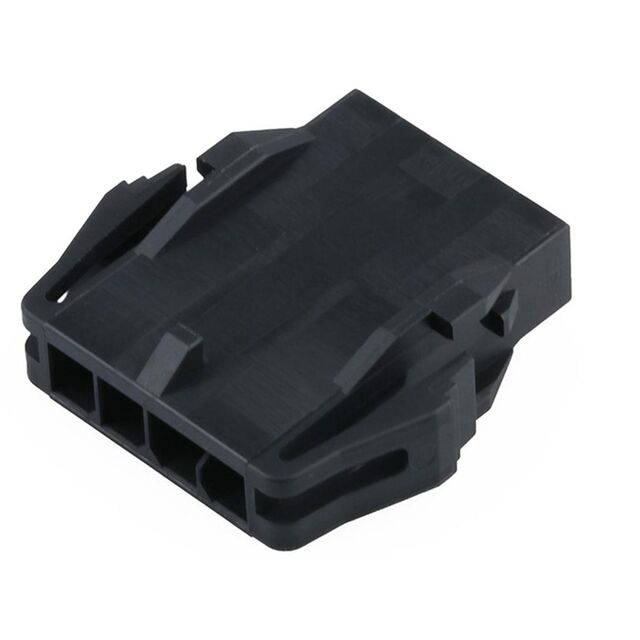

 Molex | Locking Ramp | 1 | Plug | 4 | 3 mm | 0.118 in | Black | -40 °C | 105 ░C | Male Pin | Crimp | Panel Mount Snap-In | Nylon Polyamide (PA) |

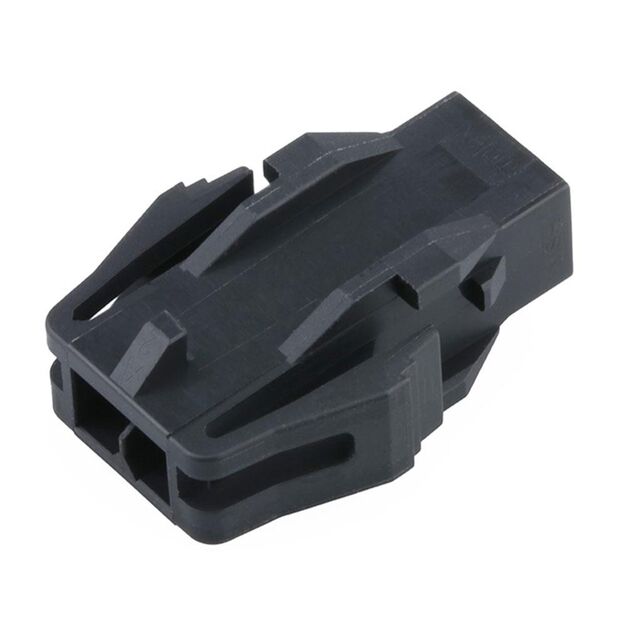

 Molex | Locking Ramp | 1 | Plug | 2 | 3 mm | 0.118 in | Black | -40 °C | 105 ░C | Male Pin | Crimp | Panel Mount Snap-In | Nylon Polyamide (PA) |

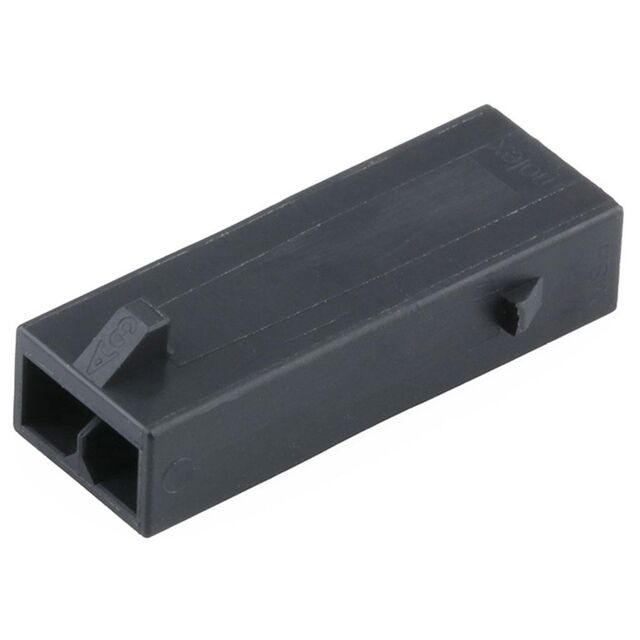

 Molex | Locking Ramp | 1 | Plug | 2 | 3 mm | 0.118 in | Black | -40 °C | 105 ░C | Male Pin | Crimp | Free Hanging (In-Line) | Nylon Polyamide (PA) |

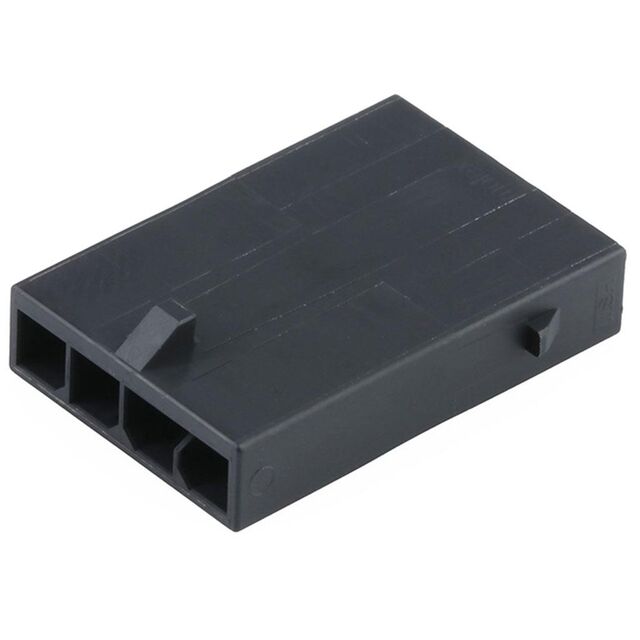

 Molex | Locking Ramp | 1 | Plug | 4 | 3 mm | 0.118 in | Black | -40 °C | 105 ░C | Male Pin | Crimp | Free Hanging (In-Line) | Nylon Polyamide (PA) |

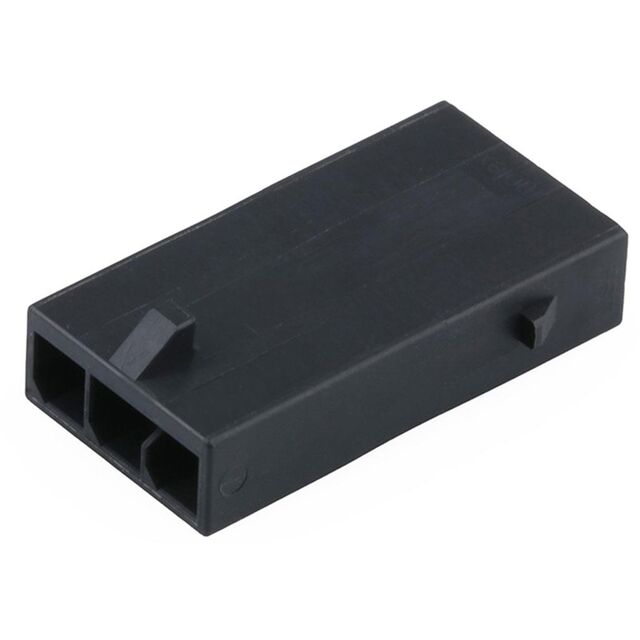

 Molex | Locking Ramp | 1 | Plug | 3 mm | 0.118 in | Black | -40 °C | 105 ░C | Male Pin | Crimp | Free Hanging (In-Line) | Nylon Polyamide (PA) | |

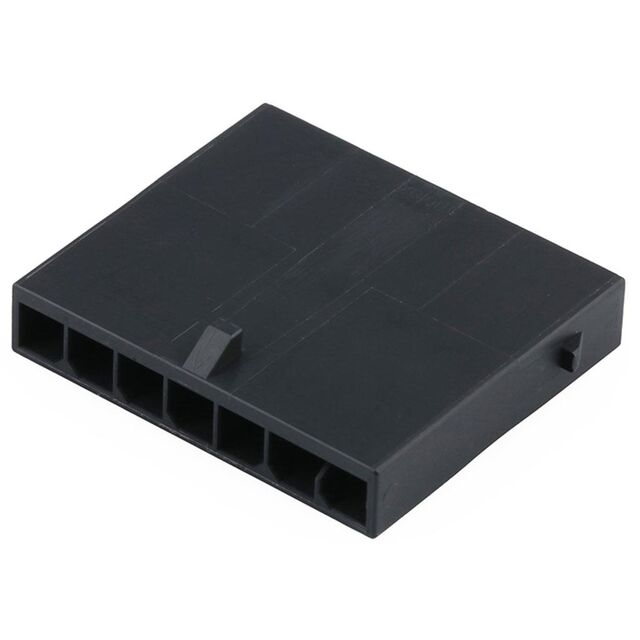

 Molex | Locking Ramp | 1 | Plug | 7 | 3 mm | 0.118 in | Black | -40 °C | 105 ░C | Male Pin | Crimp | Free Hanging (In-Line) | Nylon Polyamide (PA) |

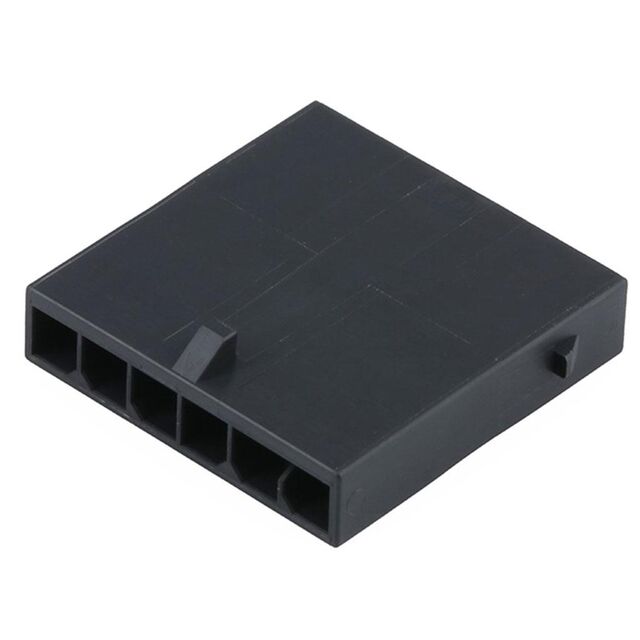

 Molex | Locking Ramp | 1 | Plug | 6 | 3 mm | 0.118 in | Black | -40 °C | 105 ░C | Male Pin | Crimp | Free Hanging (In-Line) | Nylon Polyamide (PA) |
