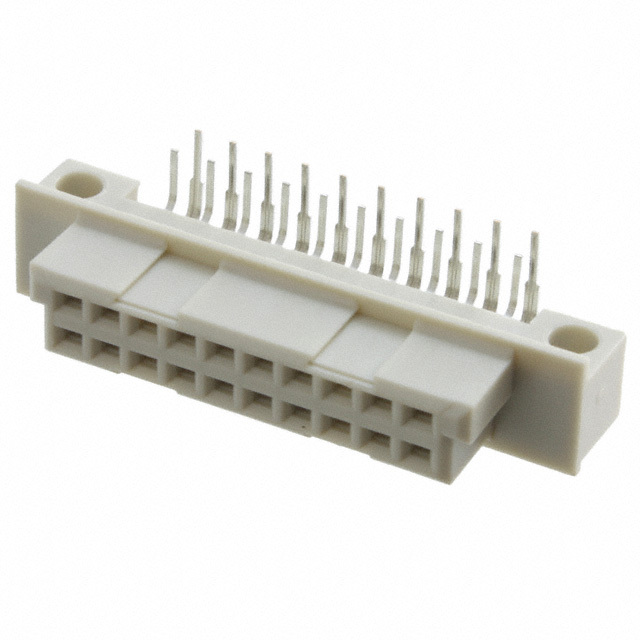

XC5F Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

CONN DIN RCPT 50POS PCB RA GOLD

Part	Current Rating (Amps)	Material Flammability Rating	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Termination	Style	Number of Positions Loaded	Connector Type	Pitch	Pitch	Contact Finish	Mounting Type	Number of Positions	Number of Rows [custom]
Omron Electronics Inc-EMC Div XC5F-5022-2	2 A	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	16 µin	0.41 µm	Solder	Q	All	Receptacle Female Sockets	0.1 "	2.54 mm	Gold	Right Angle Through Hole	50	2
Omron Electronics Inc-EMC Div XC5F-3232-2A	2 A	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C				Q		Receptacle Female Sockets	0.1 "	2.54 mm	Gold	Right Angle Through Hole		2
Omron Electronics Inc-EMC Div XC5F-0122	2 A	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	16 µin	0.41 µm	Solder	Q	All	Receptacle Female Sockets	0.1 "	2.54 mm	Gold	Right Angle Through Hole	100	2
Omron Electronics Inc-EMC Div XC5F-3232-2	2 A	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C				Q		Receptacle Female Sockets	0.1 "	2.54 mm	Gold	Right Angle Through Hole		2
Omron Electronics Inc-EMC Div XC5F-2032-2A	2 A	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C				Q		Receptacle Female Sockets	0.1 "	2.54 mm	Gold	Right Angle Through Hole	20	2
Omron Electronics Inc-EMC Div XC5F-3032-2	2 A	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	16 µin	0.41 µm	Solder	Q	All	Receptacle Female Sockets	0.1 "	2.54 mm	Gold	Right Angle Through Hole	30	2
Omron Electronics Inc-EMC Div XC5F-3222	2 A	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	16 µin	0.41 µm	Solder	Q	All	Receptacle Female Sockets	0.1 "	2.54 mm	Gold	Right Angle Through Hole		2
Omron Electronics Inc-EMC Div XC5F-4432-2A	2 A	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	125 °C	16 µin	0.41 µm	Solder	Q	All	Receptacle Female Sockets	0.1 "	2.54 mm	Gold	Right Angle Through Hole	44	2
