EB20 Series
Manufacturer: Adam Tech
Beta
⌘K
EURO BLOCK 3P
| Part | Screw Thread | Housing Material | Screw Material - Plating | Contact Material - Plating | Operating Temperature [Max] | Operating Temperature [Min] | Wire Termination | Number of Levels | Positions Per Level | Color | Voltage | Mounting Type | Current | Pitch | Pitch | Wire Gauge [Max] | Wire Gauge [Min] | Mating Orientation | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

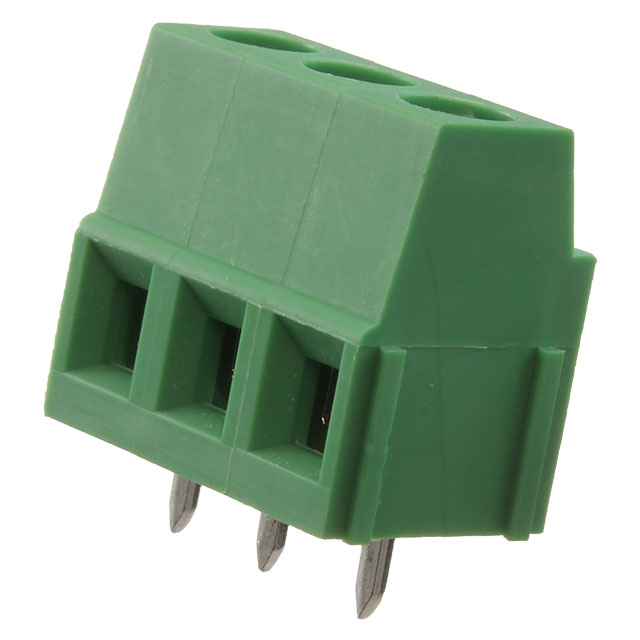

 Adam Tech | M2.5 | Thermoplastic | Steel - Zinc Plated | Brass - Tin Plated | 115 °C | -40 C | Screw - Rising Cage Clamp | 1 | 3 | Green | 300 VDC | Through Hole | 10 A | 0.197 in | 5 mm | 24 AWG | 12 AWG | Horizontal with Board | Interlocking (Side) |

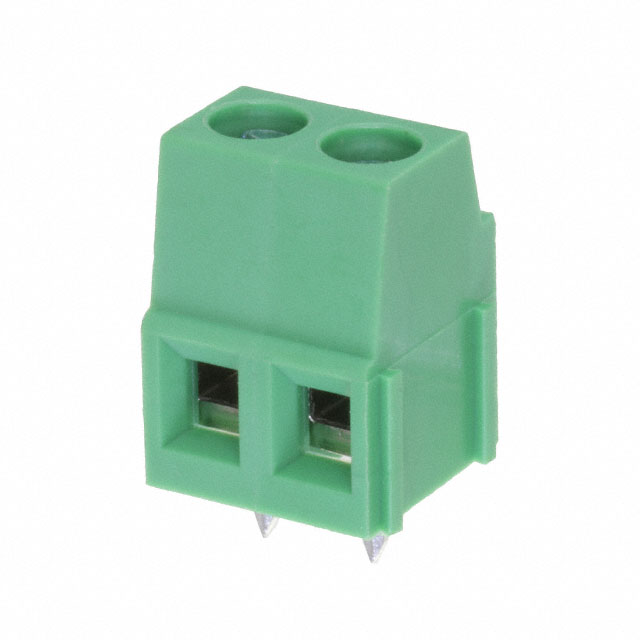

 Adam Tech | M2.5 | Thermoplastic | Steel - Zinc Plated | Brass - Tin Plated | 115 °C | -40 C | Screw - Rising Cage Clamp | 1 | 2 | Green | 300 VDC | Through Hole | 10 A | 0.197 in | 5 mm | 24 AWG | 12 AWG | Horizontal with Board | Interlocking (Side) |
