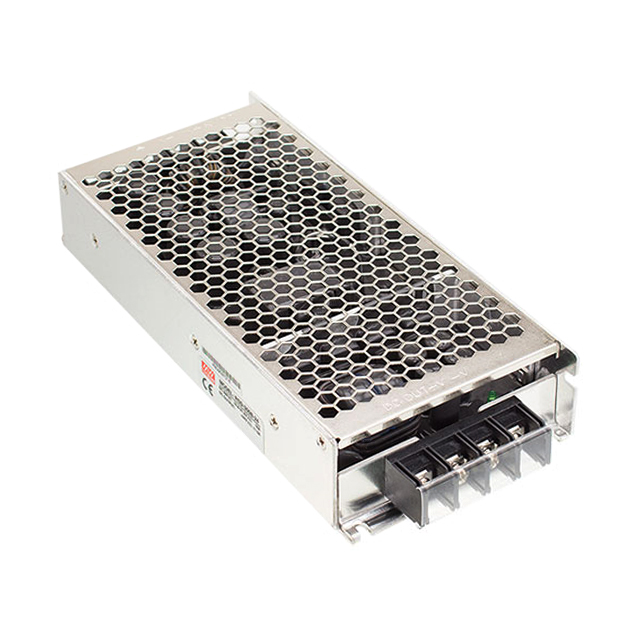

RSD-300 Series

Catalog

DC/DC CONVERTER 24V 300W

Part	Approval Agency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Voltage - Input (Max) [Max]	Type	Mounting Type	Number of Outputs	Voltage - Isolation	Applications	Voltage - Output 1	Power (Watts)	Current - Output (Max)
MEAN WELL USA Inc. RSD-300E-24	CE	12.5 A	25.2 V	216 mm	1.57 "	40 mm	8.5 "	3.8 in	96.5 mm	91 %	46.8 V	Enclosed	Chassis Mount	1	4000 V	ITE (Commercial) Railway	24 V	300 W
MEAN WELL USA Inc. RSD-300C-24	CE	12.5 A	33.6 V	216 mm	1.57 "	40 mm	8.5 "	3.8 in	96.5 mm	91.5 %	62.4 V	Enclosed	Chassis Mount	1	4000 V	ITE (Commercial) Railway	24 V	300 W
MEAN WELL USA Inc. RSD-300F-24	CE	12.5 A	50.4 V	216 mm	1.57 "	40 mm	8.5 "	3.8 in	96.5 mm	91 %	93.6 V	Enclosed	Chassis Mount	1	4000 V	ITE (Commercial) Railway	24 V	300 W
MEAN WELL USA Inc. RSD-300D-24	CE	12.5 A	67.2 V	216 mm	1.57 "	40 mm	8.5 "	3.8 in	96.5 mm	91.5 %	143 V	Enclosed	Chassis Mount	1	4000 V	ITE (Commercial) Railway	24 V	300 W
MEAN WELL USA Inc. RSD-300E-5	CE		25.2 V	216 mm	1.57 "	40 mm	8.5 "	3.8 in	96.5 mm	88 %	46.8 V	Enclosed	Chassis Mount	1	4000 V	ITE (Commercial) Railway	5 V	210 W	42 A
MEAN WELL USA Inc. RSD-300B-5	CE		16.8 V	216 mm	1.57 "	40 mm	8.5 "	3.8 in	96.5 mm	89 %	31.2 V	Enclosed	Chassis Mount	1	4000 V	ITE (Commercial) Railway	5 V	210 W	42 A
MEAN WELL USA Inc. RSD-300B-12	CE	22.5 A	16.8 V	216 mm	1.57 "	40 mm	8.5 "	3.8 in	96.5 mm		31.2 V	Enclosed	Chassis Mount	1	4000 V	ITE (Commercial) Railway	12 V	270 W
MEAN WELL USA Inc. RSD-300D-48	CE	6.3 A	67.2 V	216 mm	1.57 "	40 mm	8.5 "	3.8 in	96.5 mm	91.5 %	143 V	Enclosed	Chassis Mount	1	4000 V	ITE (Commercial) Railway	48 V	302 W
MEAN WELL USA Inc. RSD-300C-12	CE	25 A	33.6 V	216 mm	1.57 "	40 mm	8.5 "	3.8 in	96.5 mm	91 %	62.4 V	Enclosed	Chassis Mount	1	4000 V	ITE (Commercial) Railway	12 V	300 W
