845-040 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 40POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Number of Positions/Bay/Row	Pitch	Pitch	Color	Gender	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Read Out	Termination	Flange Feature [diameter]	Flange Feature [diameter]	Card Type	Number of Positions	Flange Feature	Termination Rows	Number of Rows	Number of Positions/Bay/Row [custom]	Features

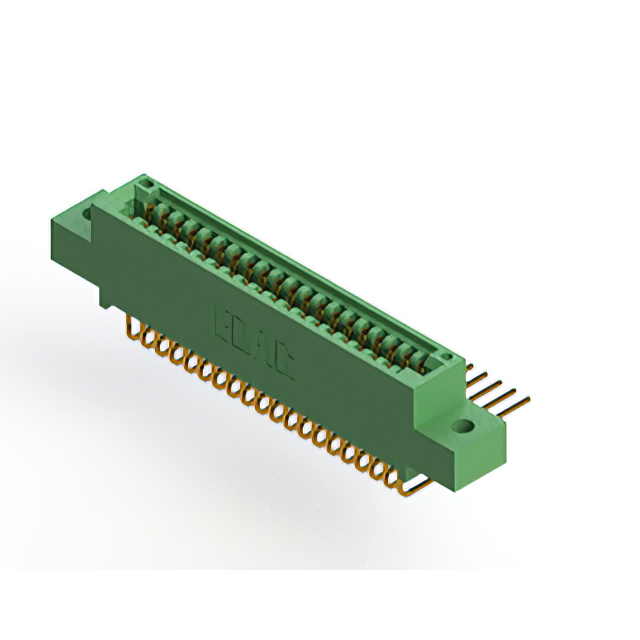

EDAC Inc. 845-040-559-502	Diallyl Phthalate (DAP)	2	20 Bay/Row	0.1 "	2.54 mm	Green	Female	Right Angle Through Hole	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Gold	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Dual	Solder	3.25 mm	0.128 "	Non Specified - Dual Edge	40

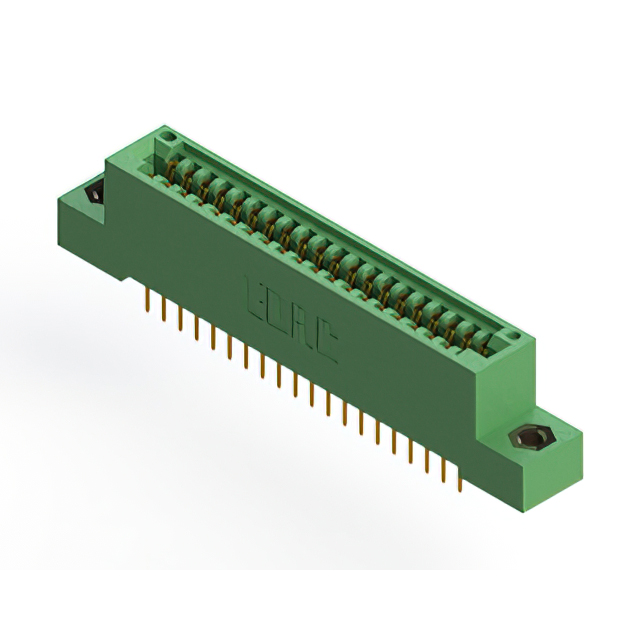

EDAC Inc. 845-040-524-207	Diallyl Phthalate (DAP)	2	20 Bay/Row	0.1 "	2.54 mm	Green	Female	Through Hole	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Gold	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Dual	Solder			Non Specified - Dual Edge	40	Flush Mount M3 Threaded Insert Top Opening

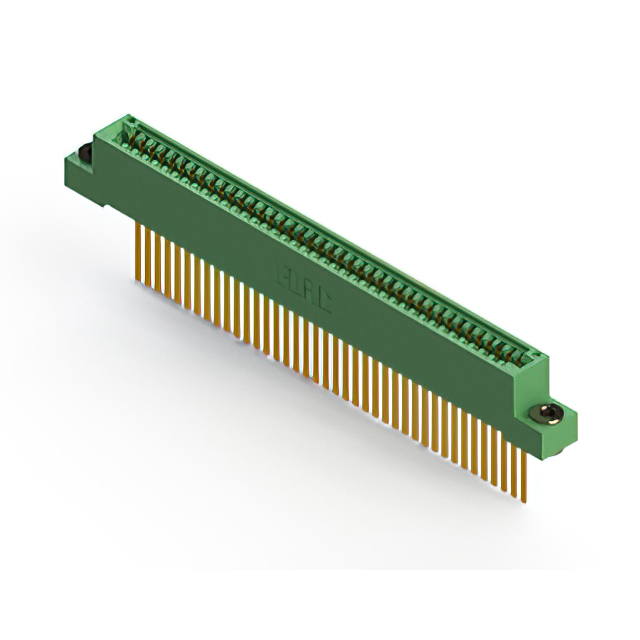

EDAC Inc. 845-040-544-103	Diallyl Phthalate (DAP)			0.1 "	2.54 mm	Green	Female	Through Hole	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm		Gold	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Single	Wire Wrap	2.95 mm	0.116 "	Non Specified - Single Edge	40	Floating Bobbin Flush Mount	1	1	40

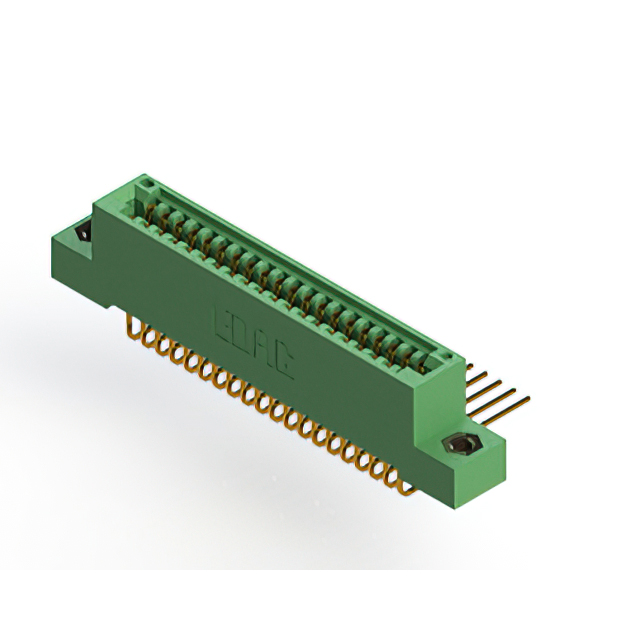

EDAC Inc. 845-040-559-207	Diallyl Phthalate (DAP)	2	20 Bay/Row	0.1 "	2.54 mm	Green	Female	Right Angle Through Hole	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Gold	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Dual	Solder			Non Specified - Dual Edge	40	Flush Mount M3 Threaded Insert Top Opening

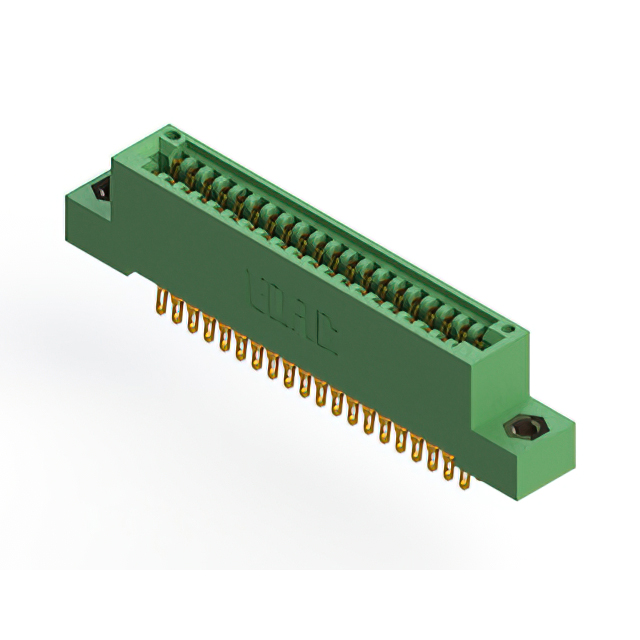

EDAC Inc. 845-040-555-207	Diallyl Phthalate (DAP)	2	20 Bay/Row	0.1 "	2.54 mm	Green	Female	Board Edge Straddle Mount	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Gold	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Dual	Solder			Non Specified - Dual Edge	40	Flush Mount M3 Threaded Insert Top Opening				Card Extender
EDAC Inc. 845-040-523-408	Diallyl Phthalate (DAP)			0.1 "	2.54 mm	Green	Female	Through Hole	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm		Gold	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Single	Solder			Non Specified - Single Edge	40	4-40 Threaded Insert Top Mount Opening	1	1	40

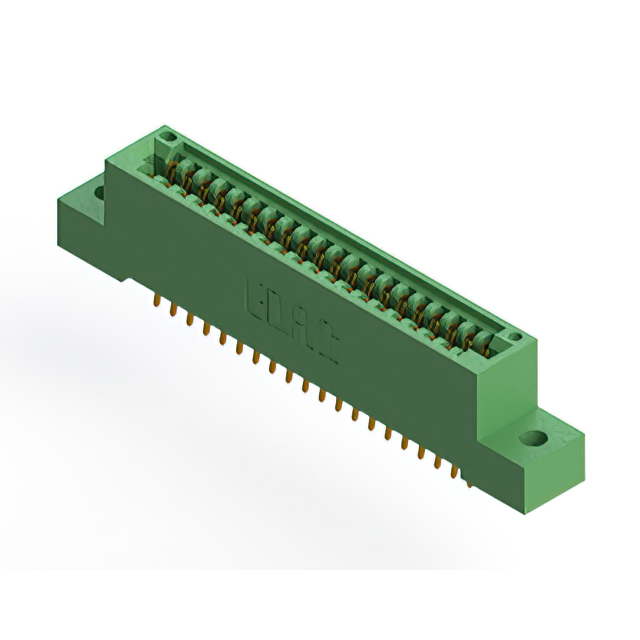

EDAC Inc. 845-040-556-202	Diallyl Phthalate (DAP)	2	20 Bay/Row	0.1 "	2.54 mm	Green	Female	Board Edge Straddle Mount	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Gold	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Dual	Solder	3.25 mm	0.128 "	Non Specified - Dual Edge	40	Flush Mount Top Opening Unthreaded				Card Extender

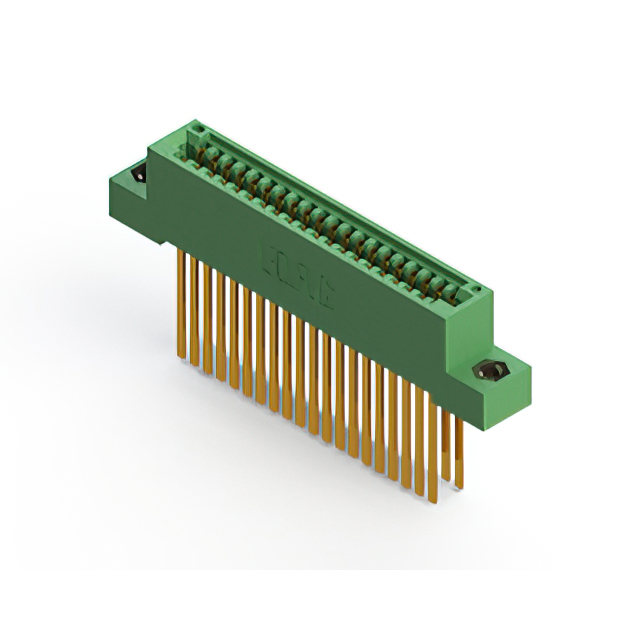

EDAC Inc. 845-040-544-208	Diallyl Phthalate (DAP)	2	20 Bay/Row	0.1 "	2.54 mm	Green	Female	Through Hole	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Gold	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Dual	Wire Wrap			Non Specified - Dual Edge	40	4-40 Flush Mount Threaded Insert Top Opening

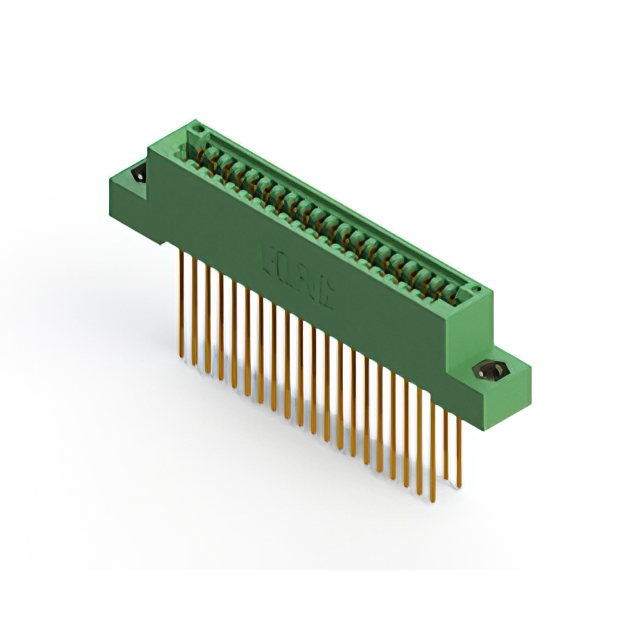

EDAC Inc. 845-040-541-208	Diallyl Phthalate (DAP)	2	20 Bay/Row	0.1 "	2.54 mm	Green	Female	Through Hole	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Gold	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Dual	Wire Wrap			Non Specified - Dual Edge	40	4-40 Flush Mount Threaded Insert Top Opening

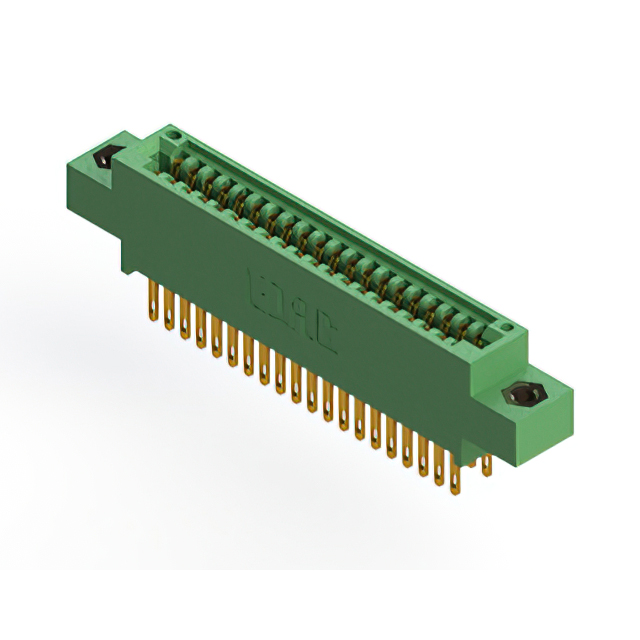

EDAC Inc. 845-040-500-807	Diallyl Phthalate (DAP)	2	20 Bay/Row	0.1 "	2.54 mm	Green	Female	Through Hole	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Gold	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Dual	Solder Eyelet(s)			Non Specified - Dual Edge	40	M3 Threaded Insert Top Mount Opening
