FI4D008 Series
Manufacturer: Belden Inc.
Beta
⌘K

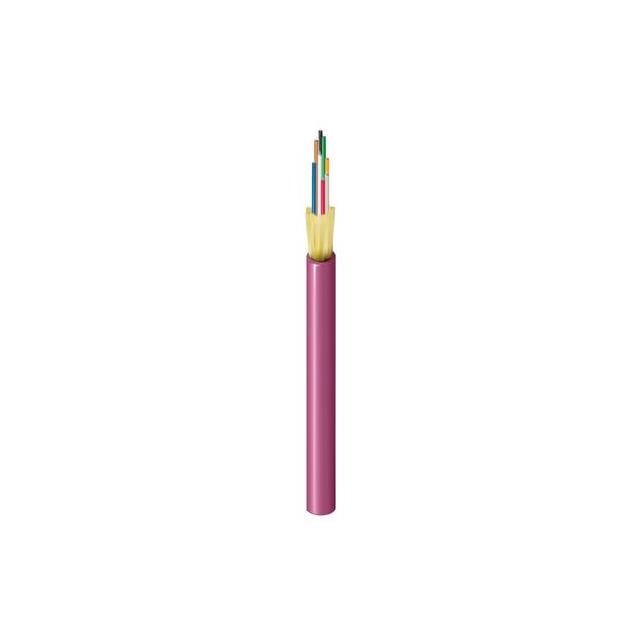

CBL FIBER OPTIC 125UM MULTIMODE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Core Diameter [diameter] | Jacket Color | Tensile Strength | Style | Features | Type | Cladding Diameter [diameter] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | -20 ░C | 70 °C | 0.235 " | 5.97 mm | Poly-Vinyl Chloride (PVC) | 50 µm | Violet | 20.4 kg | Multiple Fibers | 8 Fibers Rip Cord | Multimode | 125 µm | OFNR |
 Belden Inc. | 0 °C | 70 °C | 0.22 in | 5.59 mm | Poly-Vinyl Chloride (PVC) | 50 µm | Aqua | 20.4 kg | Multiple Fibers | 8 Fibers Rip Cord | Multimode | 125 µm | OFNP |
Belden Inc. | -20 ░C | 70 °C | 0.235 " | 5.97 mm | Poly-Vinyl Chloride (PVC) | 50 µm | Aqua | 20.4 kg | Multiple Fibers | 8 Fibers Rip Cord | Multimode | 125 µm | OFNR |
Belden Inc. | 0 °C | 70 °C | 0.22 in | 5.59 mm | Poly-Vinyl Chloride (PVC) | 50 µm | Violet | 20.4 kg | Multiple Fibers | 8 Fibers Rip Cord | Multimode | 125 µm | OFNP |
