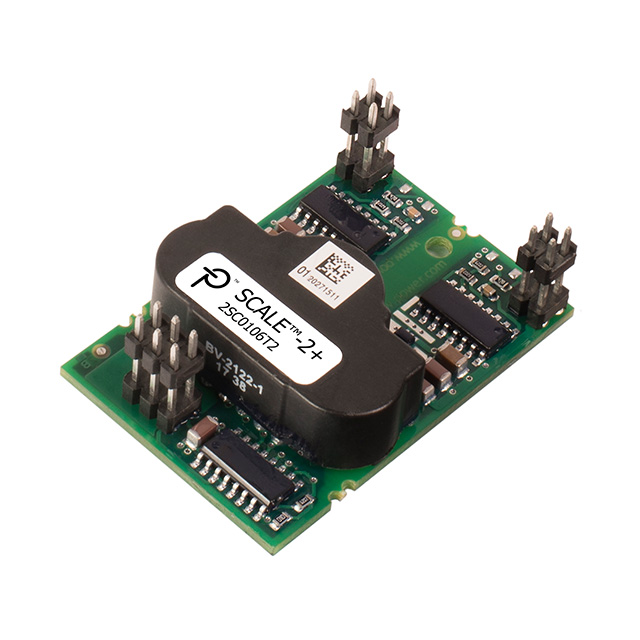

2SC0106 Series
Manufacturer: POWER INTEGRATIONS
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
IC GATE DRVR HALF-BRIDGE MODULE
| Part | Rise Time (Typ) | Fall Time (Typ) | Current - Peak Output (Source) | Current - Peak Output (Sink) | Number of Drivers | Gate Type | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Operating Temperature (Max) | Operating Temperature (Min) | Package Name | Channel Type | Driven Configuration | Mounting Type | High Side Voltage - Max (Bootstrap) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 POWER INTEGRATIONS | 20 ns | 13 ns | 6 A | 6 A | 2 | IGBT | 14.5 V | 15.5 V | 105 °C | -40 °C | Module | Independent | Half-Bridge | Surface Mount | 1.2 kV | Module |
