Messerleiste Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

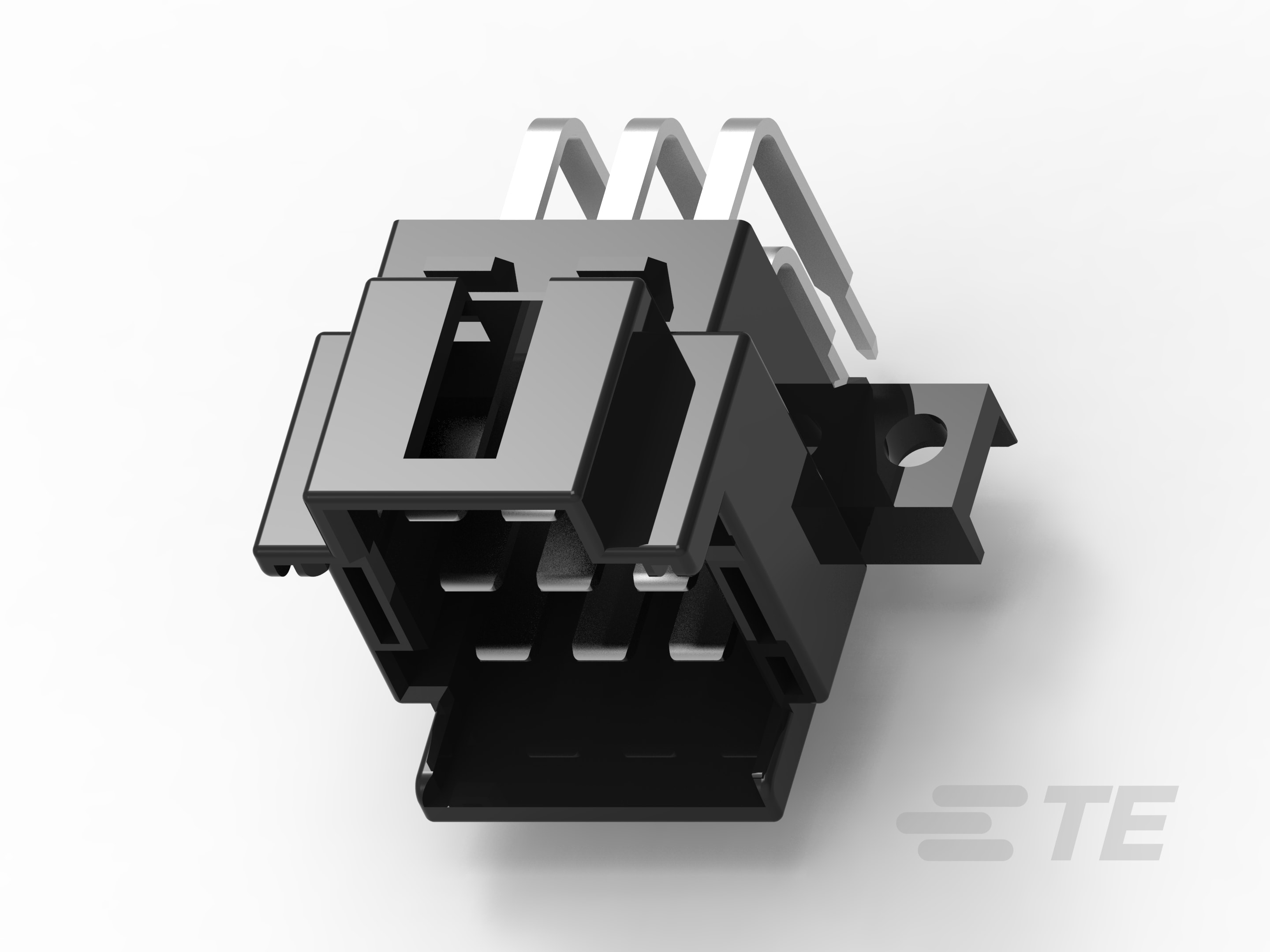

HEADERS & WIRE HOUSINGS MESSERLEISTE 9P
| Part | Features | Contact Material | Contact Length - Post | Contact Length - Post | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Number of Positions | Contact Finish - Post | Number of Positions Loaded | Fastening Type | Contact Shape | Voltage Rating | Material Flammability Rating | Mounting Type | Connector Type | Insulation Color | Style | Termination | Number of Rows [custom] | Insulation Material | Shrouding | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Mounting Flange | Copper Alloy | 0.118 in | 3 mm | 0.217 in | 5.5 mm | Tab | 25.7 mm | 1.012 " | -30 ░C | 100 °C | 0.197 " | 5 mm | 9 | Silver | All | Latch Holder | Rectangular | 28 VDC | UL94 HB | Right Angle Through Hole | Header | Black | Board to Cable/Wire | Solder | 3 | Glass Filled Nylon 6/6 Polyamide (PA66) | Shrouded - 4 Wall | Silver |
