THS404 Series

Catalog

IC OPAMP VFB 1 CIRCUIT 8HVSSOP

Part	Current - Supply	Amplifier Type	Number of Circuits	Current - Input Bias	Operating Temperature [Max]	Operating Temperature [Min]	-3db Bandwidth	Current - Output / Channel	Slew Rate	Supplier Device Package	Package / Case	Package / Case [custom]	Mounting Type	Voltage - Input Offset	Voltage - Supply Span (Max) [Max]	Package / Case [y]	Package / Case [x]	Output Type	Board Type	Utilized IC / Part	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Current - Supply (Main IC)	Channels per IC	Supplied Contents
Texas Instruments THS4041CDGN	8 mA	Voltage Feedback	1	2.5 µA	70 °C	0 °C	165 MHz	100 mA	400 V/µs	8-HVSSOP	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	Surface Mount	2.5 mV	32 V
Texas Instruments THS4042CDR	8 mA	Voltage Feedback	2	2.5 µA	70 °C	0 °C	165 MHz	100 mA	400 V/µs	8-SOIC	8-SOIC		Surface Mount	2.5 mV	32 V	3.9 mm	0.154 in
Texas Instruments THS4042IDRG4	8 mA	Voltage Feedback	2	2.5 µA	85 °C	-40 °C	165 MHz	100 mA	400 V/µs	8-SOIC	8-SOIC		Surface Mount	2.5 mV	32 V	3.9 mm	0.154 in
Texas Instruments THS4041IDGN	8 mA	Voltage Feedback	1	2.5 µA	85 °C	-40 °C	165 MHz	100 mA	400 V/µs	8-HVSSOP	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	Surface Mount	2.5 mV	32 V
Texas Instruments THS4042CDRG4	8 mA	Voltage Feedback	2	2.5 µA	70 °C	0 °C	165 MHz	100 mA	400 V/µs	8-SOIC	8-SOIC		Surface Mount	2.5 mV	32 V	3.9 mm	0.154 in

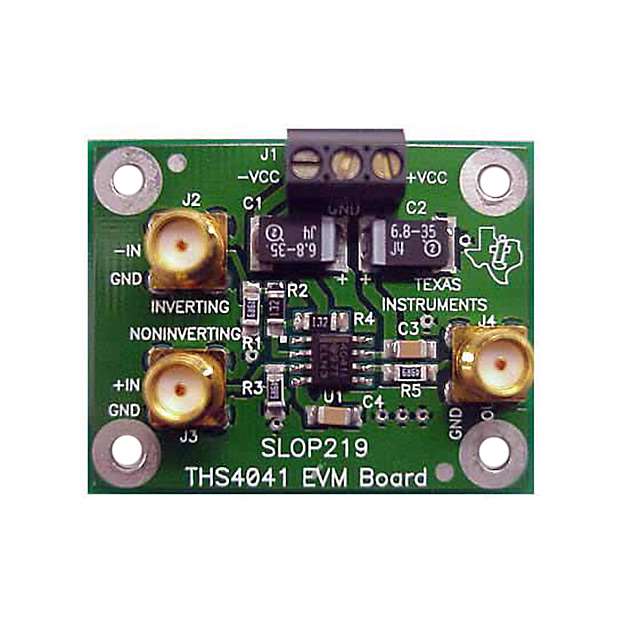

Texas Instruments THS4041EVM		Voltage Feedback					165 MHz	100 mA	400 V/µs									Single-Ended	Fully Populated	THS4041	16 V 32 V	-4.5 V 9 V	8 mA	1 - Single	Board(s)
