CDFR7W2 Series
Manufacturer: NorComp Inc.
Beta
⌘K

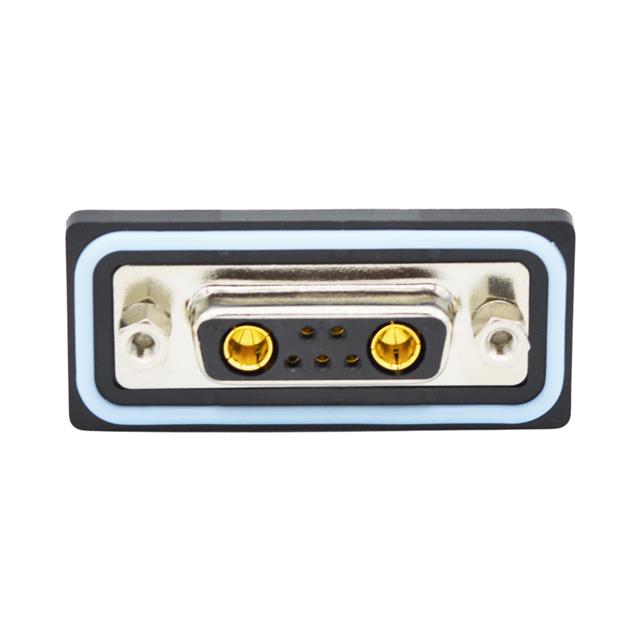

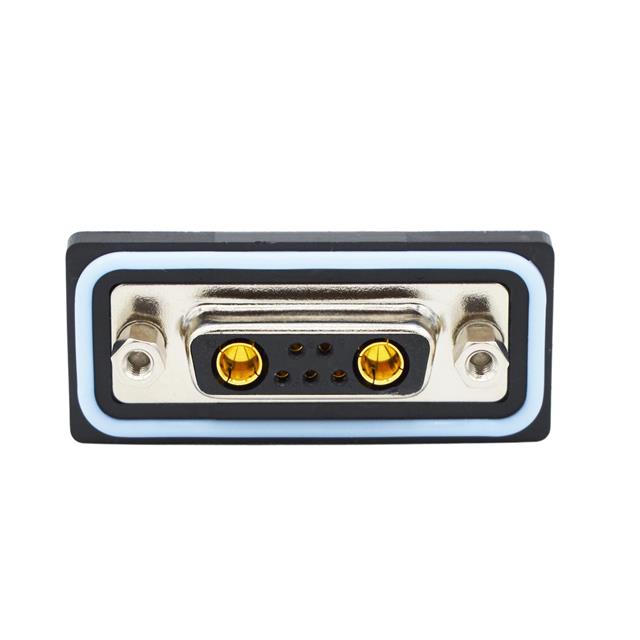

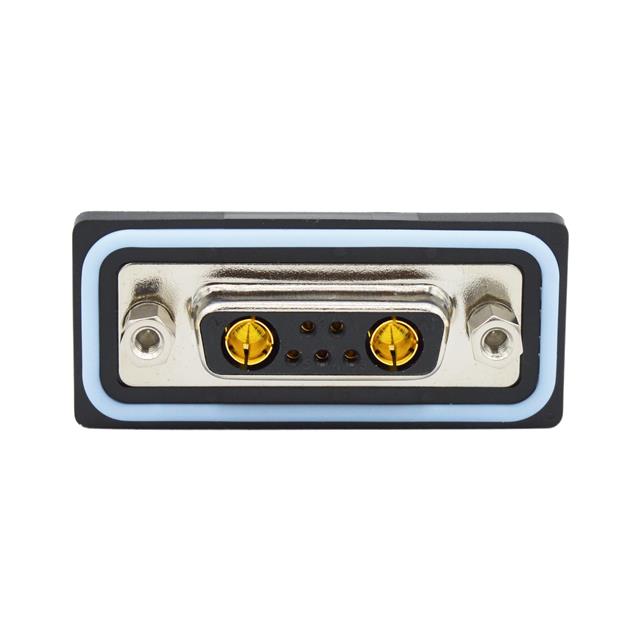

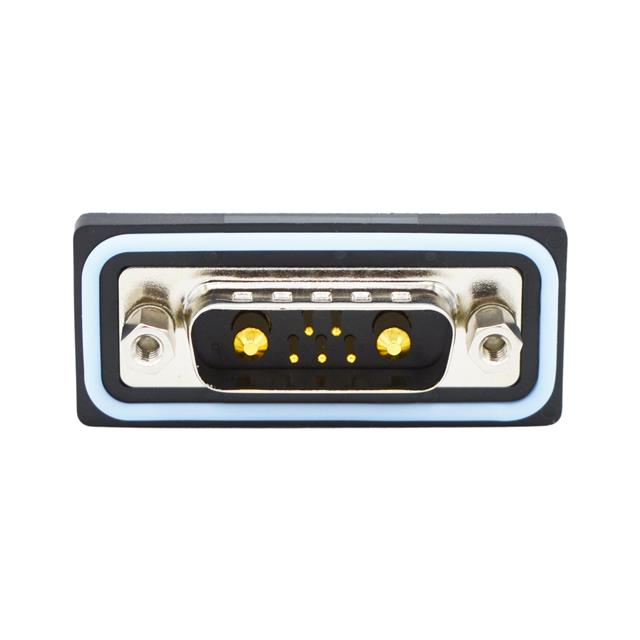

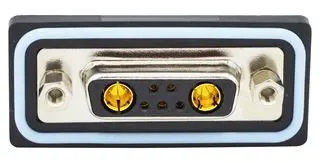

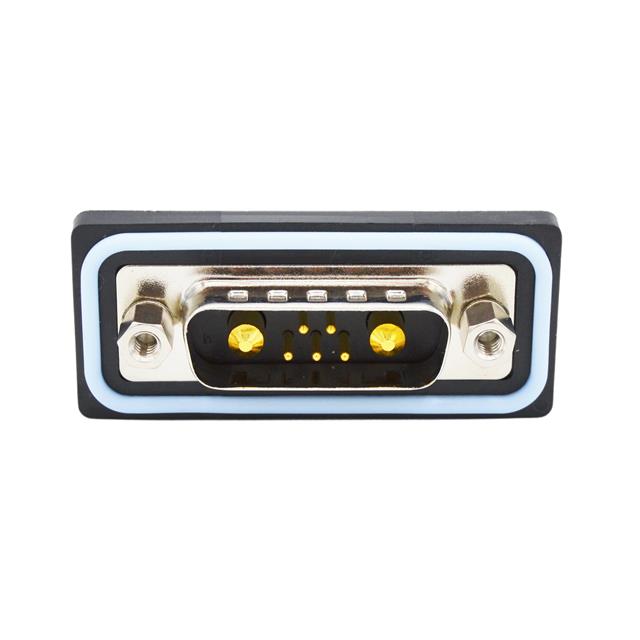

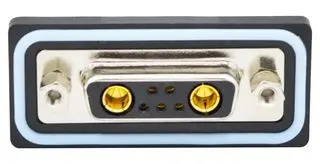

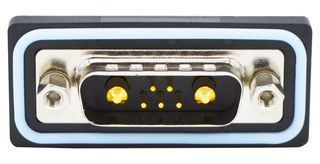

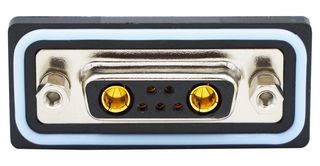

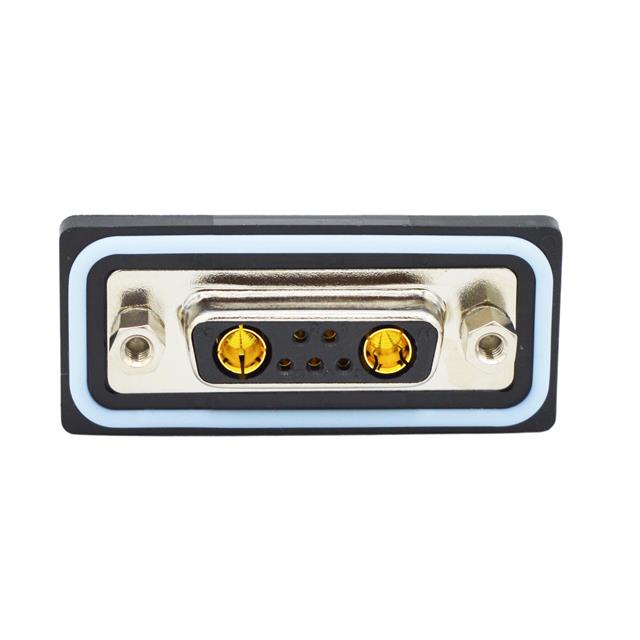

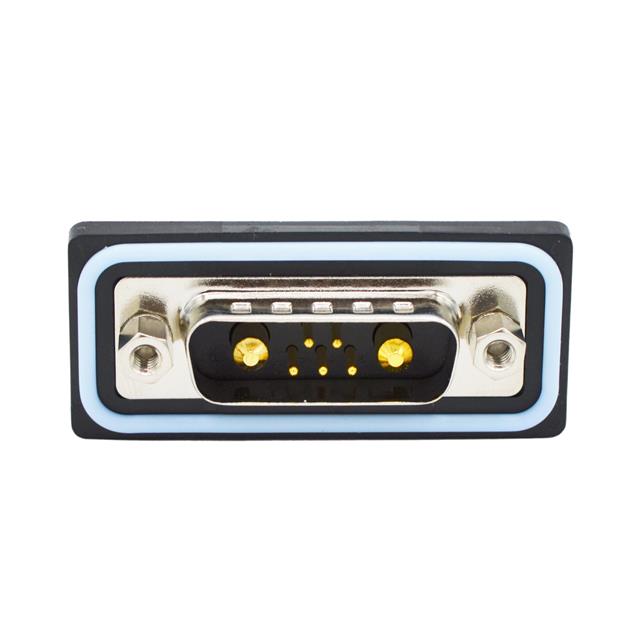

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DA-7W2, PLUG, 7 CONTACTS
| Part | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Dielectric Material | Features | Current Rating (Amps) | Shell Material, Finish | Contact Finish | Ingress Protection | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Rows [custom] | Number of Positions | Number of Positions [custom] | Number of Positions [custom] | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Mounting Type | Flange Feature | Termination | Connector Style | Material Flammability Rating | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Black | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | Grounding Indents | 5 A 40 A | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | Signal and Power | A DA | 2 | 7W2 | 2 | 7 | 5 | 2 | 30 Áin | 0.76 Ám | Plug Male Pins | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | Combo D-Sub | UL94 V-0 | ||
 NorComp Inc. | Black | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | Board Lock Mounting Brackets | 5 A 40 A | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | Signal and Power | A DA | 2 | 7W2 | 2 | 7 | 5 | 2 | 30 Áin | 0.76 Ám | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | Combo D-Sub | UL94 V-0 | ||
 NorComp Inc. | Black | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | 5 A 40 A | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | Signal and Power | A DA | 2 | 7W2 | 2 | 7 | 5 | 2 | 30 Áin | 0.76 Ám | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | Combo D-Sub | UL94 V-0 | |||
 NorComp Inc. | Black | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | Board Lock Mounting Brackets | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | Signal and Power | A DA | 2 | 7W2 | 2 | 7 | 5 | 2 | 30 Áin | 0.76 Ám | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | Combo D-Sub | UL94 V-0 | 20A 5A | ||
 NorComp Inc. | Black | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | Signal and Power | A DA | 2 | 7W2 | 2 | 7 | 5 | 2 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | Combo D-Sub | UL94 V-0 | 20A 5A | Flash | ||||
 NorComp Inc. | Black | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | Grounding Indents | 5 A 40 A | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | Signal and Power | A DA | 2 | 7W2 | 2 | 7 | 5 | 2 | Plug Male Pins | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | Combo D-Sub | UL94 V-0 | Flash | |||
NorComp Inc. | Black | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | 5 A 40 A | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | Signal and Power | A DA | 2 | 7W2 | 2 | 7 | 5 | 2 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | Combo D-Sub | UL94 V-0 | Flash | ||||
 NorComp Inc. | Black | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | Board Lock Mounting Brackets | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | Signal and Power | A DA | 2 | 7W2 | 2 | 7 | 5 | 2 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | Combo D-Sub | UL94 V-0 | 20A 5A | Flash | |||
 NorComp Inc. | Black | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | Board Lock Mounting Brackets | 5 A 40 A | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | Signal and Power | A DA | 2 | 7W2 | 2 | 7 | 5 | 2 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | Combo D-Sub | UL94 V-0 | Flash | |||
 NorComp Inc. | Black | 85 °C | -25 °C | Brass | Polybutylene Terephthalate (PBT) | Board Lock Grounding Indents Mounting Brackets | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | Signal and Power | A DA | 2 | 7W2 | 2 | 7 | 5 | 2 | Plug Male Pins | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | Combo D-Sub | UL94 V-0 | 20A 5A | Flash |
