TOP254 Series

Catalog

AC/DC CONVERTER, FLYBACK, 85 VAC TO 265 VAC IN, 43 W, ESIP-7C-6

Part	Frequency - Switching	Supplier Device Package	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Power (Watts)	Output Isolation	Voltage - Breakdown	Duty Cycle	Mounting Type	Fault Protection	Package / Case	Package / Case
POWER INTEGRATIONS TOP254EG	66 kHz 132 kHz	eSIP-7C	6 Leads 7-SSIP Exposed Pad Formed Leads	-40 °C	150 °C	Flyback	62 W	Isolated	700 V	78 %	Through Hole	Current Limiting Over Temperature Over Voltage
POWER INTEGRATIONS TOP254EN	66 kHz 132 kHz	eSIP-7C	6 Leads 7-SSIP Exposed Pad Formed Leads	-40 °C	150 °C	Flyback	62 W	Isolated	700 V	78 %	Through Hole	Current Limiting Over Temperature Over Voltage

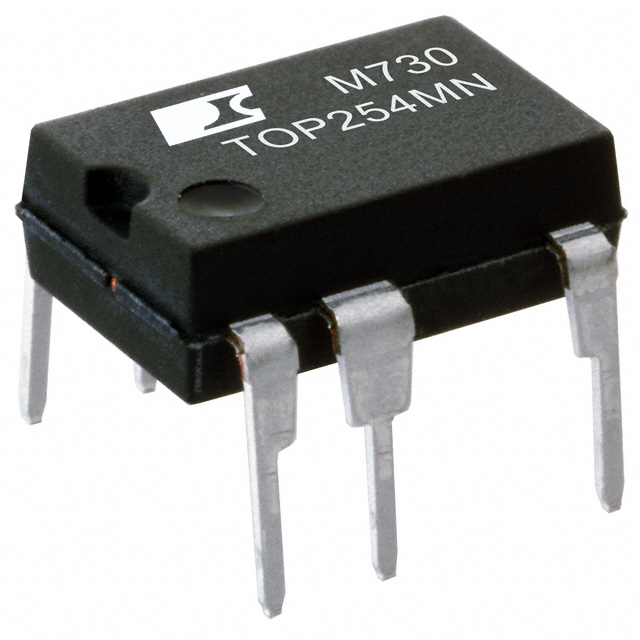

POWER INTEGRATIONS TOP254MN	66 kHz	SDIP-10C	10-SDIP 9 Leads	-40 °C	150 °C	Flyback	28 W	Isolated	700 V	78 %	Through Hole	Current Limiting Over Temperature Over Voltage	0.3 in	7.62 mm
