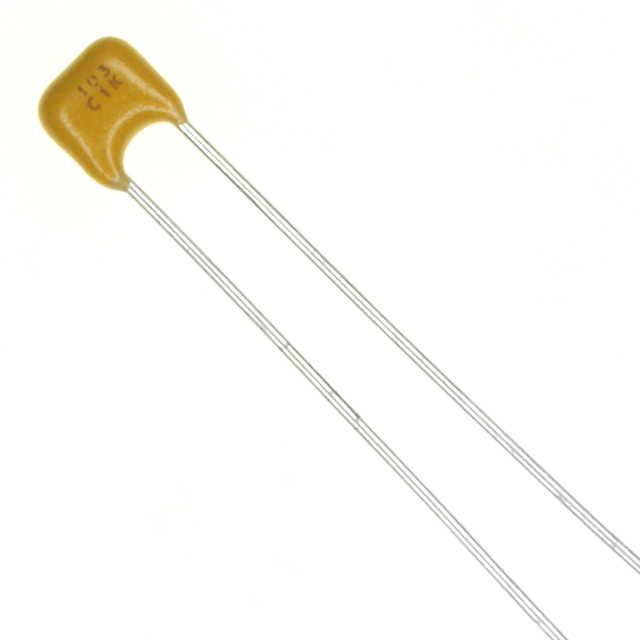

AR205F Series

Catalog

CAP CER RADIAL

Part	Capacitance	Lead Style	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Applications	Temperature Coefficient	Voltage - Rated	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Package / Case
KYOCERA AVX AR205F103K4RTR2	10000 pF	Straight	10 %	3.18 mm	0.2 in	5.08 mm	0.125 "	AEC-Q200	Automotive	X8R	50 VDC	Through Hole	5.08 mm	0.2 in	-55 C	150 °C	2.54 mm	0.1 in	Radial
KYOCERA AVX AR205F682K4R	6800 pF	Straight	10 %	3.18 mm	0.2 in	5.08 mm	0.125 "	AEC-Q200	Automotive	X8R	50 VDC	Through Hole	5.08 mm	0.2 in	-55 C	150 °C	2.54 mm	0.1 in	Radial
KYOCERA AVX AR205F102K4RTR1	0.001 µF	Straight	10 %	3.18 mm	0.2 in	5.08 mm	0.125 "	AEC-Q200	Automotive	X8R	50 VDC	Through Hole	5.08 mm	0.2 in	-55 C	150 °C	2.54 mm	0.1 in	Radial
KYOCERA AVX AR205F104K4RTR2	100000 pF	Straight	10 %	3.18 mm	0.2 in	5.08 mm	0.125 "	AEC-Q200	Automotive	X8R	50 VDC	Through Hole	5.08 mm	0.2 in	-55 C	150 °C	2.54 mm	0.1 in	Radial
KYOCERA AVX AR205F334K4R	0.33 µF	Straight	10 %	3.18 mm	0.2 in	5.08 mm	0.125 "	AEC-Q200	Automotive	X8R	50 VDC	Through Hole	5.08 mm	0.2 in	-55 C	150 °C	2.54 mm	0.1 in	Radial
KYOCERA AVX AR205F104K4R	100000 pF	Straight	10 %	3.18 mm	0.2 in	5.08 mm	0.125 "	AEC-Q200	Automotive	X8R	50 VDC	Through Hole	5.08 mm	0.2 in	-55 C	150 °C	2.54 mm	0.1 in	Radial
KYOCERA AVX AR205F103K4RTR2-QM	10000 pF	Straight	10 %	3.18 mm	0.2 in	5.08 mm	0.125 "	AEC-Q200	Automotive	X8R	50 VDC	Through Hole	5.08 mm	0.2 in	-55 C	150 °C	2.54 mm	0.1 in	Radial
KYOCERA AVX AR205F102K4R	0.001 µF	Straight	10 %	3.18 mm	0.2 in	5.08 mm	0.125 "	AEC-Q200	Automotive	X8R	50 VDC	Through Hole	5.08 mm	0.2 in	-55 C	150 °C	2.54 mm	0.1 in	Radial
KYOCERA AVX AR205F472K4R-SCC	0.0047 µF	Straight	10 %	3.18 mm	0.2 in	5.08 mm	0.125 "	AEC-Q200	Automotive	X8R	50 VDC	Through Hole	5.08 mm	0.2 in	-55 C	150 °C	2.54 mm	0.1 in	Radial
