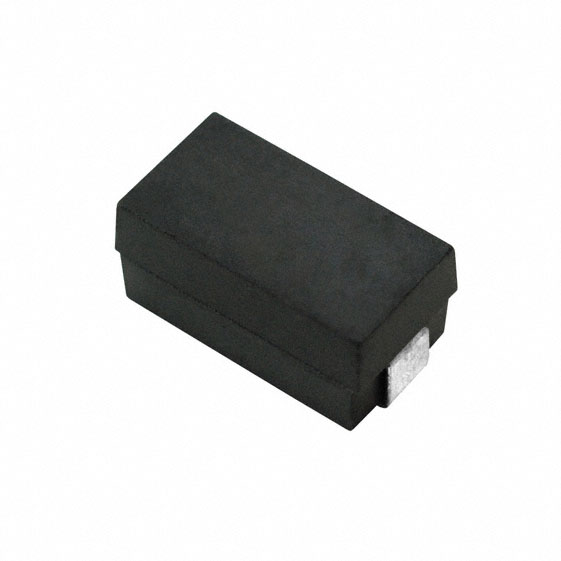

P3519R Series

Manufacturer: Delevan

Catalog

POWER INDUCTORS - SMD 2.2UH 0.048 OHMS 2.47A 5%

Part	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Tolerance	Inductance	Type	Mounting Type	Current - Saturation (Isat)	Material - Core	Inductance Frequency - Test	Current Rating (Amps)	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR)
Delevan P3519R-222J	Unshielded	130 °C	-55 C	Nonstandard	5 %	2.2 µH	Drum Core Wirewound	Surface Mount	2.91 A	Ferrite	10 kHz	2.47 A	48 mOhm	0.185 "	4.7 mm	4.83 mm	0.19 in	9.09 mm	0.358 "
Delevan P3519R-122J	Unshielded	130 °C	-55 C	Nonstandard	5 %	1.2 µH	Drum Core Wirewound	Surface Mount	3.94 A	Ferrite	10 kHz	2.87 A	36 mOhm	0.185 "	4.7 mm	4.83 mm	0.19 in	9.09 mm	0.358 "
Delevan P3519R-272J	Unshielded	130 °C	-55 C	Nonstandard	5 %	2.7 µH	Drum Core Wirewound	Surface Mount	2.63 A	Ferrite	10 kHz	1.84 A	86 mOhm	0.185 "	4.7 mm	4.83 mm	0.19 in	9.09 mm	0.358 "
Delevan P3519R-224J	Unshielded	130 °C	-55 C	Nonstandard	5 %	220 µH	Drum Core Wirewound	Surface Mount	290 mA	Ferrite	10 kHz	244 mA	4.94 Ohm	0.185 "	4.7 mm	4.83 mm	0.19 in	9.09 mm	0.358 "
Delevan P3519R-394J	Unshielded	130 °C	-55 C	Nonstandard	5 %	390 µH	Drum Core Wirewound	Surface Mount	220 mA	Ferrite	10 kHz	169 mA		0.185 "	4.7 mm	4.83 mm	0.19 in	9.09 mm	0.358 "	10.29 Ohm
Delevan P3519R-155J	Unshielded	130 °C	-55 C	Nonstandard	5 %	1.5 mH	Drum Core Wirewound	Surface Mount	110 mA	Ferrite	10 kHz	0.095 A		0.185 "	4.7 mm	4.83 mm	0.19 in	9.09 mm	0.358 "	32.75 Ohm
