Mezalok HSLF Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

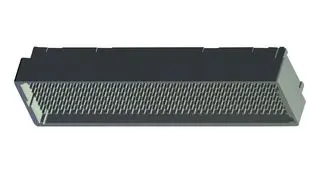

MEZZANINE CONNECTOR, HEADER, 1.27 MM, 8 ROWS, 320 CONTACTS, SURFACE MOUNT STRAIGHT

Part	Height Above Board [z]	Height Above Board [z]	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Mounting Type	Number of Positions	Number of Rows	Contact Finish	Mated Stacking Heights	Contact Shape	Shrouding	Contact Type	Contact Material	Fastening Type	Insulation Color	Insulation Material	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Row Spacing - Mating	Row Spacing - Mating
TE Connectivity AMP Connectors 2102429-1	0.36 in	9.14 mm	Array Male Pins	50 µin	1.27 µm	0.05 in	1.27 mm	Surface Mount	320	8	Gold	10 mm 12 mm 15 mm 18 mm
TE Connectivity AMP Connectors 2102079-1			Header					Surface Mount	60	6			Square	Shrouded - 4 Wall	Male Pin	Phosphor Bronze	Push-Pull	Natural	Liquid Crystal Polymer (LCP)	All	1.27 mm	0.05 in	Gold	9.14 mm	0.36 in	Tin-Lead	Pick and Place	50 µin	1.27 µm	Solder	0.05 in	1.27 mm
TE Connectivity AMP Connectors 2102060-1			Header					Surface Mount	114	6			Square	Shrouded - 4 Wall	Male Pin	Phosphor Bronze	Push-Pull	Natural	Liquid Crystal Polymer (LCP)	All	1.27 mm	0.05 in	Gold	9.14 mm	0.36 in	Tin-Lead	Pick and Place	50 µin	1.27 µm	Solder	0.05 in	1.27 mm
TE Connectivity AMP Connectors 2102060-2			Header					Surface Mount	114	6			Square	Shrouded - 4 Wall	Male Pin	Phosphor Bronze	Push-Pull	Natural	Liquid Crystal Polymer (LCP)	All	1.27 mm	0.05 in	Gold	9.14 mm	0.36 in	Tin	Pick and Place	50 µin	1.27 µm	Solder	0.05 in	1.27 mm
TE Connectivity AMP Connectors 2102079-2	0.36 in	9.14 mm	Array Male Pins	50 µin	1.27 µm	0.05 in	1.27 mm	Surface Mount	60	6	Gold	10 mm 12 mm 18 mm															Pick and Place
