Local Metered Series

Catalog

POWER DISTRIBUTION, SINGLE PHASE, 10 OUTLETS, 240 V, 20 A, 165 MM, 444 MM, 3.7 M

Part	AC Outlets	Voltage - Input [Min]	Voltage - Input [Max]	Connector - AC Input	Current - Max [Max]	Mounting Type	Housing Material	Type	Approval Agency	Connector - AC Output	Cord Length	Cord Length	Region Utilized	Features	Voltage - Input	Overload Protection	Weight [custom]	Weight [custom]	Weight	Weight
Eaton Tripp Lite PDUMH20HV	10	200 VDC	240 V	NEMA L6-20P	20 A	Rack Horizontal	Steel	PDU (Power Distribution Unit)	CE NOM UL	C19 (2) IEC 320-C13 (8)	3.66 m	12 ft	North America	Load Meter
Eaton Tripp Lite PDUMH15ATS	8					Rack Horizontal	Metal	PDU (Power Distribution Unit)	CSA UL	NEMA 5-15R (8)	3.66 m	12 ft	North America	Dual Load Meters Dual Power Input for Redundant Power Supplies	120 V	None
Eaton Tripp Lite PDUMH15HVAT	10			IEC 320-C14 (2)	10 A	Rack Mount	Steel	PDU (Power Distribution Unit)	CE FCC GOST NOM UL	IEC 320-C13	3.66 m	12 ft	International	Auto Transfer Switch Load Meter	200 V 208 V 220 VDC 230 V 240 V	None	7.1 kg	15.6 lbs
Eaton Tripp Lite PDUMH15	13			NEMA 5-15P		Rack Horizontal	Steel	PDU (Power Distribution Unit)	CSA UL	NEMA 5-15R	4.57 m	15 ft	North America	Load Meter	120 V	Circuit Breaker(s)
Eaton Tripp Lite PDUMV15	16			NEMA 5-15P		Rack Vertical	Aluminum	PDU (Power Distribution Unit)	CSA UL	NEMA 5-15R	4.57 m	15 ft	North America	Load Meter	120 V	Circuit Breaker(s)	1.7 kg	3.8 lbs
Eaton Tripp Lite PDUMH15	13			NEMA 5-15P		Rack Horizontal	Steel	PDU (Power Distribution Unit)	CSA UL	NEMA 5-15R	4.57 m	15 ft	North America	Load Meter	120 V	Circuit Breaker(s)			2 kg	4.5 lbs
Eaton Tripp Lite PDUMV16HV	38			IEC 309	16 A	Rack Vertical	Aluminum	PDU (Power Distribution Unit)	CE GOST	C19 (6) IEC 320-C13 (32)	3.05 m	10 ft	International	Load Meter	230 V	None
Eaton Tripp Lite PDUMV20HV	38	200 VDC	240 V	NEMA L6-20P	20 A	Rack Vertical	Aluminum	PDU (Power Distribution Unit)	CE NOM UL	C19 (6) IEC 320-C13 (32)	3.05 m	10 ft	International	Load Meter
Eaton Tripp Lite PDUMH30HV	18			NEMA L6-30P	30 A	Rack Horizontal	Steel	PDU (Power Distribution Unit)	NOM UL	C19 (2) IEC 320-C13 (16)	3.66 m	12 ft	North America	Load Meter	208 V 240 V

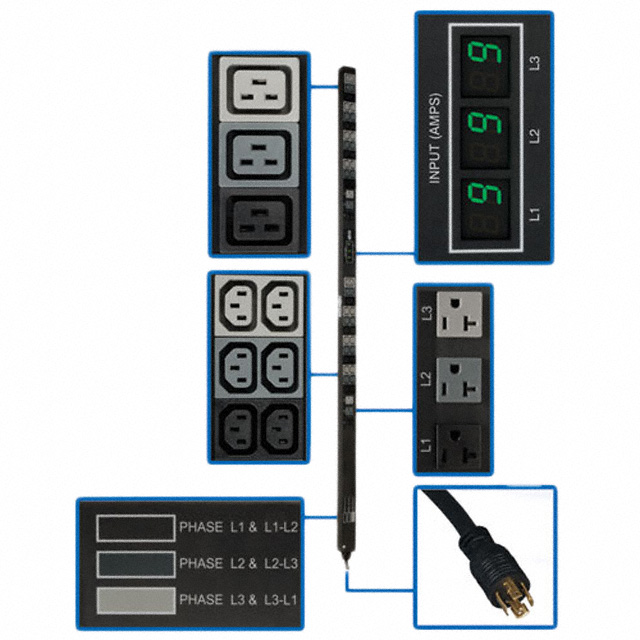

Eaton Tripp Lite PDU3MV6L2120	48			NEMA L21-20P	16 A	Rack Vertical	Steel	PDU (Power Distribution Unit)	NOM UL	C19 (6) IEC 320-C13 (36) NEMA 5-20R (6)	1.83 m	6 ft		Load Meter	208 V	Circuit Breaker(s)
