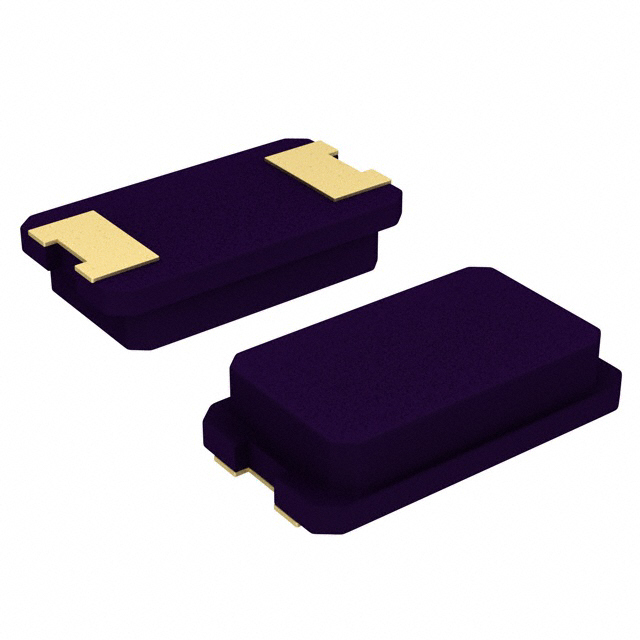

ABM7 Series

Catalog

CRYSTAL 33MHZ ±20PPM (TOL) ±30PPM (STABILITY) 18PF FUND 50OHM 2-PIN MINI-CSMD T/R

Part	Package / Case	Mounting Type	Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Load Capacitance	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Frequency Stability	Operating Mode	ESR (Equivalent Series Resistance)	Frequency Tolerance	Operating Temperature [Max]	Operating Temperature [Min]
Abracon LLC ABM7-33.000MHZ-D2Y-T	2-SMD No Lead	Surface Mount	33 MHz	0.055 in	1.4 mm	18 pF	2-SMD	6	3.5	MHz Crystal	0.236 in	6 mm	0.138 in	3.5 mm	30 ppm	Fundamental	50 Ohms	20 ppm	85 °C	-40 C
Abracon LLC ABM7-12.000MHZ-D2Y-T	2-SMD No Lead	Surface Mount	12 MHz	0.055 in	1.4 mm	18 pF	2-SMD	6	3.5	MHz Crystal	0.236 in	6 mm	0.138 in	3.5 mm	30 ppm	Fundamental	60 Ohms	20 ppm	85 °C	-40 C
Abracon LLC ABM7-24.576MHZ-D2Y-T	2-SMD No Lead	Surface Mount	24.576 MHz	0.055 in	1.4 mm	18 pF	2-SMD	6	3.5	MHz Crystal	0.236 in	6 mm	0.138 in	3.5 mm	30 ppm	Fundamental	50 Ohms	20 ppm	85 °C	-40 C
Abracon LLC ABM7-27.000MHZ-D2Y-T	2-SMD No Lead	Surface Mount	27 MHz	0.055 in	1.4 mm	18 pF	2-SMD	6	3.5	MHz Crystal	0.236 in	6 mm	0.138 in	3.5 mm	30 ppm	Fundamental	50 Ohms	20 ppm	85 °C	-40 C
Abracon LLC ABM7-10.000MHZ-D2Y-T	2-SMD No Lead	Surface Mount	10 MHz	0.055 in	1.4 mm	18 pF	2-SMD	6	3.5	MHz Crystal	0.236 in	6 mm	0.138 in	3.5 mm	30 ppm	Fundamental	60 Ohms	20 ppm	85 °C	-40 C
