MAX528 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

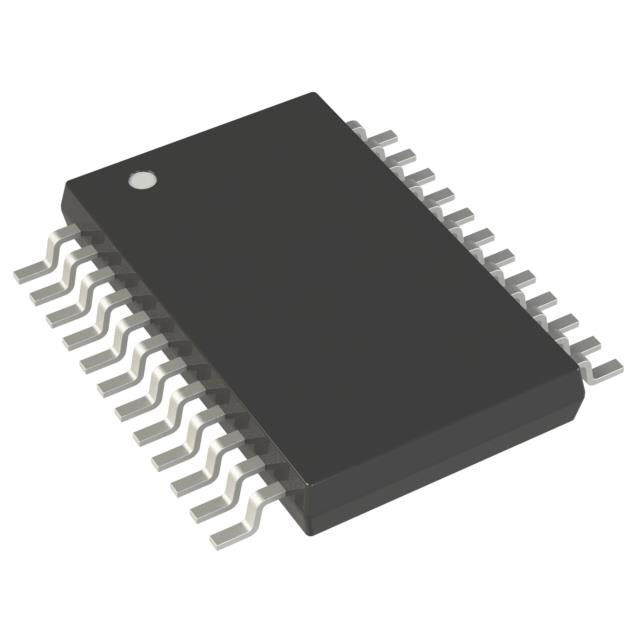

IC DAC 8BIT V-OUT 24SSOP

Part	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Number of Bits	Number of D/A Converters	Reference Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Architecture	Supplier Device Package	Data Interface	Mounting Type	INL/DNL (LSB)	Settling Time	Package / Case	Package / Case	Package / Case	Package / Case [custom]	Package / Case [custom]
Analog Devices Inc./Maxim Integrated MAX528CAG	10.8 V	16.5 V	8	8	External	70 °C	0 °C	Voltage - Buffered	-1.5 V 10.8 V	-5.5 V 16.5 V	R-2R	24-SSOP	SPI	Surface Mount	0.3 LSB	3 µs	24-SSOP	5.3 mm	0.209 in
Analog Devices Inc./Maxim Integrated MAX528CAG+	10.8 V	16.5 V	8	8	External	70 °C	0 °C	Voltage - Buffered	-1.5 V 10.8 V	-5.5 V 16.5 V	R-2R	24-SSOP	SPI	Surface Mount	0.3 LSB	3 µs	24-SSOP	5.3 mm	0.209 in
Analog Devices Inc./Maxim Integrated MAX528EWG	10.8 V	16.5 V	8	8	External	85 °C	-40 C	Voltage - Buffered	-1.5 V 10.8 V	-5.5 V 16.5 V	R-2R	24-SOIC	SPI	Surface Mount	0.3 LSB	3 µs	24-SOIC			7.5 mm	0.295 in
Analog Devices Inc./Maxim Integrated MAX528EWG+	10.8 V	16.5 V	8	8	External	85 °C	-40 C	Voltage - Buffered	-1.5 V 10.8 V	-5.5 V 16.5 V	R-2R	24-SOIC	SPI	Surface Mount	0.3 LSB	3 µs	24-SOIC			7.5 mm	0.295 in
Analog Devices Inc./Maxim Integrated MAX528CWG+	10.8 V	16.5 V	8	8	External	70 °C	0 °C	Voltage - Buffered	-1.5 V 10.8 V	-5.5 V 16.5 V	R-2R	24-SOIC	SPI	Surface Mount	0.3 LSB	3 µs	24-SOIC			7.5 mm	0.295 in
Analog Devices Inc./Maxim Integrated MAX528EAG+T	10.8 V	16.5 V	8	8	External	85 °C	-40 C	Voltage - Buffered	-1.5 V 10.8 V	-5.5 V 16.5 V	R-2R	24-SSOP	SPI	Surface Mount	0.3 LSB	3 µs	24-SSOP	5.3 mm	0.209 in
Analog Devices Inc./Maxim Integrated MAX528CPP+	10.8 V	16.5 V	8	8	External	70 °C	0 °C	Voltage - Buffered	-1.5 V 10.8 V	-5.5 V 16.5 V	R-2R	20-PDIP	SPI	Through Hole	0.3 LSB	3 µs	20-DIP (0.300" 7.62mm)
Analog Devices Inc./Maxim Integrated MAX528EAG+	10.8 V	16.5 V	8	8	External	85 °C	-40 C	Voltage - Buffered	-1.5 V 10.8 V	-5.5 V 16.5 V	R-2R	24-SSOP	SPI	Surface Mount	0.3 LSB	3 µs	24-SSOP	5.3 mm	0.209 in
Analog Devices Inc./Maxim Integrated MAX528EWG+T	10.8 V	16.5 V	8	8	External	85 °C	-40 C	Voltage - Buffered	-1.5 V 10.8 V	-5.5 V 16.5 V	R-2R	24-SOIC	SPI	Surface Mount	0.3 LSB	3 µs	24-SOIC			7.5 mm	0.295 in
Analog Devices Inc./Maxim Integrated MAX528EAG	10.8 V	16.5 V	8	8	External	85 °C	-40 C	Voltage - Buffered	-1.5 V 10.8 V	-5.5 V 16.5 V	R-2R	24-SSOP	SPI	Surface Mount	0.3 LSB	3 µs	24-SSOP	5.3 mm	0.209 in
