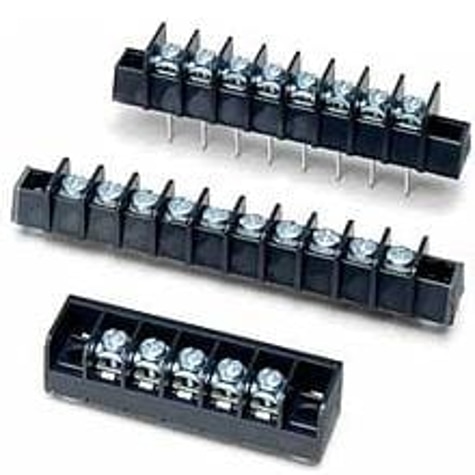

Barrier Terminal Blocks LP202211-NL
Barrier Terminal Blocks LP202211-NL
| Part | Bottom Termination | Terminal Block Type | Number of Wire Entries | Pitch | Pitch | Color | Top Termination | Barrier Type | Current Rating (Amps) | Number of Circuits | Voltage Rating | Wire Gauge [Max] | Wire Gauge [Min] | Number of Rows | Terminal Screw Finish | Material Flammability Rating | Terminal Screw Material | Material - Insulation | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Bottom Termination | Features | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | PC Pin | Barrier Block | 12 | 9.53 mm | 0.375 in | Black | Screws | 2 Wall (Dual) | 30 A | 12 | 150 VDC | 22 AWG | 12 AWG | 1 | ||||||||||
Eaton - Electronics Division | PC Pin | Barrier Block | 10 | 9.53 mm | 0.375 in | Black | Screws | 2 Wall (Dual) | 30 A | 10 | 150 VDC | 22 AWG | 12 AWG | 1 | Zinc | UL94 V-0 | Steel | Thermoplastic | Right Angle Through Hole | -40 C | 105 ░C | |||
 Eaton - Electronics Division | PC Pin | Barrier Block | 11 | 9.53 mm | 0.375 in | Black | Screws | 2 Wall (Dual) | 30 A | 11 | 150 VDC | 22 AWG | 12 AWG | 1 | Zinc | UL94 V-0 | Steel | Thermoplastic | Through Hole | -40 C | 105 ░C | |||
Eaton - Electronics Division | PC Pin | Barrier Block | 15 | 9.53 mm | 0.375 in | Black | Screws with Captive Plate | 2 Wall (Dual) | 30 A | 15 | 150 VDC | 22 AWG | 12 AWG | 1 | UL94 V-0 | Steel | Thermoplastic | Through Hole | -40 C | 105 ░C | ||||
Eaton - Electronics Division | Quick Connect | Barrier Block | 2 | 9.53 mm | 0.375 in | Black | Screws | 2 Wall (Dual) | 30 A | 2 | 150 VDC | 22 AWG | 12 AWG | 1 | Zinc | UL94 V-0 | Steel | Thermoplastic | Chassis Panel | -40 C | 105 ░C | 0.25 in | Flange | |
 Eaton - Electronics Division | PC Pin | Barrier Block | 9 | 9.53 mm | 0.375 in | Black | Screws | 2 Wall (Dual) | 30 A | 150 VDC | 22 AWG | 12 AWG | 1 | Zinc | UL94 V-0 | Steel | Thermoplastic | Through Hole | -40 C | 105 ░C | Flange | 9 | ||
Eaton - Electronics Division | PC Pin | Barrier Block | 8 | 9.53 mm | 0.375 in | Black | Screws | 2 Wall (Dual) | 30 A | 8 | 150 VDC | 22 AWG | 12 AWG | 1 | ||||||||||
Eaton - Electronics Division | Insulated Quick Connect | Barrier Block | 4 | 9.53 mm | 0.375 in | Black | Screws | 2 Wall (Dual) | 30 A | 4 | 150 VDC | 22 AWG | 12 AWG | 1 | 0.25 in | Flange | ||||||||
Eaton - Electronics Division | PC Pin | Barrier Block | 9 | 9.53 mm | 0.375 in | Black | Screws | 2 Wall (Dual) | 30 A | 150 VDC | 22 AWG | 12 AWG | 1 | 9 | ||||||||||
 Eaton - Electronics Division | PC Pin | Barrier Block | 10 | 9.53 mm | 0.375 in | Black | Screws with Quick Connect Tabs | 2 Wall (Dual) | 30 A | 10 | 150 VDC | 22 AWG | 12 AWG | 1 |
