929852 Series

Catalog

80001323676 929852-01-15-RB=30/2R/BM SKT/.100/STR/.125/30AVE/ROHS

Part	Insulation Material	Contact Shape	Contact Material	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Termination	Current Rating (Amps)	Contact Finish - Mating	Insulation Color	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Number of Positions Loaded	Voltage Rating	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Mounting Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Positions	Insulation Height	Insulation Height	Number of Positions [custom]
3M Electronic Specialty 929852-01-15-RB	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Square	Copper Alloy	UL94 V-0	0.1 "	2.54 mm	Solder	2 A	Gold	Black	0.125 in	3.18 mm	-40 C	105 ░C	2	All	1500 V	Push-Pull	0.1 in	2.54 mm	Forked	Through Hole	Receptacle	0.76 Ám	30 Áin	Tin	30	0.325 in	8.25 mm
3M Electronic Specialty 929852-01-18-10	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Square	Copper Alloy	UL94 V-0	0.1 "	2.54 mm	Solder	2 A	Gold	Black	0.125 in	3.18 mm	-40 C	105 ░C	2	All	1500 V	Push-Pull	0.1 in	2.54 mm	Forked	Through Hole	Receptacle	0.25 µm	10 µin	Tin-Lead	36	0.325 in	8.25 mm
3M Electronic Specialty 929852-01-32-RB	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Square	Copper Alloy	UL94 V-0	0.1 "	2.54 mm	Solder	2 A	Gold	Black	0.125 in	3.18 mm	-40 C	105 ░C	2	All	1500 V	Push-Pull	0.1 in	2.54 mm	Forked	Through Hole	Receptacle	0.76 Ám	30 Áin	Tin	64	0.325 in	8.25 mm
3M Electronic Specialty 929852-01-32-RA	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Square	Copper Alloy	UL94 V-0	0.1 "	2.54 mm	Solder	2 A	Gold	Black	0.125 in	3.18 mm	-40 C	105 ░C	2	All	1500 V	Push-Pull	0.1 in	2.54 mm	Forked	Through Hole	Receptacle	0.25 µm	10 µin	Tin	64	0.325 in	8.25 mm
3M Electronic Specialty 929852-01-13-RA	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Square	Copper Alloy	UL94 V-0	0.1 "	2.54 mm	Solder	2 A	Gold	Black	0.125 in	3.18 mm	-40 C	105 ░C	2	All	1500 V	Push-Pull	0.1 in	2.54 mm	Forked	Through Hole	Receptacle	0.25 µm	10 µin	Tin	26	0.325 in	8.25 mm
3M Electronic Specialty 929852-01-14-10	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Square	Copper Alloy	UL94 V-0	0.1 "	2.54 mm	Solder	2 A	Gold	Black	0.125 in	3.18 mm	-40 C	105 ░C	2	All	1500 V	Push-Pull	0.1 in	2.54 mm	Forked	Through Hole	Receptacle	0.25 µm	10 µin	Tin-Lead	28	0.325 in	8.25 mm
3M Electronic Specialty 929852-01-17-RA	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Square	Copper Alloy	UL94 V-0	0.1 "	2.54 mm	Solder	2 A	Gold	Black	0.125 in	3.18 mm	-40 C	105 ░C	2	All	1500 V	Push-Pull	0.1 in	2.54 mm	Forked	Through Hole	Receptacle	0.25 µm	10 µin	Tin		0.325 in	8.25 mm	34
3M Electronic Specialty 929852-01-29-10	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Square	Copper Alloy	UL94 V-0	0.1 "	2.54 mm	Solder	2 A	Gold	Black	0.125 in	3.18 mm	-40 C	105 ░C	2	All	1500 V	Push-Pull	0.1 in	2.54 mm	Forked	Through Hole	Receptacle	0.25 µm	10 µin	Tin-Lead	58	0.325 in	8.25 mm
3M Electronic Specialty 929852-01-40-30	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Square	Copper Alloy	UL94 V-0	0.1 "	2.54 mm	Solder	2 A	Gold	Black	0.125 in	3.18 mm	-40 C	105 ░C	2	All	1500 V	Push-Pull	0.1 in	2.54 mm	Forked	Through Hole	Receptacle	0.76 Ám	30 Áin	Tin-Lead	80	0.325 in	8.25 mm

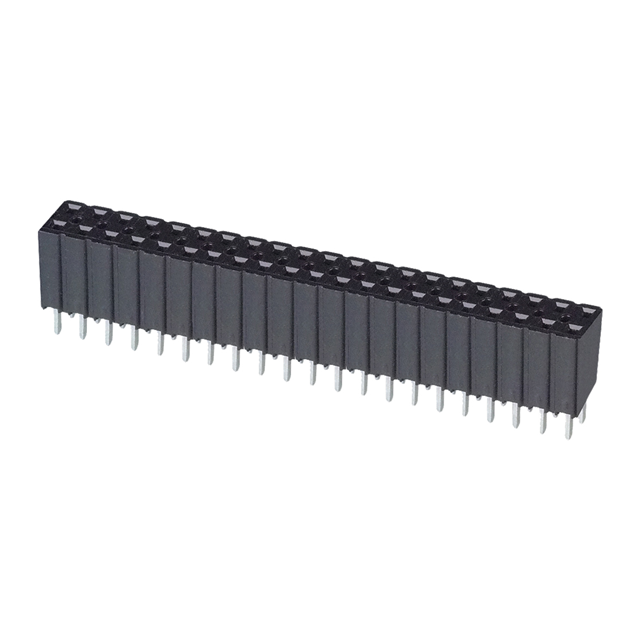

3M Electronic Specialty 929852-01-21-RA	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Square	Copper Alloy	UL94 V-0	0.1 "	2.54 mm	Solder	2 A	Gold	Black	0.125 in	3.18 mm	-40 C	105 ░C	2	All	1500 V	Push-Pull	0.1 in	2.54 mm	Forked	Through Hole	Receptacle	0.25 µm	10 µin	Tin	42	0.325 in	8.25 mm
