SMS9RE Series

Catalog

CONN HEADER VERT 9POS 5.08MM

Part	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Finish - Post	Insulation Material	Contact Finish Thickness - Mating	Contact Shape	Insulation Color	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Features	Ingress Protection	Material Flammability Rating	Contact Length - Post	Shrouding	Overall Contact Length	Number of Positions	Contact Finish - Mating	Insulation Height	Pitch - Mating	Contact Length - Mating	Connector Type	Style	Fastening Type	Current Rating	Termination	Contact Type	Mounting Type	Number of Rows	Row Spacing - Mating
Amphenol Aerospace Operations SMS9RE-4TR29	118.1 µin	All	Tin	Glass Filled Polyester	118.1 µin	Circular	Black	125 °C	-55 °C	Copper Alloy	Mounting Flange	IP40	UL94 V-0	0.173 in	Unshrouded	0.972 in	9	Tin	0.52 in	0.2 in	0.28 in	Header	Board Cable/Wire	Locking Ramp	5 A	Solder	Male Pin	Through Hole	3	0.2 in
Amphenol Aerospace Operations SMS9RE3TR29	118.1 µin	All	Tin	Glass Filled Thermoplastic	118.1 µin	Circular	Black	105 °C	-55 °C	Copper Alloy	Mounting Flange	IP40	UL94 V-0	0.173 in			9	Tin	0.528 in	0.2 in		Receptacle	Board Board or Cable	Locking Ramp	5 A	Solder	Female Socket	Through Hole	3	0.2 in

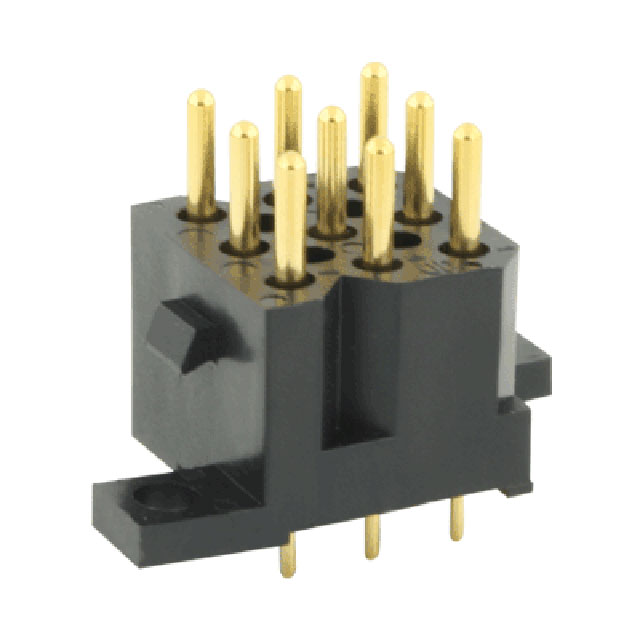

Amphenol Aerospace Operations SMS9RE4S6		All	Tin	Glass Filled Polyester	16 µin	Circular	Black	125 °C	-55 °C	Copper Alloy	Mounting Flange	IP40	UL94 V-0	0.173 in	Unshrouded	0.972 in	9	Gold	0.52 in	0.2 in	0.28 in	Header	Board Cable/Wire	Locking Ramp	5 A	Solder	Male Pin	Through Hole	3	0.2 in
