UNO-PS Series
Manufacturer: Phoenix Contact
Beta
⌘K

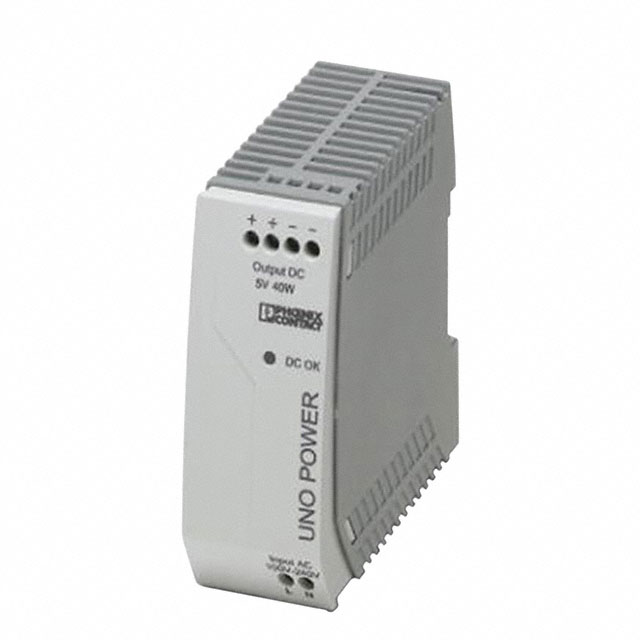

DIN RAIL POWER SUPPLIES UNO-PS/1AC/ 5DC/ 40W PRIM SWCH SNGL PHASE
| Part | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Efficiency | Voltage - Isolation | Number of Outputs | Voltage - Output 1 | Current - Output (Max) [Max] | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Power (Watts) | Features | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | ITE (Commercial) | 35 mm | 84 mm | 1.38 in | 90 mm | 3.31 " | 3.54 " | 70 °C | -25 °C | CB cUL cULus cUR cURus UL UR | 85 % | 4000 V | 1 | 5 V | 8 A | 264 VAC | 85 VAC | 40 W | IP20 Universal Input | AC |
