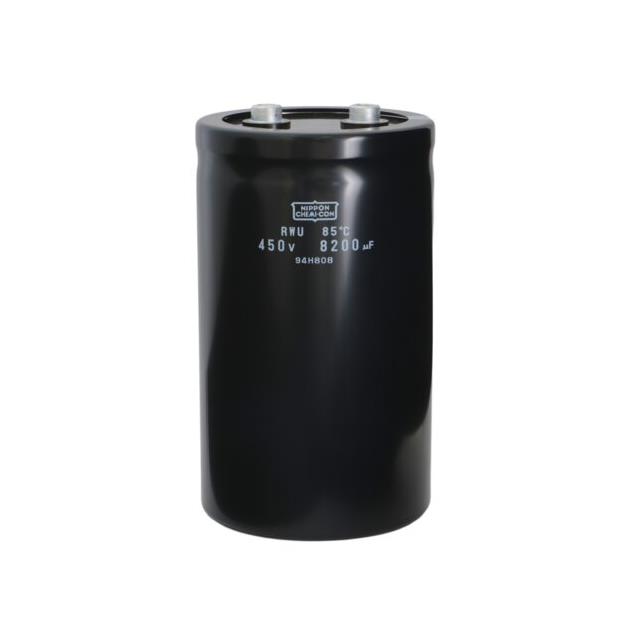

RWU Series
Manufacturer: Chemi-Con
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - SCREW TERMINAL
| Part | Size / Dimension [diameter] | Size / Dimension [diameter] | Applications | Lifetime @ Temp. | Ripple Current @ Low Frequency | Polarization | Capacitance | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Lead Spacing | Lead Spacing | Ripple Current @ High Frequency | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Voltage - Rated | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Chemi-Con | 63.5 mm | 2.5 in | General Purpose | 2000 Hrs | 7.2 A | Polar | 3.3 mF | 20 % | 85 °C | -40 C | 1.102 in | 28 mm | 8.64 A | Radial Can - Screw Terminals | 84 mm | 3.307 " | 400 V | Chassis Mount |
 Chemi-Con | 63.5 mm | 2.5 in | General Purpose | 2000 Hrs | 11.7 A | Polar | 6800 µF | 20 % | 85 °C | -40 C | 1.102 in | 28 mm | Radial Can - Screw Terminals | 134 mm | 5.276 in | 400 V | Chassis Mount |
