THE TLE94112EL IS A PROTECTED TWELVE-FOLD HALF-BRIDGE DRIVER DESIGNED ESPECIALLY FOR AUTOMOTIVE MOTION CONTROL APPLICATIONS SUCH AS HEATING, VENTILATION AND AIR CONDITIONING (HVAC) FLAP DC MOTOR CONTROL
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Rds On (Typ) [custom] | Rds On (Typ) [custom] | Current - Peak Output | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Load [Max] | Voltage - Load [Min] | Interface | Technology | Output Configuration | Fault Protection | Load Type | Current - Output / Channel | Package / Case | Applications | Supplier Device Package | Features | Function | Utilized IC / Part | Contents | Platform | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 5.5 V | 3 V | Surface Mount | 850 mOhm | 850 mOhm | 2 A | -40 °C | 150 °C | 20 V | 5.5 V | SPI | Power MOSFET | Half Bridge (12) | Over Temperature Short Circuit UVLO | Inductive | 500 mA | 24-LSSOP (0.154" 3.90mm Width) Exposed Pad | AC Motors DC Motors General Purpose | |||||||
 INFINEON | 5.5 V | 3 V | Surface Mount | 1.3 Ohm | 1.3 Ohm | -40 °C | 150 °C | 5.5 V | 3 V | Logic PWM SPI | Half Bridge (12) | Current Limiting Over Current Over Temperature Short Circuit | Capacitive Inductive Resistive | 24-TSSOP (0.154" 3.90mm Width) Exposed Pad | DC Motors General Purpose | PG-TSDSO-24 | Charge Pump | ||||||||

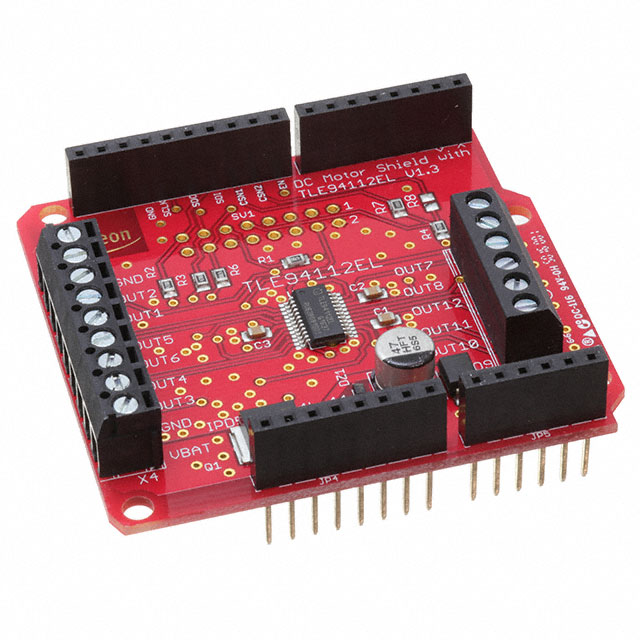

 INFINEON | Motor Controller/Driver | TLE94112EL | Board(s) | Arduino | Power Management |
