1EDF5673 Series

Manufacturer: INFINEON

Catalog

DGT ISO 1.5KV 1CH GT DVR TFLGA13

Part	Pulse Width Distortion (Max)	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Package / Case	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Supplier Device Package	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Common Mode Transient Immunity (Min) [Min]	Voltage - Isolation	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Channels [custom]	Mounting Type	Technology	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case

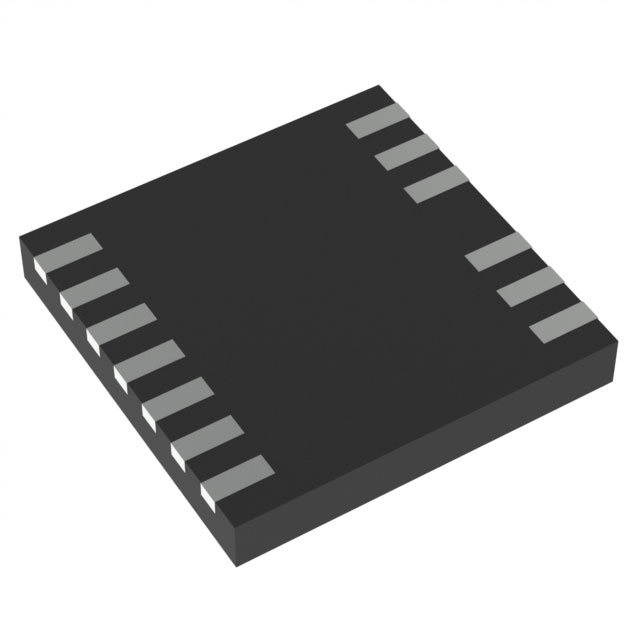

INFINEON 1EDF5673KXUMA1	18 ns	3.47 V	3.13 V	13-TFLGA	8 A	4 A	PG-TFLGA-13-1	44 ns	44 ns	150 kV/µs	1.5 kV	6.5 ns	4.5 ns	1	Surface Mount	Magnetic Coupling	CQC CSA UL VDE	85 °C	-40 C

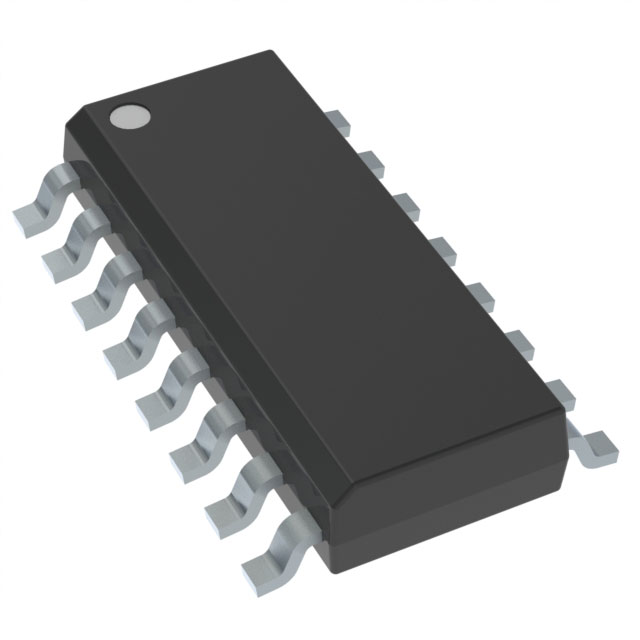

INFINEON 1EDF5673FXUMA1	18 ns	3.47 V	3.13 V	16-SOIC	8 A	4 A	PG-DSO-16-11	44 ns	44 ns	150 kV/µs	1.5 kV	6.5 ns	4.5 ns	1	Surface Mount	Magnetic Coupling	CQC CSA UL VDE	85 °C	-40 C	0.154 in 3.9 mm
