EKZE350E Series

Manufacturer: Chemi-Con

Catalog

CAP ALUM 680UF 20% 35V RADIAL TH

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Ripple Current @ Low Frequency	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Impedance	Package / Case	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Capacitance	Lifetime @ Temp.	Voltage - Rated	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKZE350ELL681MK20S	0.846 "	21.5 mm	General Purpose	-40 C	105 ░C	20 %	1.416 A	Through Hole	0.492 in	12.5 mm	21 mOhms	Can Radial	2.36 A	0.197 "	5 mm	680 µF	5000 Hrs	35 V	Polar
Chemi-Con EKZE350ETD122MK30S	1.24 in	31.5 mm	General Purpose	-40 C	105 ░C	20 %	1.974 A	Through Hole	0.492 in	12.5 mm	16 mOhms	Can Radial	3.29 A	0.197 "	5 mm	1.2 mF	5000 Hrs	35 V	Polar

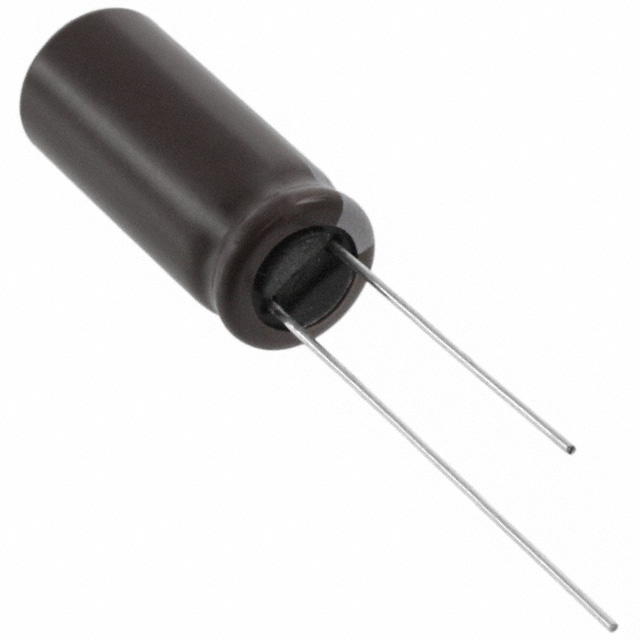

Chemi-Con EKZE350ELL561MJ25S			General Purpose	-40 C	105 ░C	20 %		Through Hole	0.394 in	10 mm	22 mOhms	Can Radial	2.15 A	0.197 "	5 mm	560 µF	4000 Hrs	35 V	Polar	26.5 mm	1.043 in
Chemi-Con EKZE350ELL331MJ16S			General Purpose	-40 C	105 ░C	20 %	715 mA	Through Hole	0.394 in	10 mm	38 mOhms	Can Radial	1.43 A	0.197 "	5 mm	330 µF	4000 Hrs	35 V	Polar	0.689 in		17.5 mm
Chemi-Con EKZE350ETD561MJ25S			General Purpose	-40 C	105 ░C	20 %		Through Hole	0.394 in	10 mm	22 mOhms	Can Radial	2.15 A	0.197 "	5 mm	560 µF	4000 Hrs	35 V	Polar	26.5 mm	1.043 in
Chemi-Con EKZE350EMC471MJ20S	0.846 "	21.5 mm	General Purpose	-40 C	105 ░C	20 %	910 mA	Through Hole	0.394 in	10 mm	23 mOhms	Can Radial	1.82 A	0.197 "	5 mm	470 µF	4000 Hrs	35 V	Polar
Chemi-Con EKZE350EC5182ML25S			General Purpose	-40 C	105 ░C	20 %	2.076 A	Through Hole	0.63 in	16 mm	16 mOhms	Can Radial	3.46 A	0.295 in	7.5 mm	1800 µF	5000 Hrs	35 V	Polar	26.5 mm	1.043 in
Chemi-Con EKZE350ELL102MK25S			General Purpose	-40 C	105 ░C	20 %	1.662 A	Through Hole	0.492 in	12.5 mm	18 mOhms	Can Radial	2.77 A	0.197 "	5 mm	1000 µF	5000 Hrs	35 V	Polar	26.5 mm	1.043 in
Chemi-Con EKZE350ETD221MH15D			General Purpose	-40 C	105 ░C	20 %	120 Hz 497.5 mA	Through Hole	0.315 in	8 mm	56 mOhms	Can Radial	995 mA	0.138 in	3.5 mm	220 µF	3000 Hrs	35 V	Polar	16.5 mm	0.65 in
Chemi-Con EKZE350EC3152MK35S			General Purpose	-40 C	105 ░C	20 %	2.04 A	Through Hole	0.492 in	12.5 mm	15 mOhms	Can Radial	3.4 A	0.197 "	5 mm	1.5 mF	5000 Hrs	35 V	Polar	36.5 mm	1.437 "
