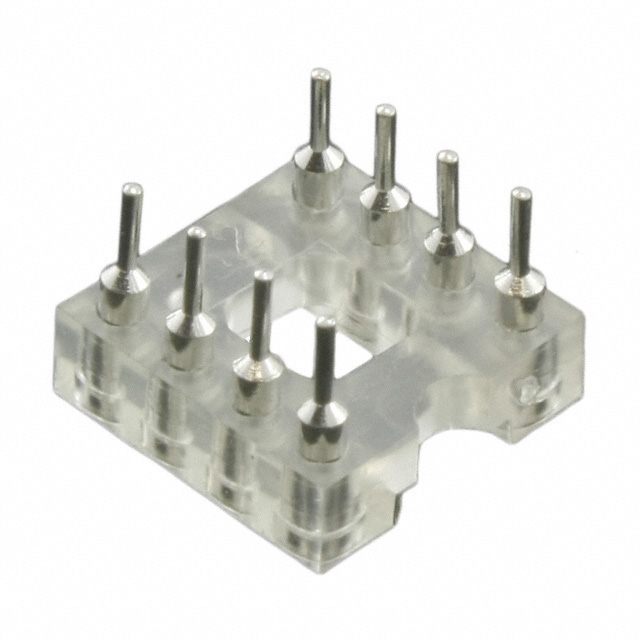

WMS-08 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
CONN IC DIP SOCKET 8POS GOLD
| Part | Current Rating (Amps) | Material Flammability Rating | Contact Resistance | Contact Material - Post [custom] | Contact Material - Mating | Pitch - Mating | Pitch - Mating | Type | Type | Type | Contact Finish - Mating | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Post | Pitch - Post | Termination | Contact Finish Thickness - Mating | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Features | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 3 A | UL94 V-0 | 4 mOhm | Brass | Beryllium Copper | 0.1 " | 2.54 mm | 7.62 mm | 0.3 in | DIP | Gold | Through Hole | 200 µin | 5.08 µm | 0.1 in | 2.54 mm | Solder | Flash | Tin | -40 C | 105 ░C | Open Frame Wash Away | 8 | 2 | 4 |
