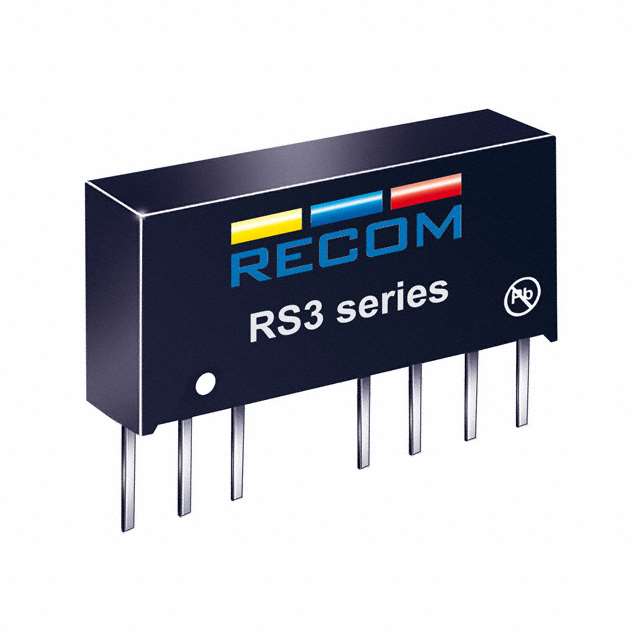

RS3-S_D(Z) Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 3W DC/DC 3KV REG 2:1 9-18VIN 9VOUT

...

Part	Package / Case	Voltage - Isolation	Features	Voltage - Input (Max) [Max]	Number of Outputs	Current - Output (Max) [Max]	Voltage - Output 1	Control Features	Mounting Type	Type	Voltage - Input (Min) [Min]	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Efficiency	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Recom Power RS3-1209S/H3	8-SIP Module 7 Leads	3000 V	Remote On/Off SCP	18 V	1	333 mA	9 V	Active Low Enable	Through Hole	Isolated Module	9 V	ITE (Commercial) Medical	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	71 °C	-40 C	3 W	80 %

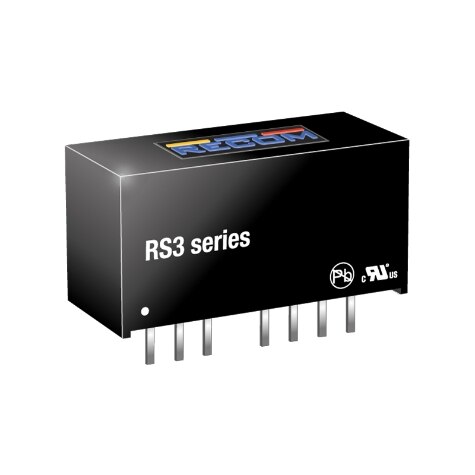

Recom Power RS3-2415D/H3	8-SIP Module 7 Leads	3000 V	Remote On/Off SCP	36 V	2		15 V	Active Low Enable	Through Hole	Isolated Module	18 V	ITE (Commercial) Medical	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	71 °C	-40 C	3 W	83 %	-15 V	100 mA	100 mA
Recom Power RS3-0512D	8-SIP Module 7 Leads	1000 V	Remote On/Off SCP	9 V	2		12 V	Active Low Enable	Through Hole	Isolated Module	4.5 V	ITE (Commercial)	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	71 °C	-40 C	3 W	83 %	-12 V			125 mA
Recom Power RS3-0512S	8-SIP Module 7 Leads	1000 V	Remote On/Off SCP	9 V	1	250 mA	12 V	Active Low Enable	Through Hole	Isolated Module	4.5 V	ITE (Commercial)	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	71 °C	-40 C	3 W	81 %
Recom Power RS3-2409DZ/H3	8-SIP Module 7 Leads	3000 V	Remote On/Off SCP	27 V	2		9 V	Active Low Enable	Through Hole	Isolated Module	9 V	ITE (Commercial) Medical	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	71 °C	-40 C	3 W	79 %	-9 V			167 mA
Recom Power RS3-4812S/H3	8-SIP Module 7 Leads	3000 V	Remote On/Off SCP	72 V	1	250 mA	12 V	Active Low Enable	Through Hole	Isolated Module	36 V	ITE (Commercial) Medical	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	71 °C	-40 C	3 W	83 %
Recom Power RS3-243.3SZ/H3	8-SIP Module 7 Leads	3000 V	Remote On/Off SCP	27 V	1	600 mA	3.3 V	Active Low Enable	Through Hole	Isolated Module	9 V	ITE (Commercial) Medical	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	71 °C	-40 C	3 W	73 %
Recom Power RS3-2415SZ/H2	8-SIP Module 7 Leads	2000 V	Remote On/Off SCP	27 V	1	200 mA	15 V	Active Low Enable	Through Hole	Isolated Module	9 V	ITE (Commercial) Medical	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	71 °C	-40 C	3 W	80 %
Recom Power RS3-2415DZ/H2	8-SIP Module 7 Leads	2000 V	Remote On/Off SCP	27 V	2		15 V	Active Low Enable	Through Hole	Isolated Module	9 V	ITE (Commercial) Medical	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	71 °C	-40 C	3 W	80 %	-15 V	100 mA	100 mA
Recom Power RS3-1212D	8-SIP Module 7 Leads	1000 V	Remote On/Off SCP	18 V	2		12 V	Active Low Enable	Through Hole	Isolated Module	9 V	ITE (Commercial)	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	71 °C	-40 C	3 W	83 %	-12 V			125 mA
