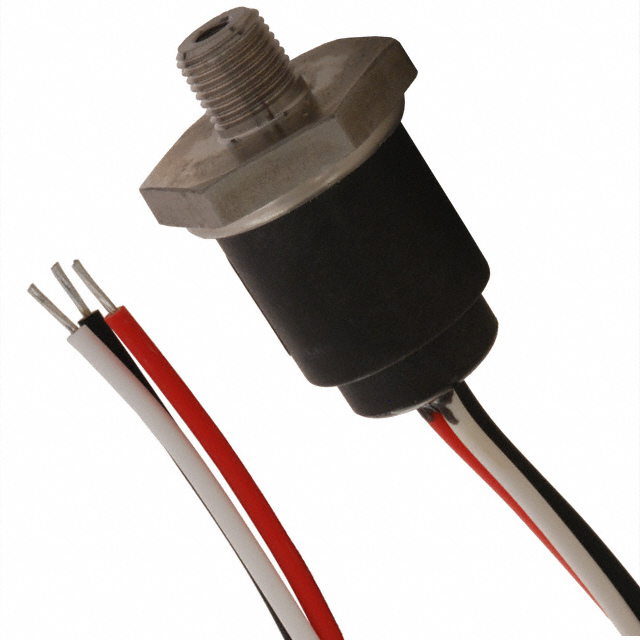

MLH050 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
PRESSURE SENSOR
| Part | Port Size | Output Type | Applications | Pressure Type | Maximum Pressure [Max] | Maximum Pressure [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Operating Pressure | Operating Pressure | Accuracy | Port Style | Output [Max] | Output [Min] | Package / Case | Termination Style | Port Size | Port Size [custom] | Port Size [x] | Port Size [x] | Port Size [custom] | Port Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | |||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions | Male - M20 x 1.5 | Analog Current | Industrial Automation | Vented Gauge | 1034.21 kPa | 150 PSI | 30 VDC | 9.5 V | Amplified Output Temperature Compensated | 125 °C | -40 °C | 50 PSI | 344.74 kPa | 0.25 % | Threaded | 20 mA | 4 mA | Cylinder Metal | |||||||
Honeywell Sensing and Productivity Solutions | M12 Male | Analog Voltage | Industrial Automation | Vented Gauge | 1034.21 kPa | 150 PSI | 6 V | 5 V | Amplified Output Temperature Compensated | 125 °C | -40 °C | 50 PSI | 344.74 kPa | 0.25 % | Threaded | 4.5 V | 0.5 V | Cylinder Metal | Packard Metripak 150 | 1.5 | |||||
Honeywell Sensing and Productivity Solutions | |||||||||||||||||||||||||
 Honeywell Sensing and Productivity Solutions | Analog Voltage | Industrial Automation | Vented Gauge | 1034.21 kPa | 150 PSI | 30 VDC | 7 V | Amplified Output Temperature Compensated | 125 °C | -40 °C | 50 PSI | 344.74 kPa | 0.5 % | Threaded | 4.5 V | 0.5 V | Cylinder Metal | Packard Metripak 150 | NPT | 0.25 " | 6.35 mm | Male | |||
 Honeywell Sensing and Productivity Solutions | Male | Analog Voltage | Industrial Automation | Vented Gauge | 1034.21 kPa | 150 PSI | 6 V | 5 V | Amplified Output Temperature Compensated | 125 °C | -40 °C | 50 PSI | 344.74 kPa | 0.5 % | Threaded | 4.5 V | 0.5 V | Cylinder Metal | Flying Lead | 0.125 " | 3.18 mm | ||||
Honeywell Sensing and Productivity Solutions | Male | Analog Voltage | Industrial Automation | Vented Gauge | 1034.21 kPa | 150 PSI | 6 V | 5 V | Amplified Output Temperature Compensated | 125 °C | -40 °C | 50 PSI | 344.74 kPa | 0.25 % | Threaded | 4.5 V | 0.5 V | Cylinder Metal | Packard Metripak 150 | 6.35 mm |
