ERA.1S Series

Manufacturer: LEMO

Catalog

CONN CIRC RCPT 2P GOLD SLDR CUP

Part	Insert Material	Connector Type	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Contact Finish - Mating	Mounting Type	Material Flammability Rating	Current Rating (Amps)	Mounting Feature	Fastening Type	Number of Positions	Primary Material	Shell Material	Ingress Protection	Shielding	Orientation	Contact Material	Color	Termination	Body Material	Body Finish	Center Contact Plating	Includes	Mating Cycles	Dielectric Material	Impedance	Shield Termination	Number of Ports	Connector Style	Cable Group	Housing Color	Center Contact Material	Contact Termination

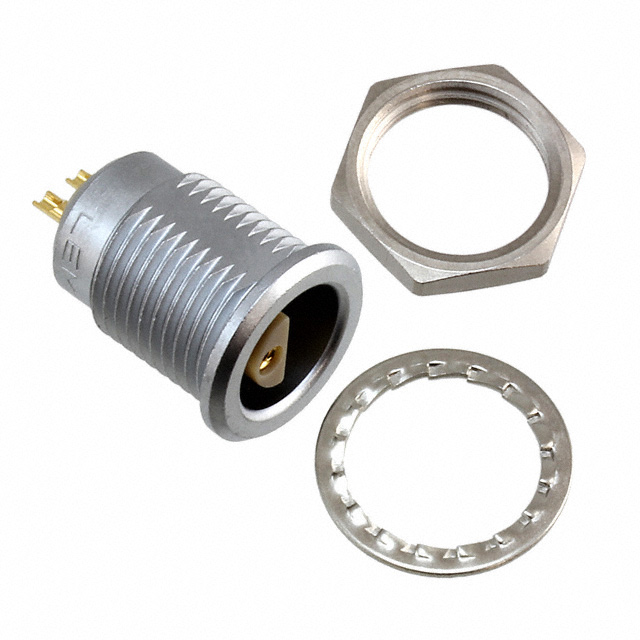

LEMO ERA.1S.302.CLL	Polyetheretherketone (PEEK)	Receptacle Female Sockets and Male Pins	302	-55 C	250 °C	Chrome	Gold	Panel Mount	UL94 V-0	15 A	Bulkhead - Rear Side Nut	Push-Pull	2	Metal	Brass	IP50 - Dust Protected	Shielded	Keyed	Brass Bronze	Silver

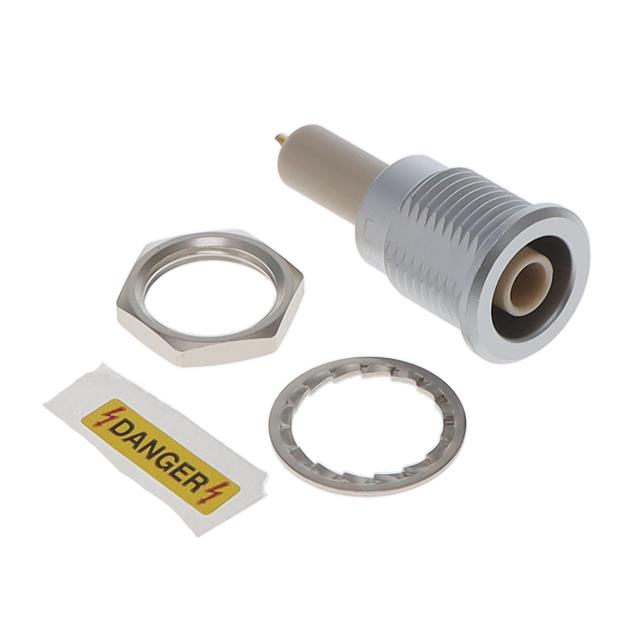

LEMO ERA.1S.405.CLL	Polyetheretherketone (PEEK)	Receptacle Female Sockets	405	-55 C	250 °C	Chrome	Gold	Panel Mount	UL94 V-0	8 A	Bulkhead - Rear Side Nut	Push-Pull	1	Metal	Brass	IP50 - Dust Protected	Shielded	Keyed	Bronze	Silver
LEMO ERA.1S.302.CYM	Polyetheretherketone (PEEK)	Receptacle Female Sockets and Male Pins	302	-55 C	250 °C	Chrome	Gold	Panel Mount	UL94 V-0	15 A	Bulkhead - Rear Side Nut	Push-Pull	2	Metal	Brass	IP50 - Dust Protected	Shielded	Keyed	Brass Bronze	Silver	Crimp
LEMO ERA.1S.250.CLL		Receptacle Female Socket		-55 C	250 °C			Panel Mount			Bulkhead - Rear Side Nut	Push-Pull				IP50 - Dust Protected						Brass	Chrome	Gold	1 Connector 1 Lockwasher 1 Nut	1000	Polyetheretherketone (PEEK)	50 Ohms	Solder	1	Coaxial	174 174A 178B 188A 196A 316B RG-122	Silver	Beryllium Copper	Solder Cup

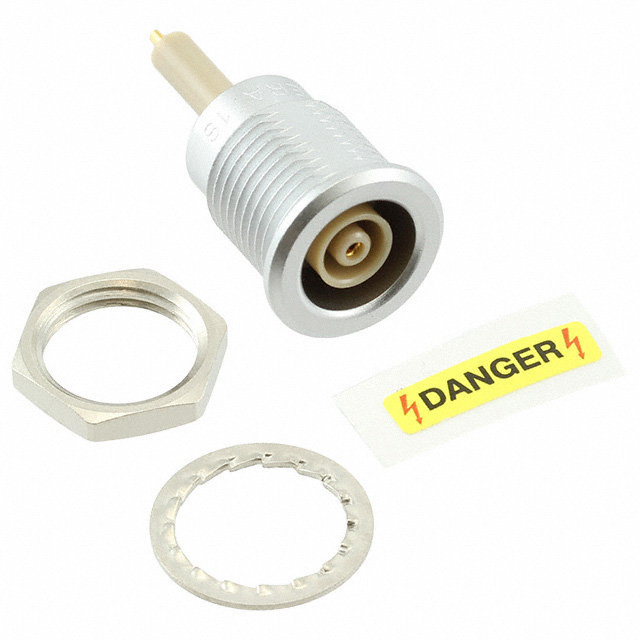

LEMO ERA.1S.408.CLL	Polyetheretherketone (PEEK)	Receptacle Female Sockets	408	-55 C	250 °C	Chrome	Gold	Panel Mount	UL94 V-0	6 A	Bulkhead - Rear Side Nut	Push-Pull	1	Metal	Brass	IP50 - Dust Protected	Shielded	Keyed	Bronze	Silver
LEMO ERA.1S.306.KLL	Polyetheretherketone (PEEK)	Receptacle Female Sockets and Male Pins	306	-55 C	250 °C		Gold	Panel Mount	UL94 V-0	7 A	Bulkhead - Rear Side Nut	Push-Pull	6	Metal	Brass	IP50 - Dust Protected	Shielded	Keyed	Brass Bronze	Black

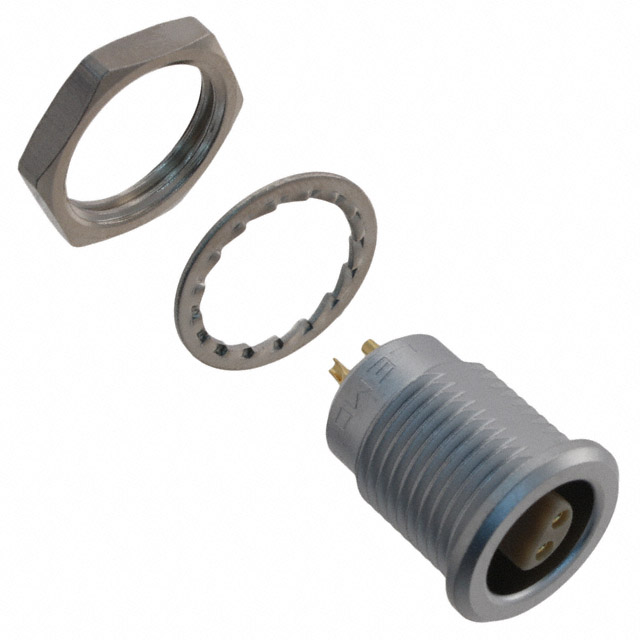

LEMO ERA.1S.303.CLL	Polyetheretherketone (PEEK)	Receptacle Female Sockets and Male Pins	303	-55 C	250 °C	Chrome	Gold	Panel Mount	UL94 V-0	10 A	Bulkhead - Rear Side Nut	Push-Pull		Metal	Brass	IP50 - Dust Protected	Shielded	Keyed	Brass Bronze	Silver
LEMO ERA.1S.130.CTL	Polytetrafluoroethylene (PTFE)	Receptacle Female Sockets	130	-55 C	250 °C	Chrome	Gold	Panel Mount		25 A	Bulkhead - Rear Side Nut	Push-Pull	1	Metal	Brass	IP50 - Dust Protected	Shielded	Keyed	Bronze	Silver

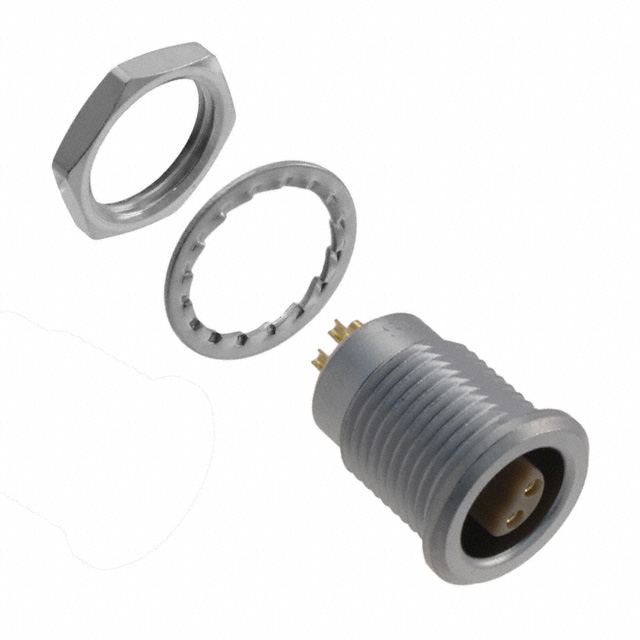

LEMO ERA.1S.304.CLL	Polyetheretherketone (PEEK)	Receptacle Female Sockets and Male Pins	304	-55 C	250 °C	Chrome	Gold	Panel Mount	UL94 V-0	10 A	Bulkhead - Rear Side Nut	Push-Pull	4	Metal	Brass	IP50 - Dust Protected	Shielded	Keyed	Brass Bronze	Silver

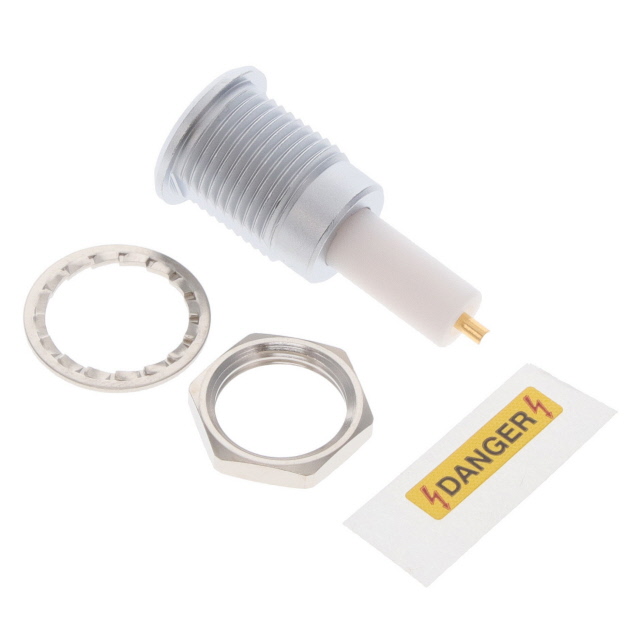

LEMO ERA.1S.405.CTL	Polytetrafluoroethylene (PTFE)	Receptacle Female Sockets	405	-55 C	250 °C	Chrome	Gold	Panel Mount		8 A	Bulkhead - Rear Side Nut	Push-Pull	1	Metal	Brass	IP50 - Dust Protected	Shielded	Keyed	Bronze	Silver
